LC-9037/9036

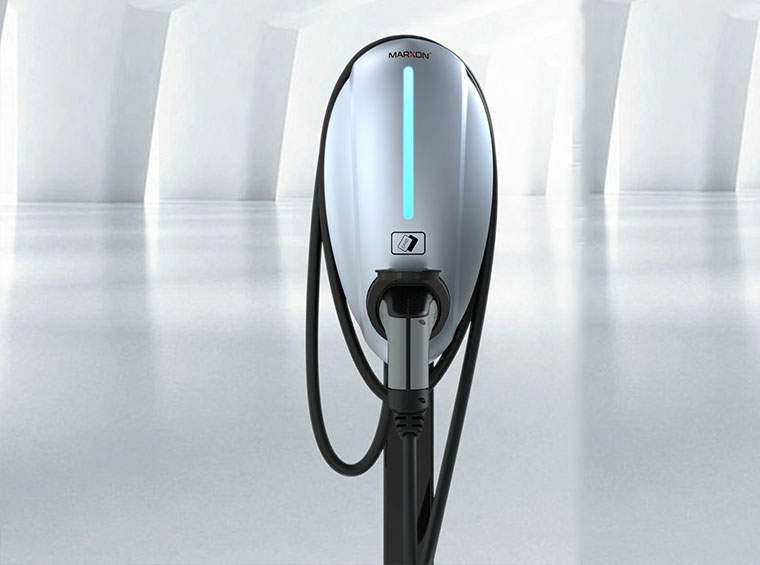

MIRA EV AV Charger
The correct choice for your business and homecharging. With latest design can be compatible with allEV cars.
lts fashion design makes it attractive whilefunctionality and also makes charging your EV atwork place or home a breeze with the reliable. TheInterstellar is one smart AC charger designed tochange your life.
Product parameters
Parameters
| Name | MKS-9037 | MKS-9036 |
| Rated Power | 7KW Socket Version | 7KW Cable Version |
| Weight | 2.35KG | 2.5KG |
| Protection Rating | IP55/IK09 | IP65/IK09 |
| Dimensions | W200*D145*H385mm | |
| Input/output current | 32A | |
| Input/output voltage | Single-Phase 230V | |
| Frequency | 50Hz | |
| Standby power consumption | ≤3W | |
| Connector type | IEC Type 2 | |
| Emergency stop | Support | |
| RCD | TypeA 30mA+DC 6mA | |
| Charging status information | LED | |
| Metering | Integrated into the control board (optional] | |
| Operation temperature | -30°C+55°C | |
| Relative humidity | 5%—95% | |
| Operation altitude | <2000m | |
| Installation method | Wall-mounted/Floor-mounted | |
| Protection function | Over current protection, over/under voltage protection,lighting protection, short circuit protection, etc. | |
| EMC | Class B | |
| Certification | CE、TR25、RCM、TUV mark | |
| Function extension | APP,RS485,DLM | |
| Earth fault protection | Support | |
| Supply system | TN-CS, TN-C, TN-S, TT | |
| Connectivity | Wi-Fi, Bluetooth, 4G | |
| Cable type(socket/connector) | Both | |
