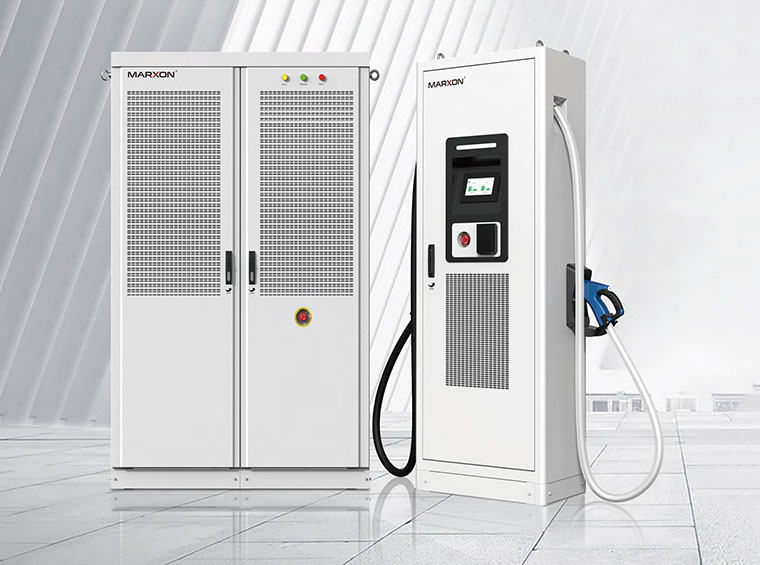

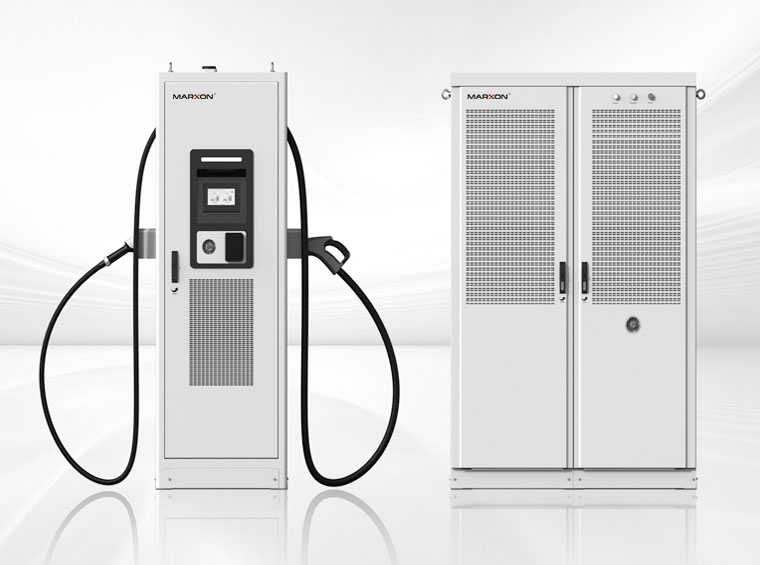

MARXON 480kW distributed charger includes power bank and user terminal, one power bank can support up to 3 userterminals with 6 charqing connectors.
The distributed charger uses intelligent distribution algorithm to dynamically allocate the power according to different needs of vehicles.
Low noise

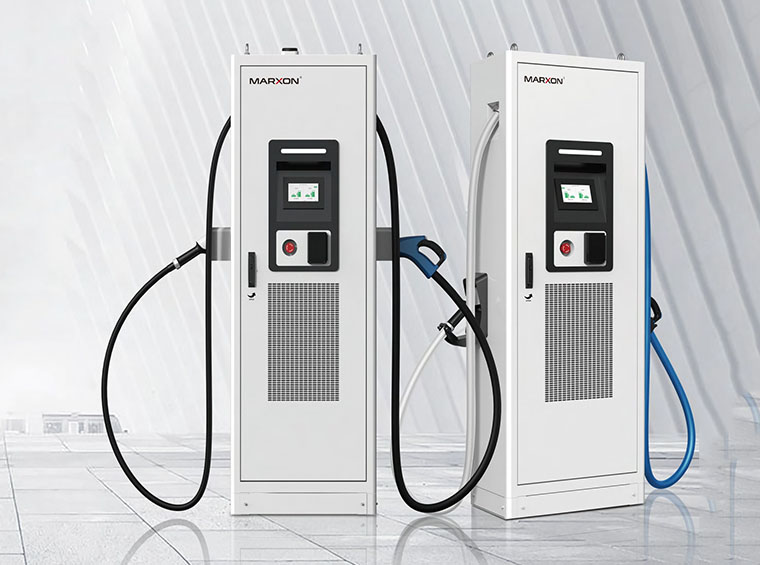

User terminal suitable for noise-sensitive areas such as hospital, hotel, and residential areas.
High power capability
Each bank up to 480kW output, support 3
charging stations with 6 connectors.
Fast charging
Maximum charging current up to 500A 10 minutes charging, 400 kilometers driving.
Easy maintenance
Only need to clean dust in the power bank which makes the distributed charger easy to maintenance.
Flexible configuration
Upgradable user terminal and power bank Connector can be transformed from air-cooling to liquid cooling and modules can be added to360kW power bank to expand capacity to 480kW.
Intelligent distribution algorithm
Multiple user terminals intelligently sharing power of the same power bank and each vehicle can be charged at “maximum" power.
| General+A1:B31 | |
| Parameter | Category |
| IP rating | IP55 |
| IK rating | IK10 |
| Protection | Input over voltage protection, output under voltage protection,short circuit protection, over current protection, over temperatureprotection, surge protection, emergency stop protection, etc. |
| Ambient temperature | -25~+65 |
| Rh | 5%~95% |
| Altitude | ≤2000m |
| Communication | LAN/4G/Wifi |
| Protocol | OCPP1.6J (upgradable) |
| Indication | LED & User interface on user unit |
| Compliance and certification | IEC 61851， ISO 15118。 Comply with CE and UKCA |
| EMC | Class A |
| Protection | Undervoltage protection, Overvoltage protection, DC Overcurrentprotection, Over-temperature protection, Surge Protection Device,Emergency Stop Protection |
| Power bank | |
| Category | Parameter |
| Name | MKS-9032 |
| Input voltage | 400Vac±10% |
| Input type | 3P+N+PE |
| Frequency | 45~65Hz |
| Power factor | 0.99 |
| Peak efficiency | 96% |
| Power output | Flexible power output, Max output 480kW |
| Maximum output current | 1600A |
| Dimension | W1400*D1000*H2100mm |
| Weight | ≤850kg |
| User unit | |
| Category | Parameter |
| Output voltage | 200~1000V |
| Maximum no. of connector | 6 |
| Maximum current per connector | CCS2:500A(Liquid cooled)/200A(convention cooled)CHAdeMO:200A |
| Cable length | 5m(convention cooled) |
| Load sharing | Flexible load distribution according to user requirements |
| Payment method | Visa/Master/RFID/Apple Pay etc. |
| Dimension | W750*D400*H2100mm |
| Weight | ≤225kg |
