LC-9031

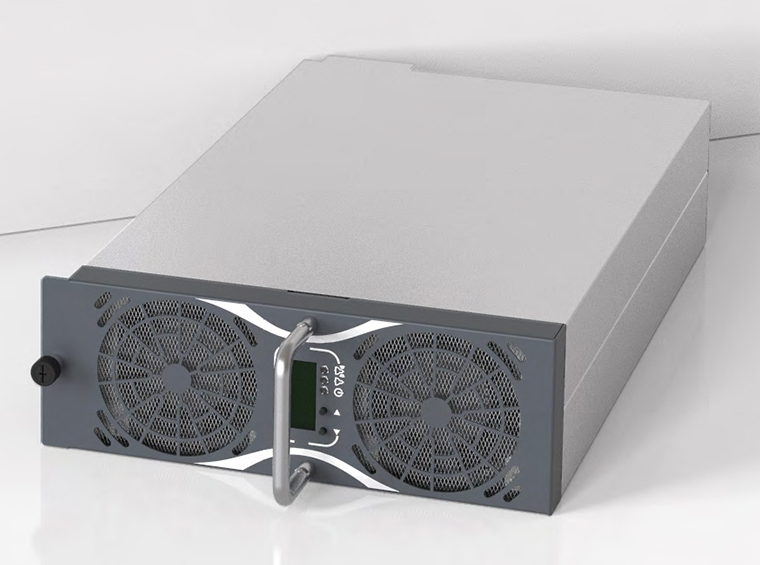

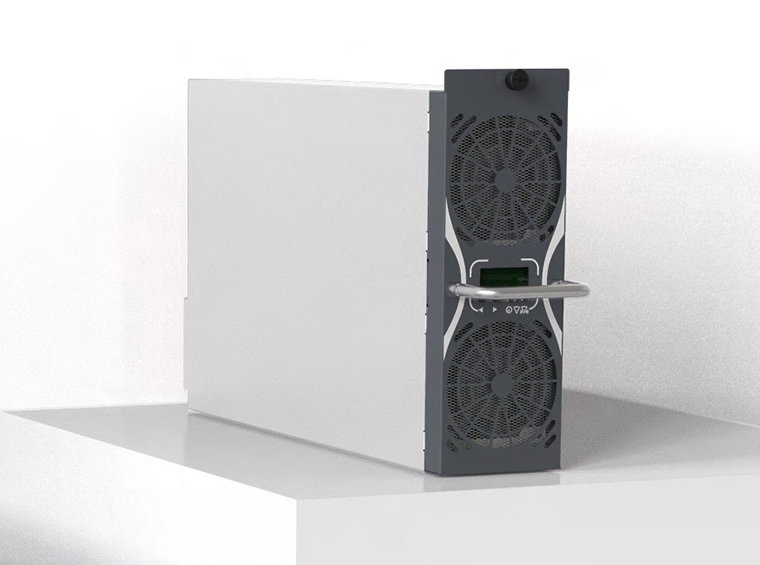

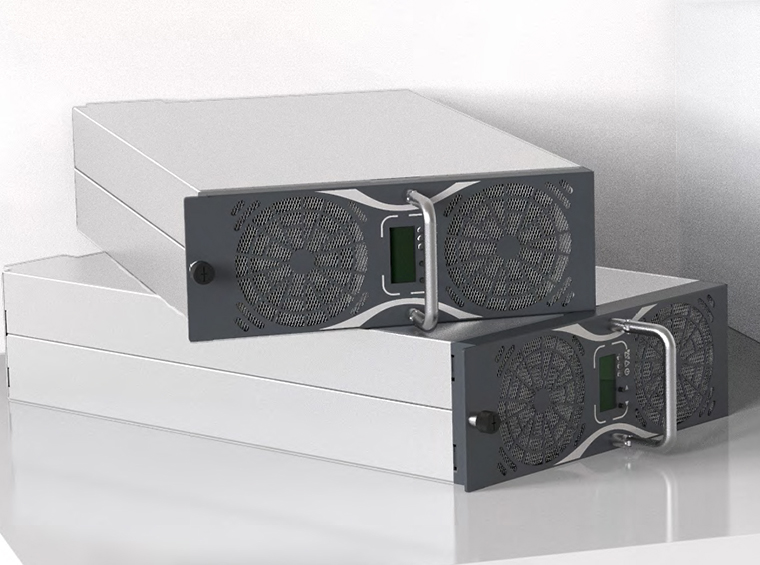

20KW Power Module
MARXON 1000V 20kW is specially developed for EV DC chargers. lt has advantages of high efficiency, high power factor, high power densityand high reliability.
AC input is 3 phase 4 wire, DC output voltage rangefrom 200-1000 Vdc. The rated output power of the module is 20kW, andit can output at constant power in the range of 300-1000Vdc.
Product parameters
Parameters
| Name | MKS-9031 | |
| Basic indicators | Equipment dimensions | W238*D86*H411mm |
| Weight of equipment | ≤10 kg | |
| Heat dissipation mode | Forced air cooling | |
| Communications | CAN | |
| Input characteristics | Input voltage | 268-480Vac |
| Voltage system | three-phase four-wire system | |
| Input current | ≤40A | |
| nput frequency | 45-65 Hz | |
| Power factor | ≥0.99 | |
| Harmonic current | THDi<5% | |
| Output characteristics | Maximum output power | 20kW |
| Output voltage | 200-1000Vdc(support power output≤200V) | |
| Output constant power range | 300-1000Vdc | |
| Maximum output current | 67A | |
| Peak efficiency | 96% | |
| Environmental indicators | Altitude | ≤2000m |
| Noise | ≤65dB | |
| Working temperature | -25℃-65℃， above 45℃ derating | |
| Working humidity | 0-95% |
