Marxon

Category	Item	Parameter

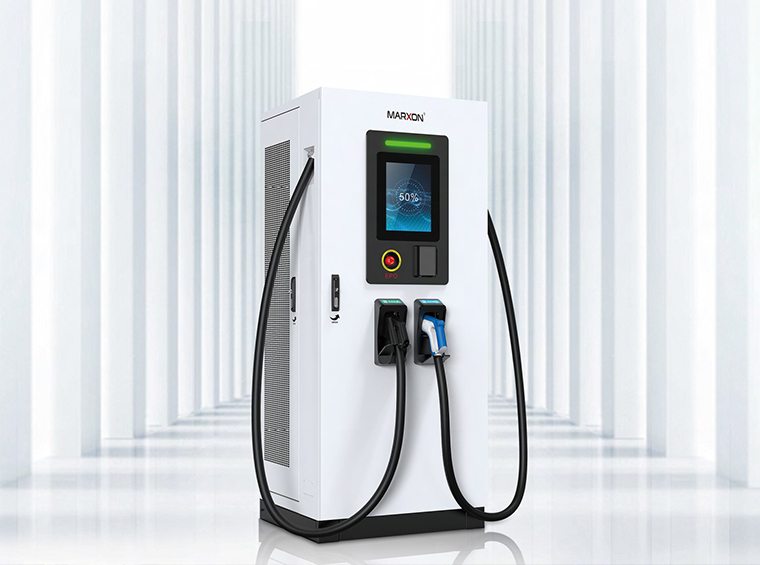

Input Characteristic	Name	MKS-9033
	Input type	3P+N+PE
	Voltage range	380-400V
	Frequency	50/60Hz
	THDi	5%
	Power factor	0.99
	Power supply	TT/TN-S/TN-C-S
Output Characteristic	Output voltageRated power	200-1000V(CCS)200-500V(CHAdeMO)240kW
	Maximum current	200A(300A Optional)
	Standby consumption	100W
	Numbers of connectors	2
	Connector type	CCS1/CCS2/CHAdeMO
	Peak efficiency	96%
Environment & Appearance	Operation temperature	-25~65℃, over 50℃ derating
	Storage temperature	-40~70
	Humidity range	0~95%,no condensation
	Altitude	2000m
Others	EV protocol	ISO15118
	Backend protocol	OCPP1.6J
	Payment method	APP, ISO15118, PnC, password, RFID
	Dimensions	W850D750H2000mm
	Communication type	Ethernet/Wi-Fi/4G
	Screen	15-inch LCD touch screen
	Language	English/Korean/Chinese
	Protection level	IP55, Ik10
	Protection type	Over/under voltage protection, over current protection,over temperature protection, short-circuit protection,reverse charging protection, leakage protection,surge protection, emergency stop, etc.
	Cable management	Yes
	Audio	Yes
	Weight	550kg
	Customized function	Tilt protection, Waterproof protection, fire protection, heater
	Standards	IEC61851 IEC62196 IEC61000
	Protection	Undervoltage protection, Overvoltage protection, DCOvercurrent protection, Over-temperature protection,Surge Protection Device, Emergency Stop Protection
