Home > Products > > MKS VM series Off Grid lnverter

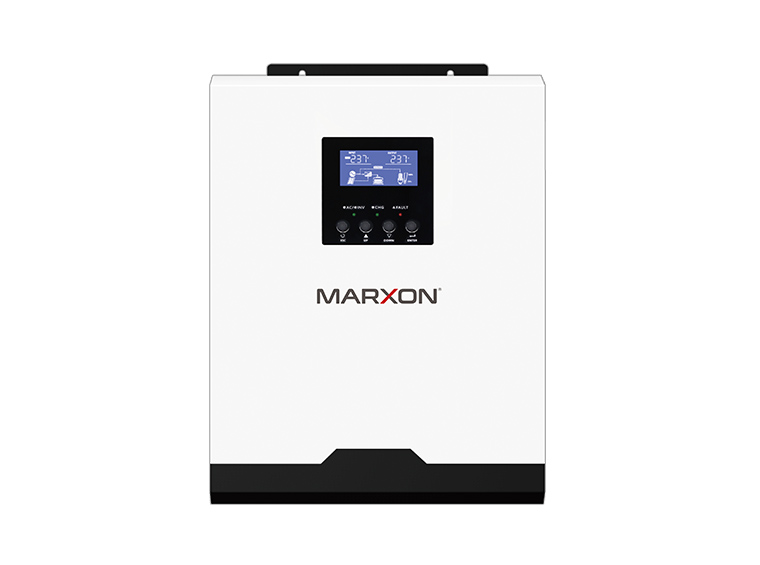

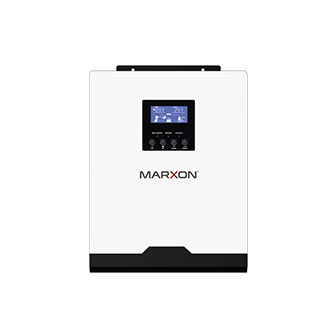

MKS VM series

Off Grid lnverter

Off grid Energy Storage Inverter 1.2/2.2/3.2/5.0KW 230VAC output Voltage12/24/24/48V DCInput Voltage Single Phase

Product features

Features

MPPT

Pure sine wave MPPT solar inverterBulit-in 50/65A MPPT solar charger；

Battery

Battery equalization function extend lifecycleReserved communication port(RS485,CAN) forBMS；

Easy access

Equalization function；

Off-Grid

REVO VP/VM series is suitable foroff-grid applications.

Product parameters

Parameters

Technical Specification	MKS-LW1K2-VM	MKS-LW2K2-VM	MKS-LW3K2-VM	MKS-LW5K-VM
Rated Power	1200VA/W	2200VA/W	3200VA/W	5000VA/W

INPUT
Voltage	230VAC
Selectable voltage range	170-280VAC（For Personal Computers）；90-280 VAC （For Home Appliances)
Frequency range	50Hz/60 Hz （Auto sensing)

OUTPUT
ACVoltage regulation(Batt.mode)	230VAC±5%
Surge power	2000VA	4000VA	6000VA	10000VA
Efficiency (peak)	90%~93%
Transfer time	10ms （For Personal Computers)； 20ms (For Home Appliances)
Waveform	Pure sine wave

BATTERY
Battery voltage	12VDC	24VDC		48VDC
Floating charge voltage	13.5VDC	27VDC		54VDC
Overcharge protection	16VDC	31VDC	33VDC	63VDC

SOLAR CHARGER & AC CHARGER
Solar charger type	MPPT	MPPT	MPPT	MPPT
Maximum PV array open Circuit Voltage	102VDC	102VDC	102VDC	145VDC
Maximum PV array power	700W	1400W	1800W	3000W
MPPT Range @ Operating voltage	17~80VDC	30~80VDC	30~80VDC	60~115VDC
Maximum solar charge current	50A	50A	65A	65A
Maximum AC charge current	20A	20A	25A	60A
Maximum charge current	60A	60A	80A	120A

PHYSICAL
Communication interface	Standard: USB/RS232

ENVIRONMENT
Degree of protection	IP20
Humidity	5% to 95% Relative humidity(Non-condensing)
Operating temperature	-10°C to 50°C
Storage temperature	-15°C to 60°C
