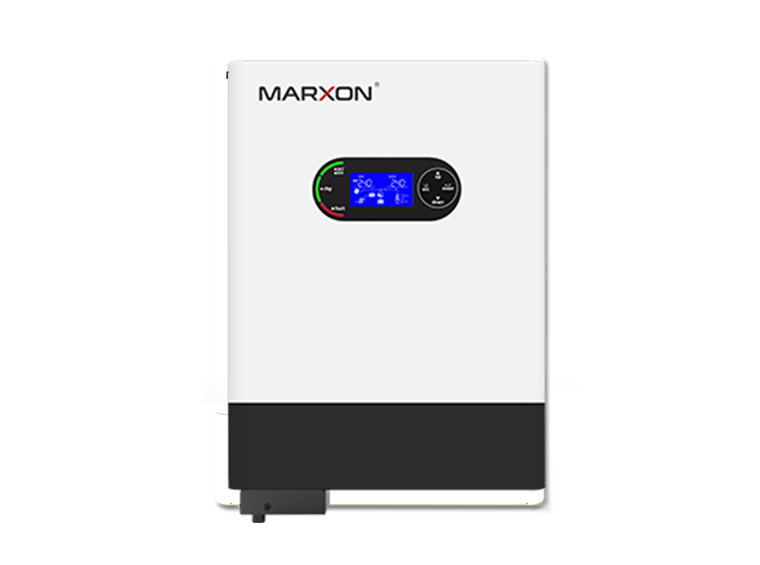

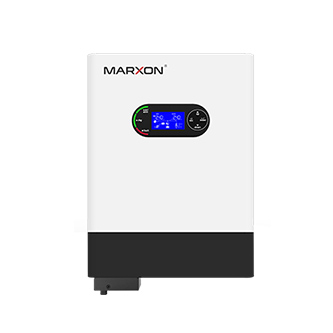

MKS SHM Series
Hybrid Inverter

On-Grid and Off-Grid

l  Suitable for on-grid and off-grid applications.

Easy access

l  Accessible through a LCD touch screen and through the web.

l  Two outputs for smart load management.

BMS

l  BMS Communication for lithium battery.

Remote monitoring

l  Charge from the grid at off-peak time when energy is cheaper and discharge at peak time when energy is more expensive.

Safe

l  Built-in anti-dust kit for harsh environment.

l  AC overcurrent, AC overvoltage, overtemperature protection.


Product parameters
Parameters

Product Model

MKS-HW4K-SHM

MKS-HW6K-SHM

Rated power

4000VA/4000W

6000VA/6000W

AC input

AC voltage

230VAC

Voltage range

70-280VAC(For personal computers);90-280   VAC (For home appliances)

Frequency range

50Hz/60 Hz(Auto sensing)

AC output

Surge power

8000VA

12000VA

Voltage regulation(Battery mode)

230VAC+5%

Rated frequency

50/60Hz

Efficiency(Peak)

up to 93.5%

Transfer time

10ms (For personal computers);20ms (For home   appliances);

Solar Charger &AC charger

Maximum PV array open voltage(V)

500VDC

Maximum PV array power

5000W

6000W

MPPT voltage range(V)

60~450VDC

Maximum input current

27A

MPPT tracker/strings

1

Maximum solar charge current

120A

Maximum AC charge current

100A

Maximum charge current

120A

Battery

Battery voltage

24VDC

48VDC

Floating charge voltage

27VDC

54VDC

Overcharge protection

33VDC

63VDC

Battery type

Lithium /Lead-acid

Protection & Feature

AC overcurrent

Yes

AC overvoltage

Yes

Over temperature protection

Yes

Smart load management

Yes

On grid

Yes

Parallel function

Yes( Optional )

General paramter

Operation temperature

0° C~ 50° C

Relative humidity

0-95%(Non-condensing)

Altitude

(>2,000m Derating)

Dimensions D x W x H (mm)

434*311*126.5

Net weight(KG)

8.5

9

Display and communication

Display

Touch bottons

Interface

Standard:RS485,RS232,CAN;Optional: WiFi   ,Bluetooth

Safety standard

EN/IEC 62109-1,EN/IEC 62109-2

Degree of protection

IP20
