MPPT
Built-in two MPPT(8KW-10KW),with wide inputrange:120~450VDC.
Battery
Battery equalization function extend lifecycleReserved communication port(RS485,CAN)for BMS.
On&Off-Grid

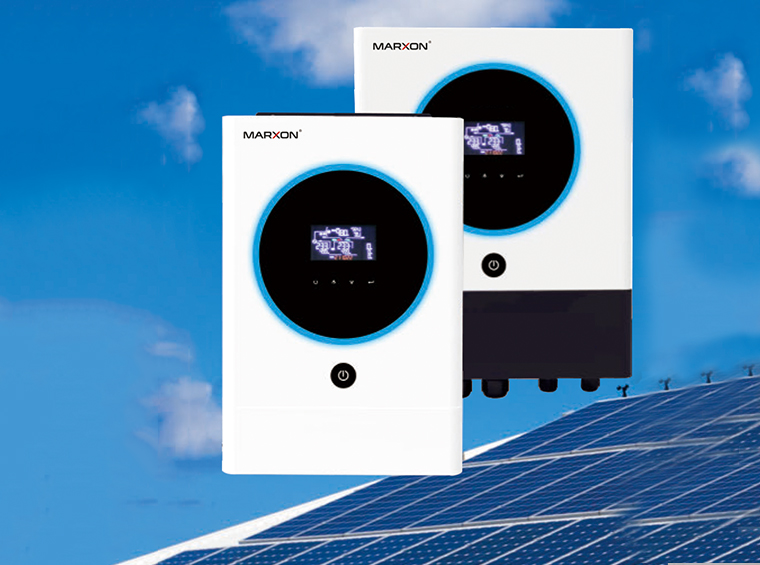

MX-R VM IV series is suitable foron&off-grid applications.
Easy access

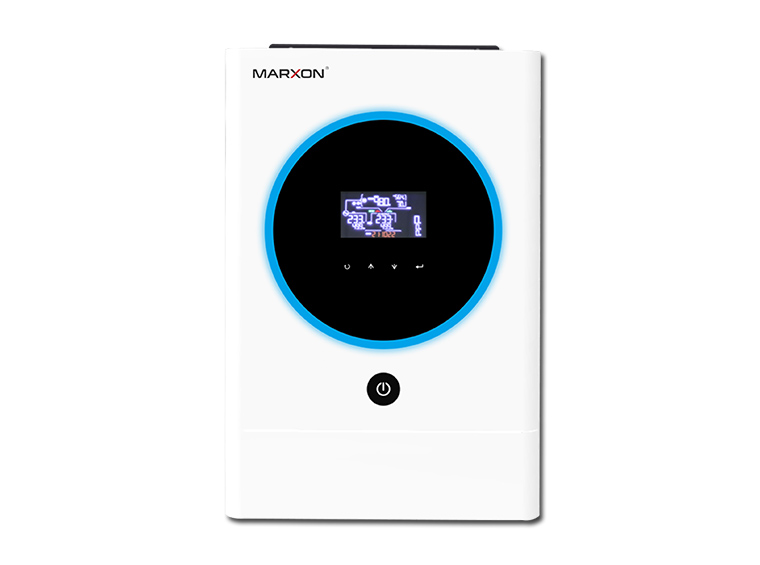

Communication WIFl or bluetooth Touchable button with large 5"colorful LCD.
Technical Specification | MKS-HW3K6-VMS | MKS-HW5K6-VMS | MKS-HW8K-VMS |
Rated power(W) | 3600 | 5600 | 8000 |
AC INPUT | |||
Nominal voltage(VAC) | 230 | ||
Voltage range(VAC) | 120-280 | ||
Frequency range(Hz) | 50/60 | ||
AC OUTPUT | |||
Surge power | 7200 | 11200 | 16000 |
Output voltage(VAC) | 220/230/240 | ||
Output wave form | Pure sine wave | ||
Rated frequency(Hz) | 50/60 | ||
Efficiency | up to 93.5% | ||
Transfer time | 10ms typical (narrow range); 20ms typical (wide range) | ||
SOLAR CHARGER & AC CHARGER | |||
Max. PV array open circuit voltage(VDC) | 500 | ||
Max. PV array power(W) | 5500 | 4000*2 | |
MPPT input voltage range@operating(VDC) | 90-450 | ||
Max. input current(A) | 18 | 18 | 18*2 |
Max. solar charging current(A) | 120 | ||
Max. AC charging current(A) | 120 | ||
Max. charging current(A) | 120 | ||
BATTERY | |||
Nominal DC voltage(VDC) | 24 | 48 | |
Floating charge voltage(VDC) | 27 | 54 | |
Overcharge protection(VDC) | 31 | 63 | |
Battery type | Lithium & Lead-acid | ||
DISPLAY & INTERFACE | |||
Parallel function | up to 6 units | ||
Communication | RS232&USB(optional)&(RS485,CAN)(optional)&WIFI(optional)&Bluetooth(optional) | ||
Display | 5' colorful LCD | ||
ENVIRONMENT | |||
Humidity | 0~90% RH (No Condensing) | ||
Operating temperature | 0 to 50°C | ||
Net weight(KG) | 9 | 10 | 18.8 |
Dimensions D x W x H (mm) | 302*500*132.5 | 420*561.6*152.4 | |
Degree of protection | IP20 |
