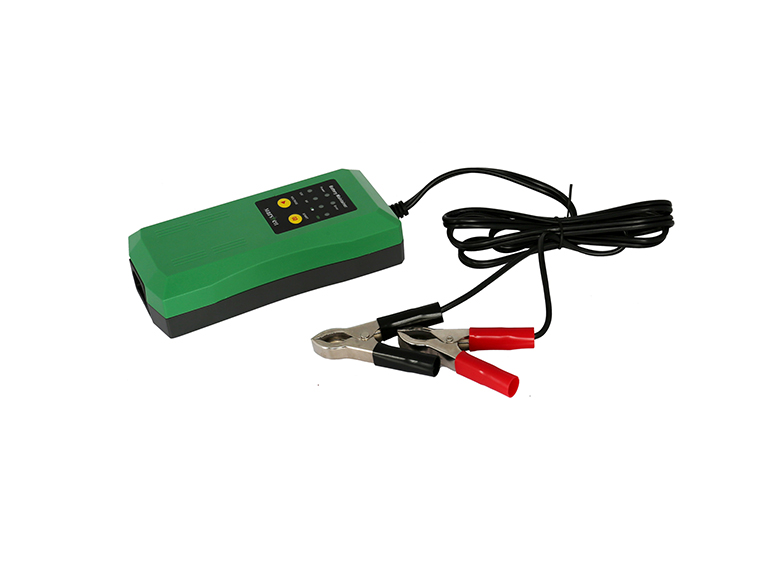

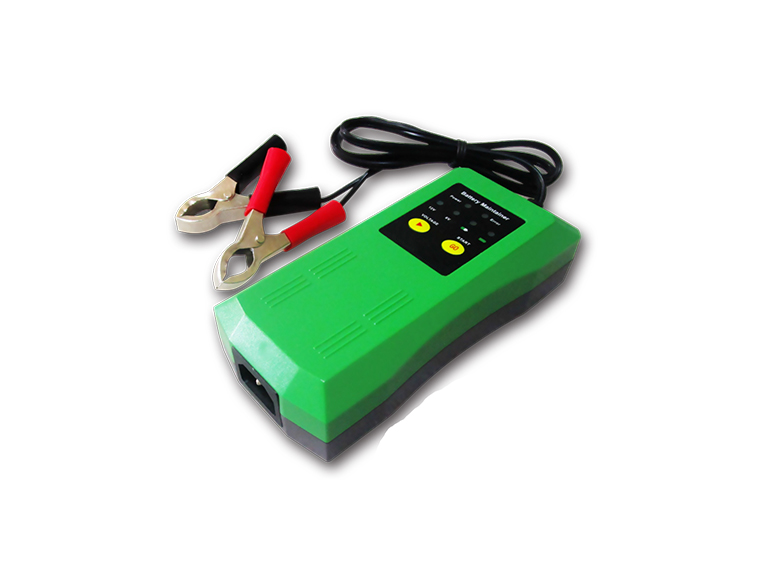

LC-2801
Desktop Charger Series

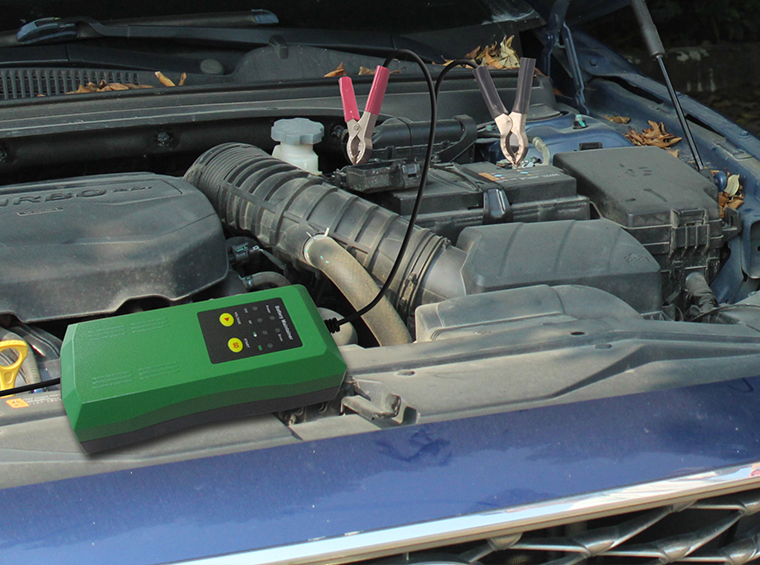

The car mobile charging power supply is a multi-functional portable mobile charging powersupply developed for car driving and business people. lts characteristic function is to chargethe battery in the car when the car loses electricity or cannot start the car for other reasons. ltis one of the essential products for outdoor travel.

Product parameters
Parameters
SpecificationsLC-2801/LC-2802/LC-2803
Output current1A2A3A1A2A3A
Output voltage range3~15.5VDC3~15.5VDC3~15.5VDC3~15.5VDC3~15.5VDC3~15.5 VDC
Bulk charge current rating1A+/-0.2A2A+/-0.2A3A+/-0.3A1A+/-0.2A2A+/-0.2A3A+/-0.3A
Output power15.5W Max30W Max48.5W Max15.5W Max30W Max48.5W Max
Bulk charge voltage ratingSTD 7.35 V DC+/-0.2V DCSTD 14.7 V DC+/-0.3V DC
Recondition voltage rating7.75V DC+/-0.2V DC15.5V DC+/-0.3V DC
Float charge voltage rating6.8V DC+/-0.2V DC13.7VDC+/-0.2V DC
Light switching current200mA400mA600mA200mA400mA600mA
Input voltage range185V ~ 264V AC
Input voltage rating200V~240VAC
Input frequency50~60Hz
Input current0.15A@0.25A@0.5A@0.15A@0.25A@0.5A@
220Vac220Vac220Vac220Vac220Vac220Vac
Input power20W Max38W Max60W Max20W Max38W Max60W Max
Input static state current0.1A Max
Operating temperature-20℃~45℃
Storage temperature-30℃~85℃
Operating relative humidity8%~90%
Storage relative humidity5%~95%
Indicator statusGreen LED on =full charge, Orange LED on = charging
Available protectionOverload, short circuit,reversed polarity protection
Pallet QTY (pcs)80
Carton measurement (mm)535*450*525
Container 20GP (pcs)13440
Container 40GP (pcs)26880
