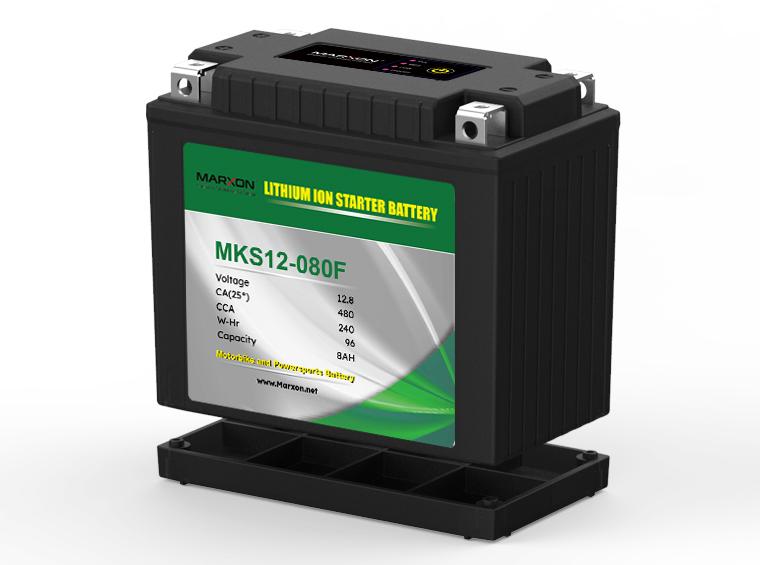

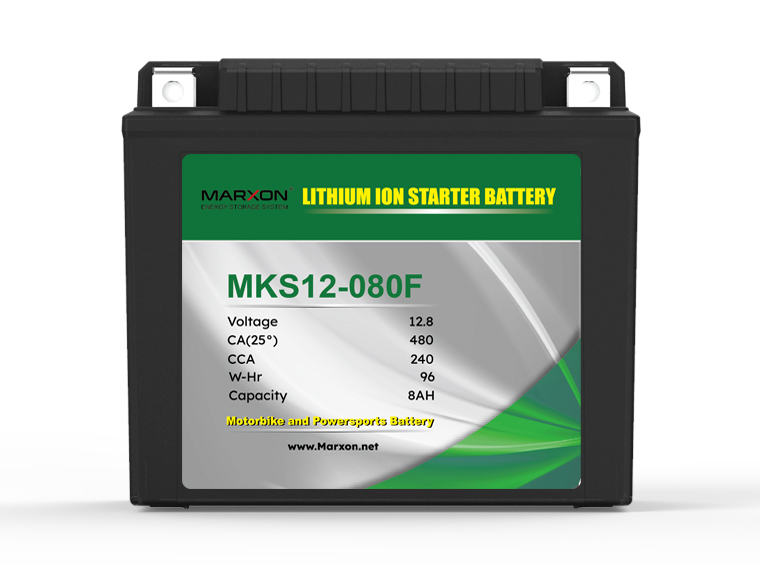

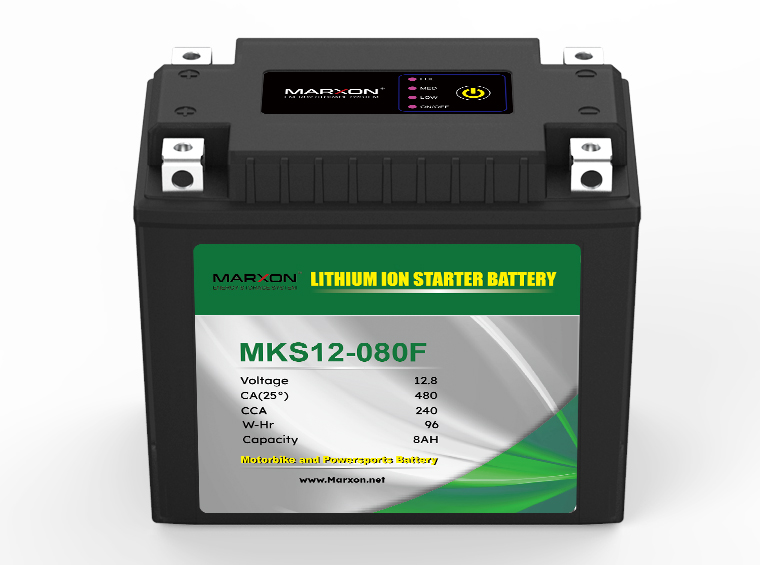

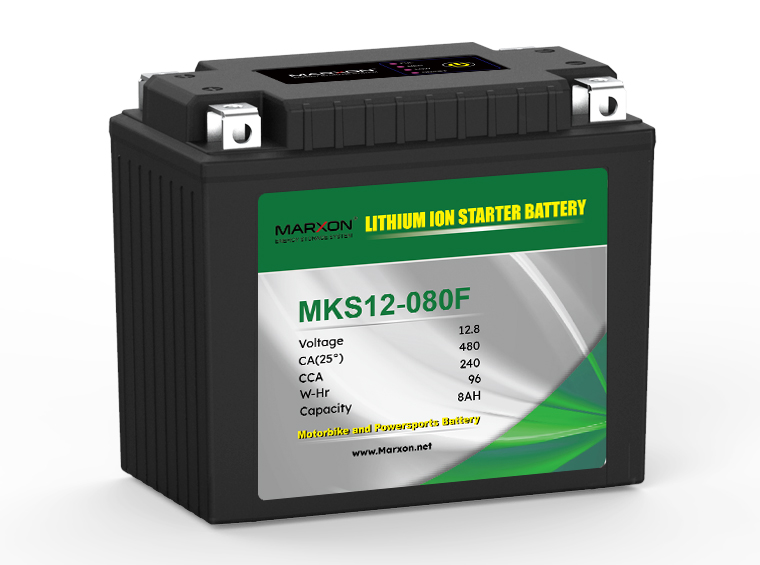

MKS12-080F

Motorcycle lithium battery

Product features

Features

High rate: Leoch lithium batteries use stacked lithium iron phosphate cells, which have stable voltage,

low internal resistance, and excellent high and low temperature performance, and can achieve high rate

high current discharge, and can easily start vehicle equipment under the condition of -20℃ to 60℃.

Light weight: The discharge rate of lithium iron phosphate battery is 10 times higher than that of lead-acid

batteries, and the weight are only 1/3 of lead-acid batteries.

Environmental protection: lithium iron phosphate battery is non-toxic (SGS certified), does not contain lead,

mercury and other toxic substances, no pollution, in line with European RoHS regulations.

Product parameters

Parameters

Model	MKS12-025F	MKS12-035F	MKS12-050F	MKS12-060F	MKS12-080F	MKS12-120F	MKS12-180F
Nominal Voltage	12.8V	12.8V	12.8V	12.8V	12.8V	12.8V	12.8V
Nominal Capacity	2.5AH	3.5AH	5AH	6AH	8AH	12AH	18AH
Watt-hour	30W	42W	60W	72W	96W	144W	216W
Cranking Ampere	150A	210A	300A	360A	480A	720A	1080A
Cold Cranking Ampere	75A	105A	150A	180A	240A	360A	540A
Max. Constant Discharge Current	50A 20C	70A 20C	100A 20C	120A 20C	160A 20C	240A 20C	360A 20C
Max. Charge Current	12.5A 5C	17.5A 5C	25A 5C	30A 5C	40A 5C	60A 5C	90A 5C
Charging Cut-off Voltage	14.6V	14.6V	14.6V	14.6V	14.6V	14.6V	14.6V
Discharge Cut-off Voltage	8.0V	8.0V	8.0V	8.0V	8.0V	8.0V	8.0V
Range Of Operating Temperature-Charge	0~55℃	0~55℃	0~55℃	0~55℃	0~55℃	0~55℃	0~55℃
Range Of Operating Temperature-Discharge	-20~60℃	-20~60℃	-20~60℃	-20~60℃	-20~60℃	-20~60℃	-20~60℃
Weight	0.7KG	0.8KG	1.1KG	1.3KG	1.6KG	2.6KG	2.8KG
Terminal Quantity	4	4	4	4	4	4	4
Standard Dimension (mm)	1137085mm	1137085mm	1508793mm	1508793mm	15087130mm	17587155mm	166126175mm
