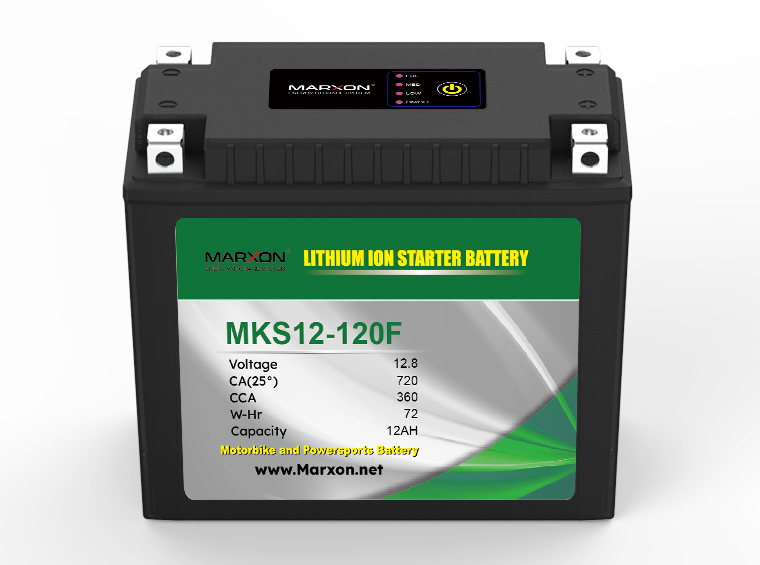

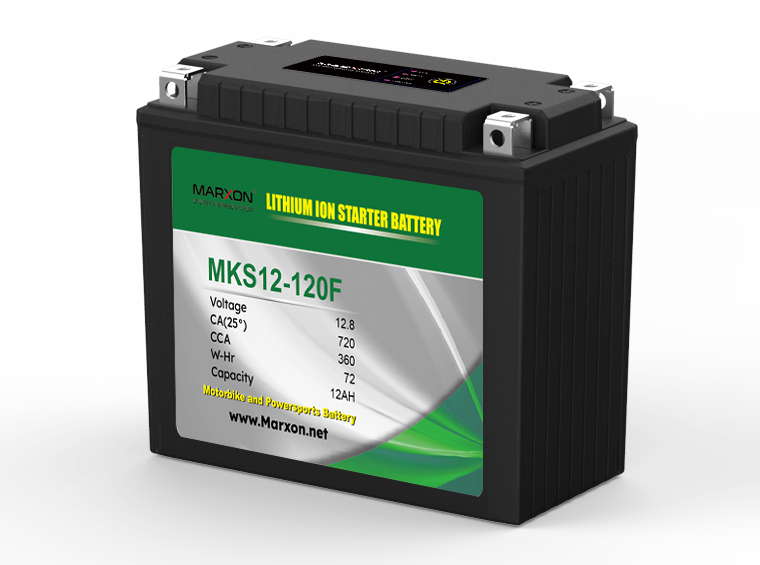

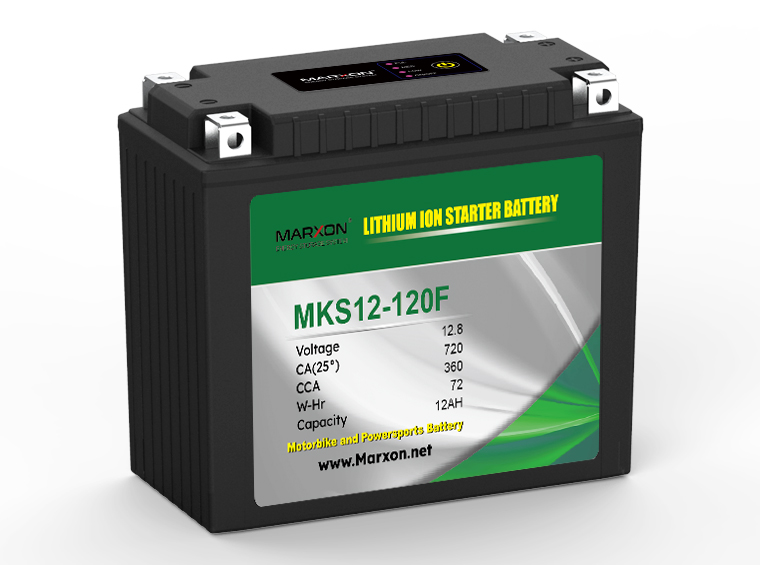

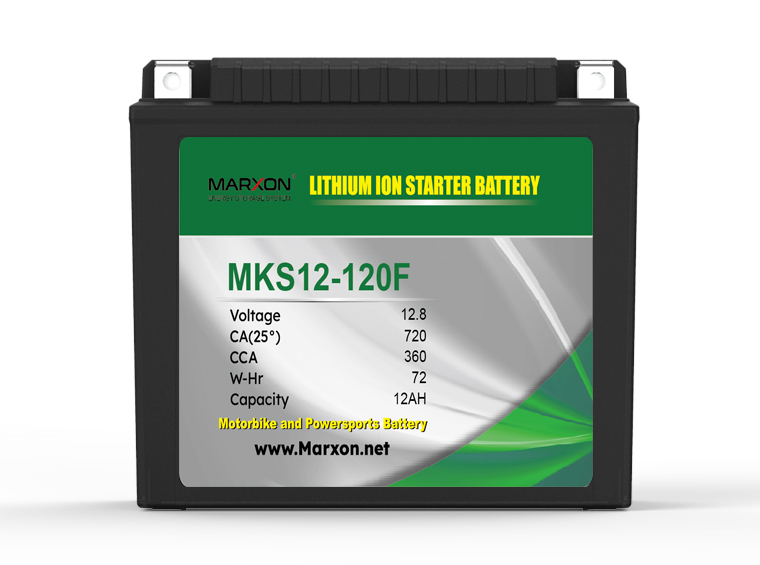

MKS12-120F
Motorcycle lithium battery
Product features
Features

Light weight: The discharge rate of lithium iron phosphate battery is 10 times higher than that of lead-acid

batteries, and the weight are only 1/3 of lead-acid batteries.


Intelligent BMS: The built-in Intelligent Management System (BMS) protects the battery from overcharge,

overdischarge, overload, overheating and short circuit. And with custom power on/off, low power sleep,

shake-to- restart(only gently shake the vehicle or battery), one-key restart battery and other functions.


Compatibility: This product has been designed and added with universal spacers to allow you to easily install

on a variety of vehicles and replace more lead-acid battery models.



Product parameters
Parameters

Model

MKS12-025F

MKS12-035F

MKS12-050F

MKS12-060F

MKS12-080F

MKS12-120F

MKS12-180F

Nominal Voltage

12.8V

12.8V

12.8V

12.8V

12.8V

12.8V

12.8V

Nominal Capacity

2.5AH

3.5AH

5AH

6AH

8AH

12AH

18AH

Watt-hour

30W

42W

60W

72W

96W

144W

216W

Cranking Ampere

150A

210A

300A

360A

480A

720A

1080A

Cold Cranking Ampere

75A

105A

150A

180A

240A

360A

540A

Max. Constant Discharge   Current

50A  20C

70A  20C

100A  20C

120A  20C

160A  20C

240A  20C

360A  20C

Max. Charge Current

12.5A 5C

17.5A 5C

25A 5C

30A 5C

40A 5C

60A 5C

90A 5C

Charging Cut-off Voltage

14.6V

14.6V

14.6V

14.6V

14.6V

14.6V

14.6V

Discharge Cut-off Voltage

8.0V

8.0V

8.0V

8.0V

8.0V

8.0V

8.0V

Range Of Operating   Temperature-Charge

0~55℃

0~55℃

0~55℃

0~55℃

0~55℃

0~55℃

0~55℃

Range Of Operating   Temperature-Discharge

-20~60℃

-20~60℃

-20~60℃

-20~60℃

-20~60℃

-20~60℃

-20~60℃

Weight

0.7KG

0.8KG

1.1KG

1.3KG

1.6KG

2.6KG

2.8KG

Terminal Quantity

4

4

4

4

4

4

4

Standard Dimension (mm)

113*70*85mm

113*70*85mm

150*87*93mm

150*87*93mm

150*87*130mm

175*87*155mm

166*126*175mm
