Home > Products > > MKS12-035T Motorcycle lithium battery

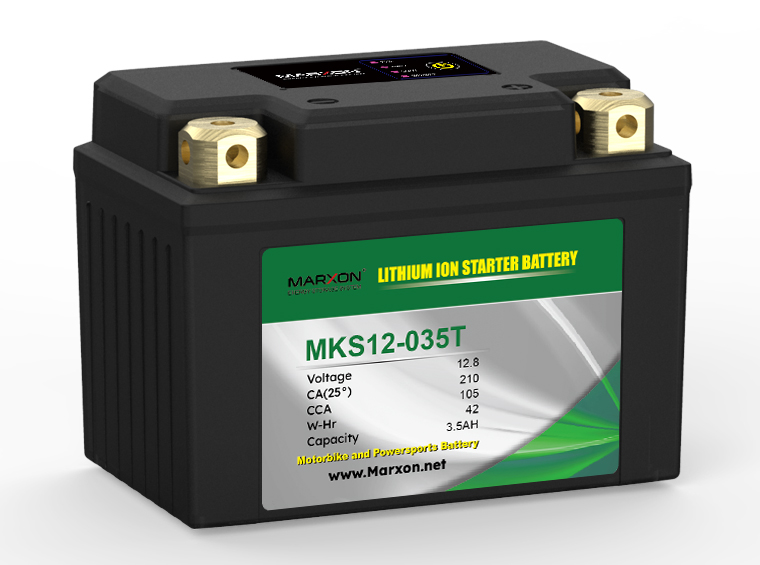

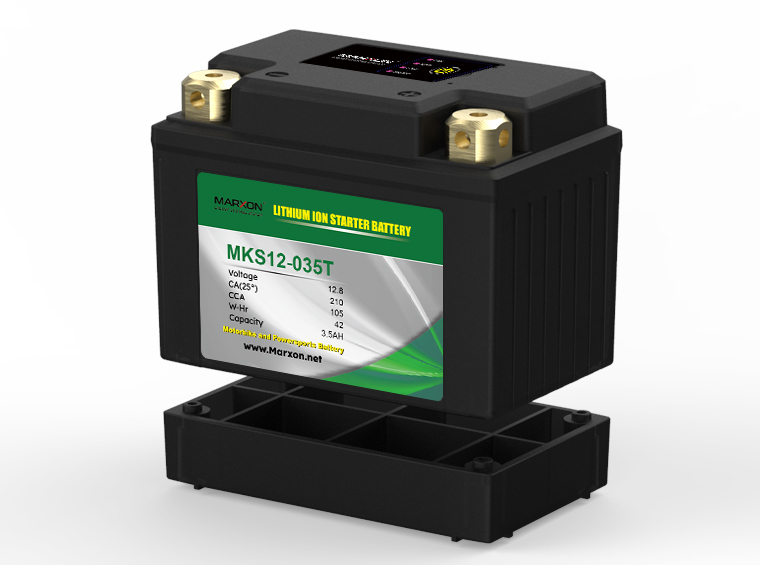

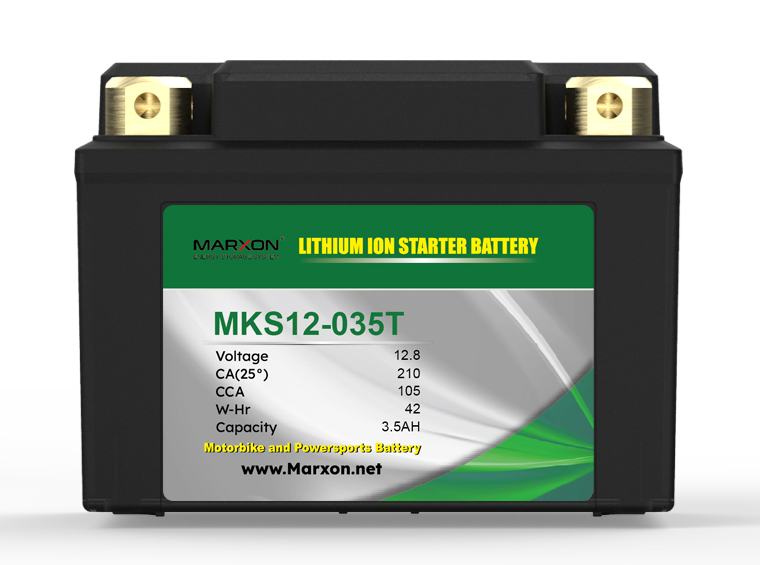

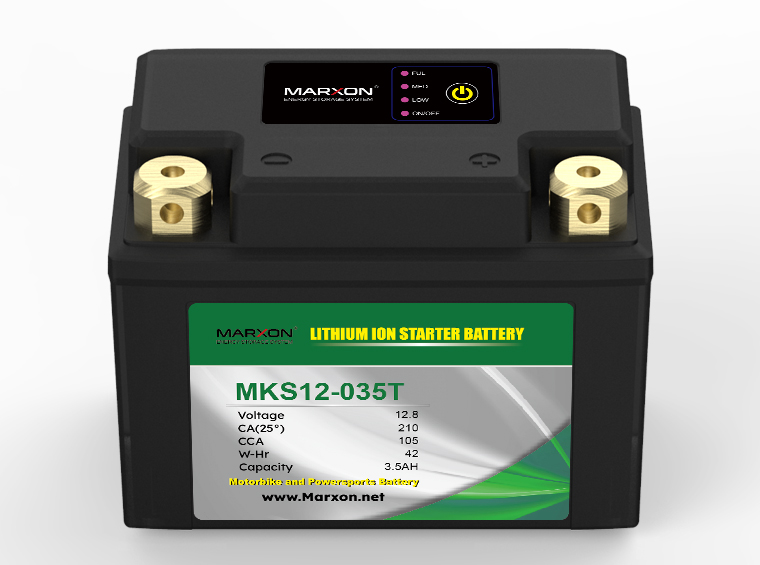

MKS12-035T
Motorcycle lithium battery
Product features
Features

High rate: Leoch lithium batteries use stacked lithium iron phosphate cells, which have stable voltage,

low internal resistance, and excellent high and low temperature performance, and can achieve high rate

high current discharge, and can easily start vehicle equipment under the condition of -20℃ to 60℃.


Light weight: The discharge rate of lithium iron phosphate battery is 10 times higher than that of lead-acid

batteries, and the weight are only 1/3 of lead-acid batteries.


Long life: The service life of lithium iron phosphate batteries is 2-3 times that of lead-acid batteries, and the

number of deep cycle discharges is as high as 2000-3000 times.



Product parameters
Parameters
ModelMKS12-025TMKS12-035TMKS12-040TMKS12-050TMKS12-060TMKS12-080T
Nominal Voltage12.8V12.8V12.8V12.8V12.8V12.8V
Nominal Capacity2.5AH3.5AH4AH5AH6AH8AH
Watt-hour30W42W48W60W72W96W
Cranking Ampere150A210A240A300A360A480A
Cold Cranking Ampere75A105A120A150A180A240A
Max. Constant Discharge     Current50A  20C70A  20C80A  20C100A  20C120A  20C160A  20C
Max. Charge Current12.5A 5C17.5A 5C20A 5C25A 5C30A 5C40A 5C
Charging Cut-off Voltage14.6V14.6V14.6V14.6V14.6V14.6V
Discharge Cut-off Voltage8.0V8.0V8.0V8.0V8.0V8.0V
Range Of Operating     Temperature-Charge0~55℃0~55℃0~55℃0~55℃0~55℃0~55℃
Range Of Operating     Temperature-Discharge-20~60℃-20~60℃-20~60℃-20~60℃-20~60℃-20~60℃
Weight0.7KG0.8KG0.9KG1.1KG1.3KG1.6KG
Terminal Quantity222222
Standard Dimension (mm)113*70*85mm113*70*85mm150*65*93mm150*87*93mm150*87*93mm150*87*130mm
