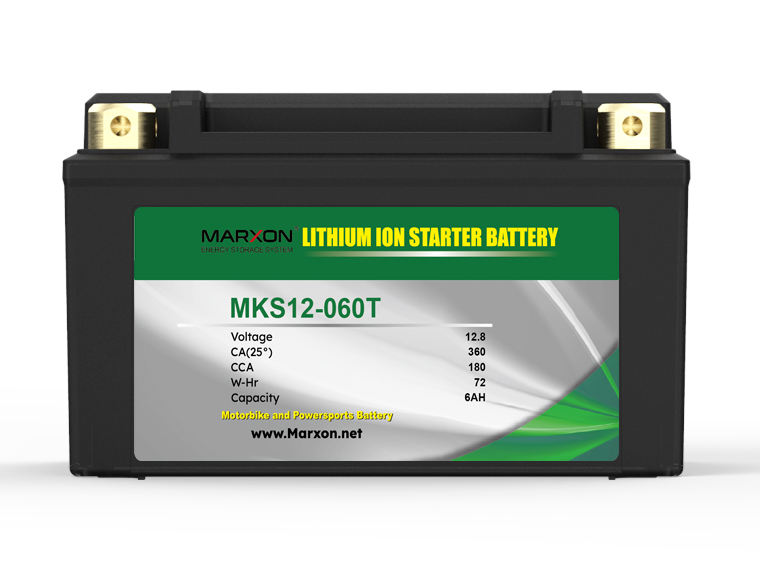

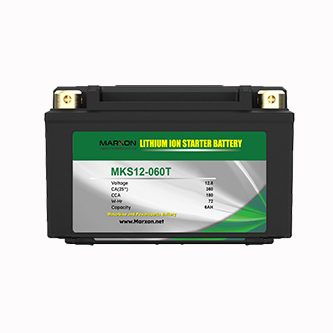

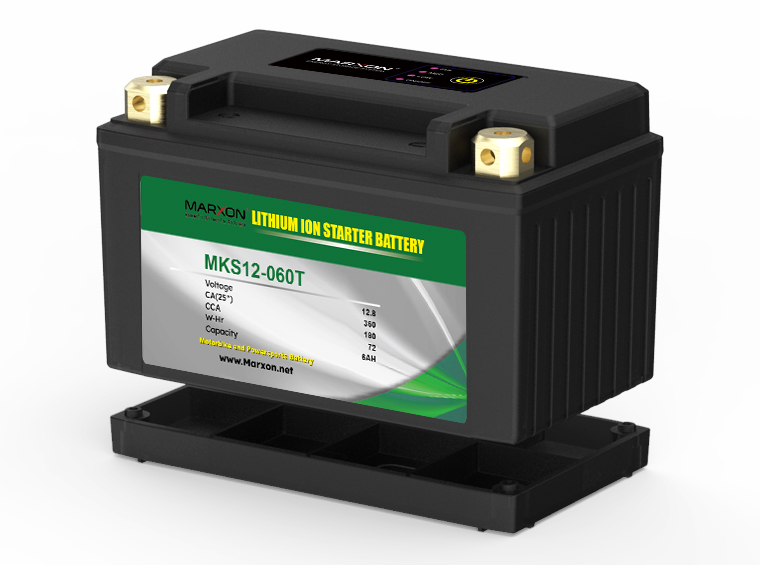

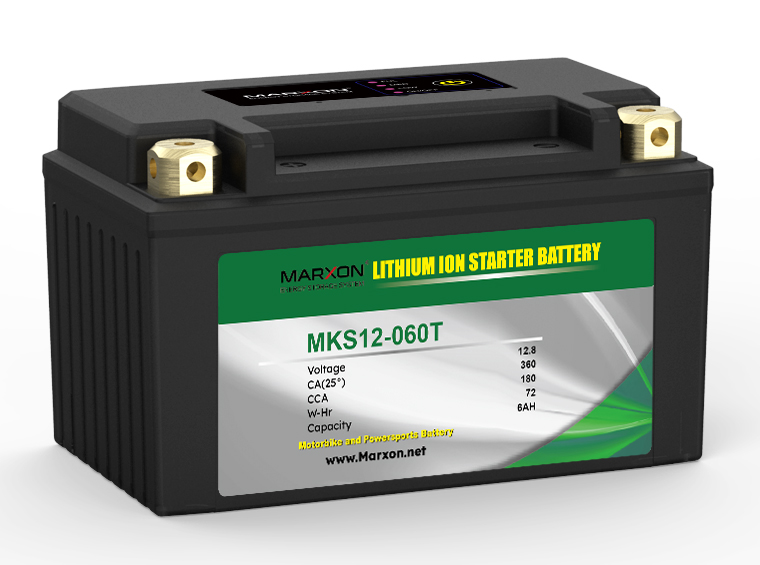

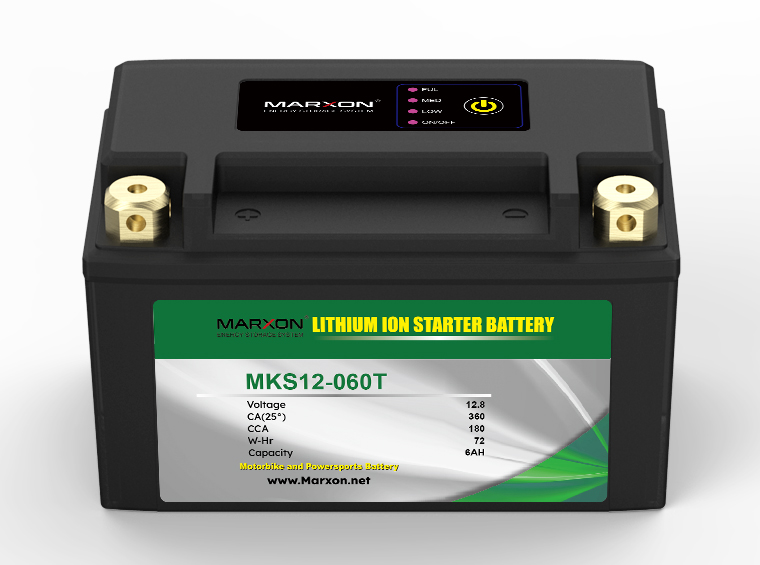

MKS12-060T
Motorcycle lithium battery
Product features
Features

Light weight: The discharge rate of lithium iron phosphate battery is 10 times higher than that of lead-acid

batteries, and the weight are only 1/3 of lead-acid batteries.


Intelligent BMS: The built-in Intelligent Management System (BMS) protects the battery from overcharge,

overdischarge, overload, overheating and short circuit. And with custom power on/off, low power sleep,

shake-to- restart（only gently shake the vehicle or battery）, one-key restart battery and other functions.


Safety: lithium iron phosphate battery has good chemical stability, low self-discharge, no memory effect,

and higher safety performance when it is charged.


Product parameters
Parameters
ModelMKS12-025TMKS12-035TMKS12-040TMKS12-050TMKS12-060TMKS12-080T
Nominal Voltage12.8V12.8V12.8V12.8V12.8V12.8V
Nominal Capacity2.5AH3.5AH4AH5AH6AH8AH
Watt-hour30W42W48W60W72W96W
Cranking Ampere150A210A240A300A360A480A
Cold Cranking Ampere75A105A120A150A180A240A
Max. Constant Discharge     Current50A  20C70A  20C80A  20C100A  20C120A  20C160A  20C
Max. Charge Current12.5A 5C17.5A 5C20A 5C25A 5C30A 5C40A 5C
Charging Cut-off Voltage14.6V14.6V14.6V14.6V14.6V14.6V
Discharge Cut-off Voltage8.0V8.0V8.0V8.0V8.0V8.0V
Range Of Operating     Temperature-Charge0~55℃0~55℃0~55℃0~55℃0~55℃0~55℃
Range Of Operating     Temperature-Discharge-20~60℃-20~60℃-20~60℃-20~60℃-20~60℃-20~60℃
Weight0.7KG0.8KG0.9KG1.1KG1.3KG1.6KG
Terminal Quantity222222
Standard Dimension (mm)113*70*85mm113*70*85mm150*65*93mm150*87*93mm150*87*93mm150*87*130mm
