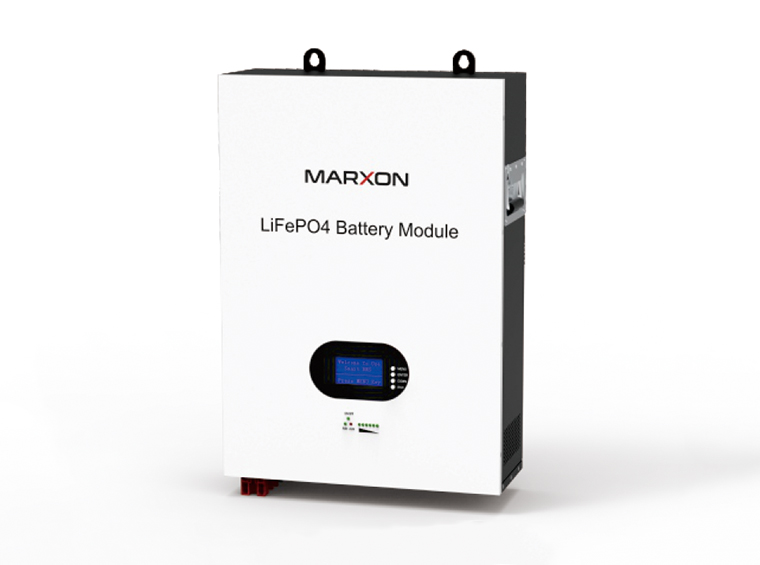

48V LiFePO4 Wall mount Y1 series
Home Energy Storage (Wall-mounted)
Product features
Features
Larger capacity supply equipment cabinet.
No active cooling system is required.
High operational reliability.
They live for more than 10 years at +25°C.
Optimal management.
In line with the RoHS.
Product parameters
Parameters
| Model | MKS-HW4850Y1 | MKS-HW4880Y1 | MKS-HW48100Y1 | MKS-HW48120Y1 | MKS-HW48150Y1 | MKS-HW48200Y1 | |
| Electrical Characteristics | Rate voltage(Vdc) | 48 | 48 | 48 | 48 | 48 | 48 |
| Rate capacity(AH) | 50 | 80 | 100 | 120 | 150 | 200 | |
| Energy storage(KWH) | 2.4 | 3.8 | 4.8 | 5.8 | 7.2 | 9.6 | |
| Cycle life | ≥6000 cycles to 85% DOD | ||||||
| Months self discharge | ≤2% | ||||||
| Efficiency of charge | 100% at 0.2C | ||||||
| Efficiency of discharge | 96-99% at 1C | ||||||
| Standard Charge | Charge voltage | 54.75 | |||||
| Charge current(A) | 10 | 16 | 20 | 24 | 30 | 40 | |
| Max. charge current(A) | 50 | 80 | 100 | 120 | 120 | 200 | |
| Charge cut-off voltage(VDC) | 54.8 | ||||||
| Standard Discharge | Contiunous current(A) | 50 | 80 | 100 | 120 | 120 | 200 |
| Discharge cut-off voltage(VDC) | 42 | ||||||
| Mechanical | IP class | IP60 | |||||
| Material system | LiFePO4 | ||||||
| Case material | Metal | ||||||
| Case type | Rack/Wall mount | ||||||
| Pack dimensions L*W*H(mm) | 525*390*150 | 525*390*150 | 471*375*147 | 471*375*147 | 680*545*155 | 590*375*245 | |
| Package dimension L*W*H(mm) | 610*485*250 | 610*485*250 | 575*490*255 | 575*490*255 | 760*625*240 | 685*470*350 | |
| Net weight(kg) | 37.7 | 38.5 | 39.2 | 54.2 | 66 | 78.8 | |
| Gross weight(kg) | 39.7 | 40.8 | 42.6 | 56.2 | 62 | 81.5 | |
| Terminal | M8 | ||||||
| Protocol(Optional) | CANBus/RS485/RS232 | ||||||
| SOC (Optional) | LED/LCD | ||||||
| The quality assurance period | 60 Months | ||||||
