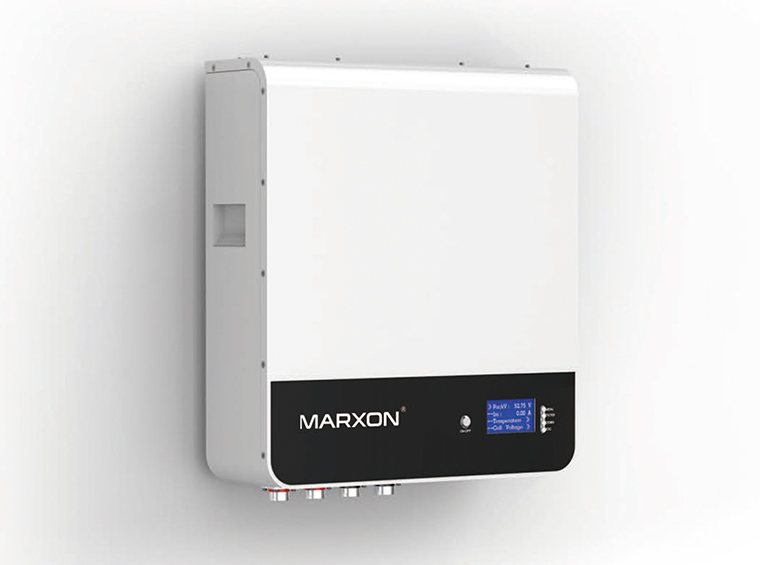

51.2V LIFEP04 Wall mount L1 series
Home Energy Storage (Wall-mounted)
Up to 16 groups of parallel connections, flexible capacity expansion.
Compatible with mainstream invertes in the market, providing more options.
LED disp|ay for voltage,current,temperature,convenient for users to query.
Buit-in BMS provides multiple protection functions.
Product features
Features
High Efficiency Max. efficiency 95%.
Eco-Friendly Clean energy.
Long Lifespan Sustainable long cycles.
Built-in BMS charge & discharge protetion.
Product parameters
Parameters
| Item | Parameters | |||
| Specifications and models | MKS-HW5150L1 | MKS-HW51100L1 | MKS-HW51150L1 | MKS-HW51200L1 |
| Nominal voltage | 51.2V | |||
| Nominal capacity | 50Ah | 100Ah | 150Ah | 200Ah |
| "Maximum continuous charge/discharge current" | 25/50A | 100A/100A | 100A/100A | 100A/100A |
| Discharge voltage/Maximum charge | 43.2V/58.4V | 43.2V/58.4V | 43.2V/58.4V | 43.2V/58.4V |
| Weight | 30kg | 43kg | 65kg | 90kg |
| Dimensions(WxDxH)(mm) | 450*450*130 | 450*500*140 | 400*600*200 | 500*620*245 |
| Cycle life | 5000 Cycles @ 25℃ 80% DOD | |||
| "Number of parallel connectionssupported" | 15 | |||
| Self-discharge(month)@25C | ≤3% | |||
| BMS communication types | RS485/RS232/CAN | |||
| Cooling mode | Free cooling | |||
| IP class | IP54 | |||
| Display fuction | LCD display | |||
| Design life | 10 Years | |||
| Certification | CE UN38.3 UL IEC TUV | |||
| Storage temperature | 0℃ to 40℃ | |||
| Operate temperature | charge: 0℃ to 45℃; discharge: -10℃ to 55℃ | |||
| Relative humidity | 5%to 95% | |||
| Working pressure | 61kPa~113kPa | |||
