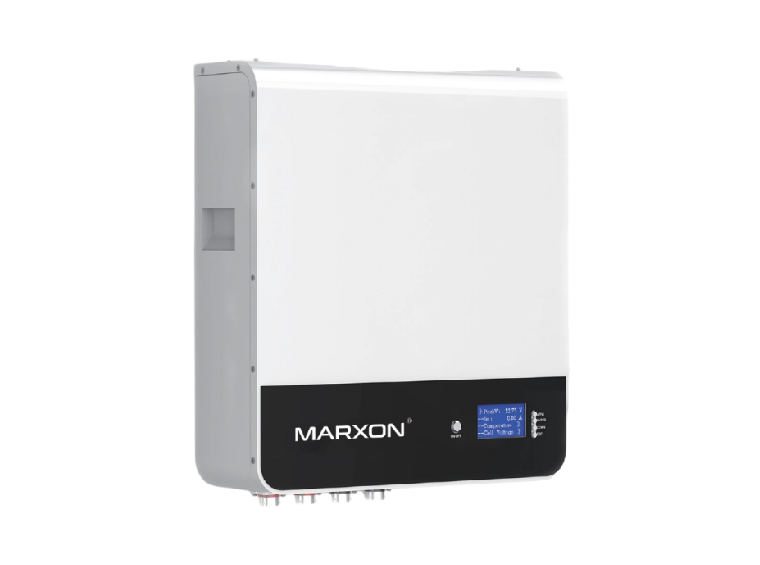

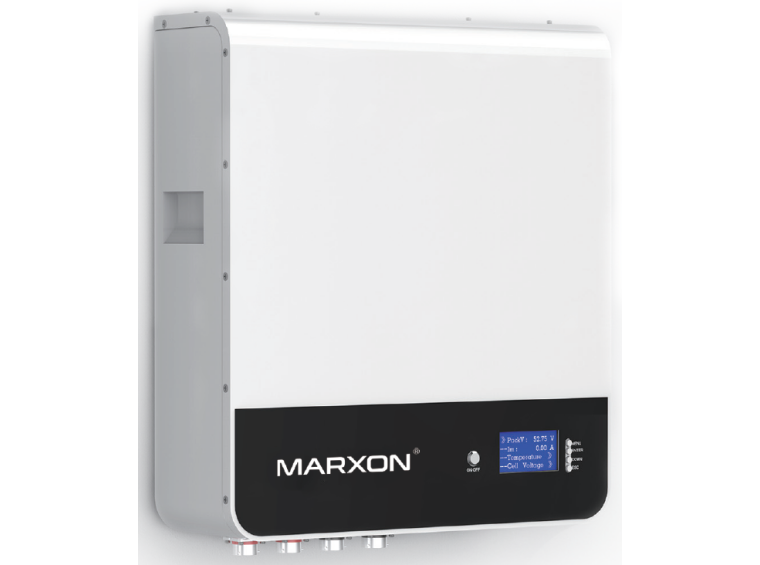

51.2V LiFeP04 Wall/Rack Dual use Y2 series
Home Energy Storage(Wall/Rack)
Product features
Features

Larger capacity supply equipment cabinet.


No active cooling system is required.


Ligh operational reliabety.


They live for more than 10 years at +25'C.

Optimal management.


In line with the RoHS.



Product features
Features



Larger capacity supply equipment cabinet.


No active cooling system is required.


Ligh operational reliabety.


They live for more than 10 years at +25'C.

Optimal management.


In line with the RoHS.


Product parameters
Parameters
ModelMKS-HWR51200Y2
Batteries materialsLithium iron phosphate
Series parallel mode (S   series, P parallel)16S2P
Rate voltage51.2V
Rate capacity200Ah
Cycle life≥ 5000 cycles to 85% DOD
Size(mm)900*490*200
Weight90kg
ColorOptional
Parallel supportParallel terminals are supported
Output port modeterminal
Charging wayCC/CV
Charging current0.2C(standard )
Maximum charging currentMax0.5C @25℃
Charge cut-off voltage58.4V
Discharge wayCC/CP/VP
Discharge current1C
Maximum discharge currentMax1C @25℃
Discharge cut-off voltage44.8V
Communication interfaceRS485/RS232/CAN
Charging operating temperaturecharging:0~+50℃
Discharge operating   temperaturedischarge:-20~+55℃
The quality assurance period60 months
IP classIP60
