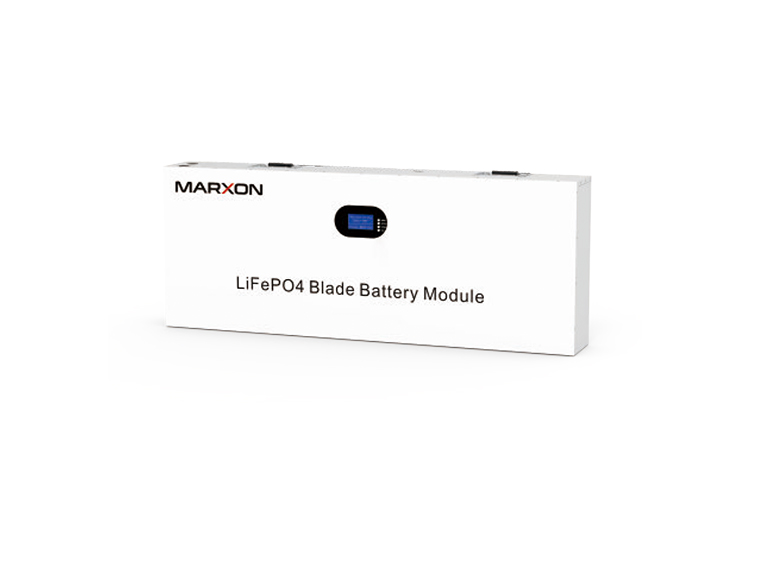

48/51.2V Blade LiFeP04 Wall mount Y3 series
Home Energy Storage(Wall-mounted)
Product features
Features
Larger capacity supply equipment cabinet.
No active cooling system is required.
High operational reliability.
They live for more than 1 O years at +25'C.
Optimal management.
In line with the RoHS.
Product parameters
Parameters
| Model | MKS-HW48138Y3 | MKS-HW48276Y3 | MKS-HW51138Y3 | MKS-HW51276Y3 | |
| ElectricalCharacteristics | Rate voltage(Vdc) | 48 | 48 | 51.2 | 51.2 |
| Rate capacity(AH) | 138 | 276 | 138 | 276 | |
| Energy storage(KWH) | 6.6 | 13.2 | 7.0 | 14.1 | |
| Cycle life | 6000 cycles to 85% DOD | ||||
| Months self discharge | ≤2% | ||||
| Efficiency of charge | 100% at 0.2C | ||||
| Efficiency of discharge | 96-99% at 1C | ||||
| StandardCharge | Charge voltage | 54.75 | 58.4 | ||
| Charge current(A) | 30 | 60 | 30 | 60 | |
| Max. charge current(A) | 120 | 200 | 120 | 200 | |
| Charge cut-o ffvoltage(VDC) | 54.7 | 58.4 | |||
| Standard Discharge | Contiunous current(A) | 120 | 200 | 120 | 200 |
| Discharge cut-o ffvoltage(VDC) | 42 | 44.8 | |||
| Environmental | Charge temperature | 0 ℃ to 45℃ | |||
| Discharge temperature | -20 ℃ to 60℃ | ||||
| Storage temperature | 0℃ to 40 ℃ | ||||
| IP class | IP60 | ||||
| Mechanical | Material system | LiFePO4 blade | |||
| Case material | Metal | ||||
| Case type | Rack/Wall mount | ||||
| Pack dimensions L*W*H(mm) | 1095*150*420 | 1095*150*770 | 1095*150*420 | 1095*150*770 | |
| Net weight(kg) | 62.5 | 113.5 | 66 | 116 | |
| Terminal | M8 | ||||
| Protocol(Optional) | CANBus/RS485/RS232 | ||||
| SOC (Optional) | LED/LCD | ||||
| The quality assurance period | 60 Months | ||||
