Home > Products > > LV Stackable Battery Low Voltage & Stackable Battery

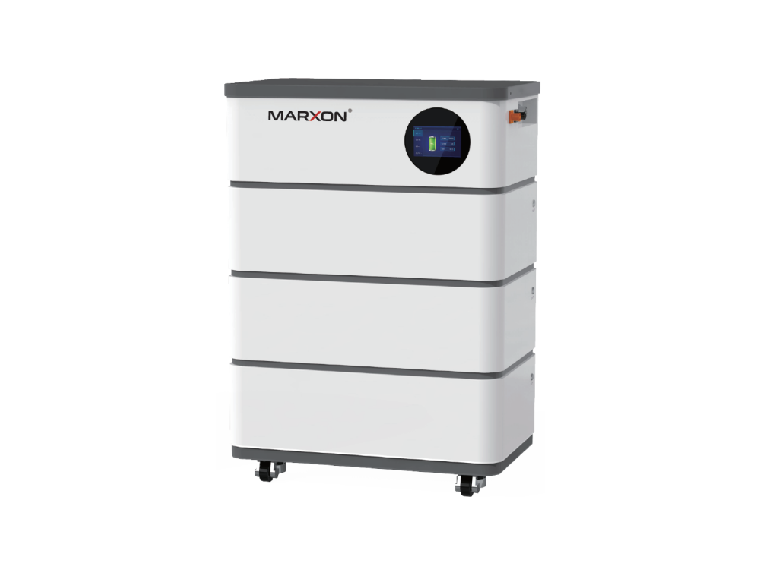

LV Stackable Battery
Low Voltage & Stackable Battery

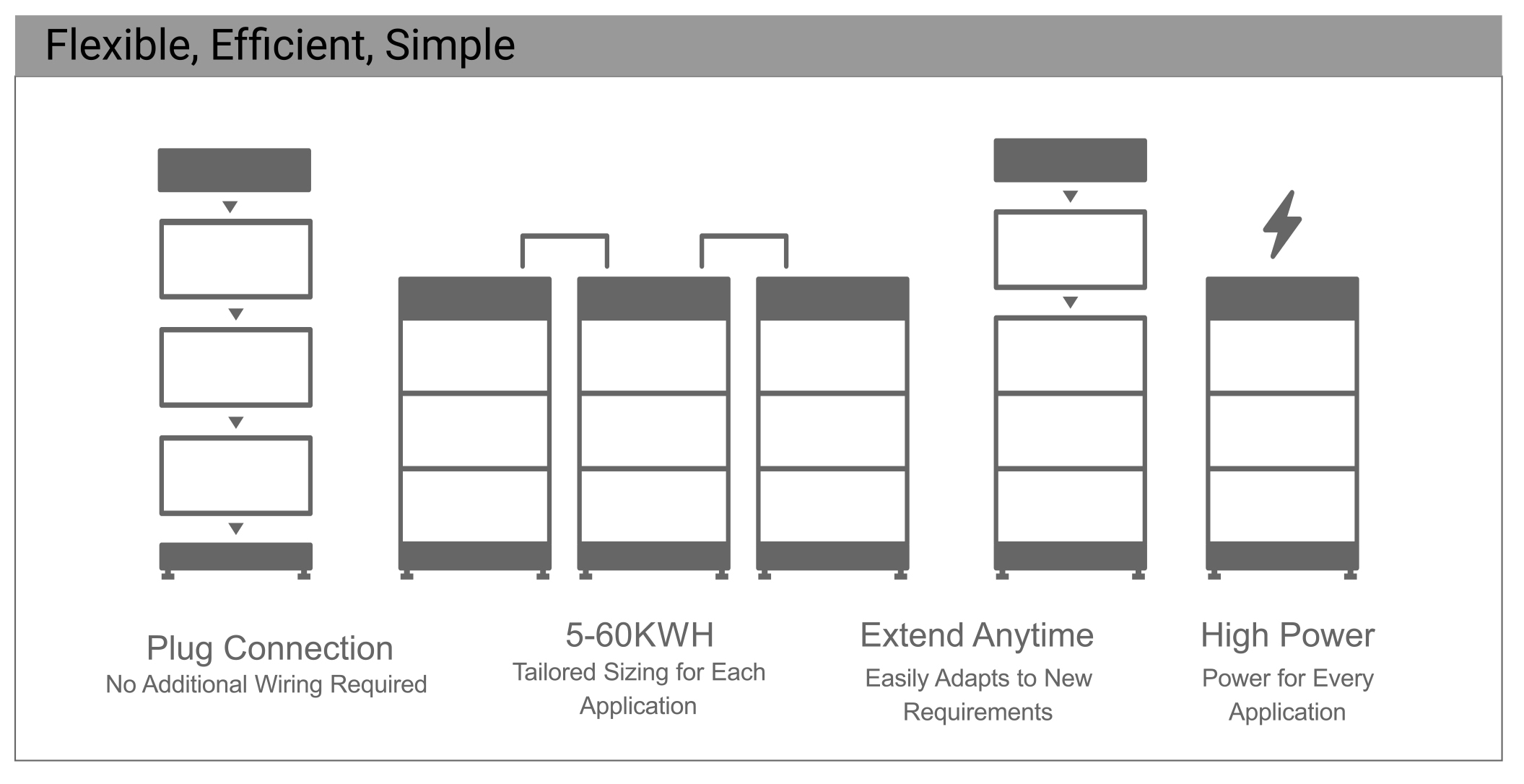

Scalable from 5 kWh to 60 kWh.


Compatible with a variety of mainstream inverter.


Maximum f|exibi1ityfor anyapp|ications with up to 12,modules connected in parallel


LFP battery, safest and long cycle life.

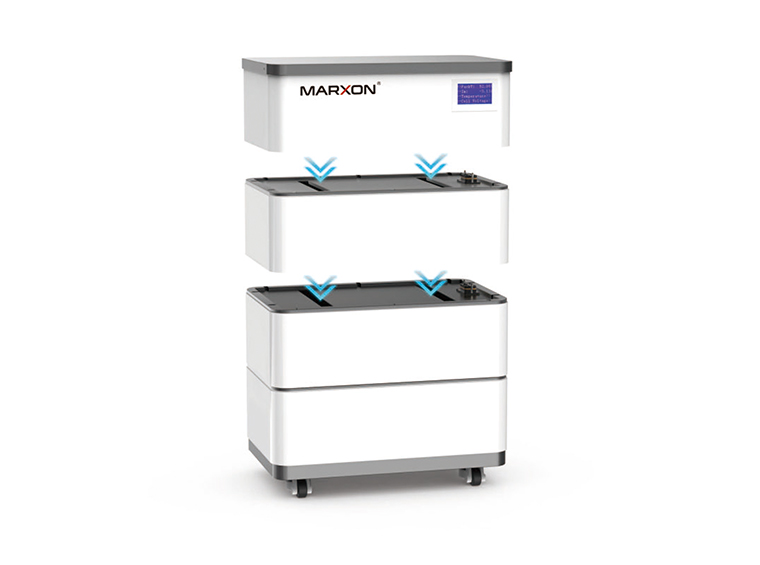

Stackable design.effortlessly installation.


Capab|e of high-powered emergency-backup,and off-grid function


Product features
Features

High Efficiency

Max. efficiency 95%.


Easy Installation

50 Kg Battery modules.


Safe and Reliable

Lithium iron phosphate battery cells.


Perfect Compatibility

Work with leading branded inverters.


Product features
Features


High Efficiency

Max. efficiency 95%.


Easy Installation

50 Kg Battery modules.


Safe and Reliable

Lithium iron phosphate battery cells.


Perfect Compatibility

Work with leading branded inverters.


Product parameters
Parameters

Item

Parameters

Model

MKS-10L-B

MKS-15L-B

MKS-20L-B

MKS-30L-B

Combination method (single battery pack)

16S1P

Rated capacity /Ah

200

300

400

600

Rated voltage /V

51.2

Limited discharge voltage /V

43.2

Limited charging voltage /V

57.6

Internal resistance (single battery pack)

≤20mΩ

Max continuous charging current /A

100

Max continuous discharging current /A

100

Operation temperature range

Charge:0~50℃/ Discharge: -10~50℃

Storage temperature range

- 20~+60℃,Recommend: ≤60±25%RH storage humidity

Single module size/weight

680*429*215mm /50Kg±1Kg

Overall size /mm

680*429*540

680*429*750

680*429*970

680*429*1380

Weight /kgs

115±1

165±1

215±1

315±1

Compatible inverters

PYLON, Sacolar,   Deye, Growatt, Sofar, Voltronic, LUX, Schneider, Afore, Sinexcel, SUNGROW, Sorotec, GoodWe,   KSTAR, Srne, Must, Megarevo, Sol-Ark, INVT, Aiswei, TBB, SAKO, Solis, SMA, Victron, SMK, BlueSun
