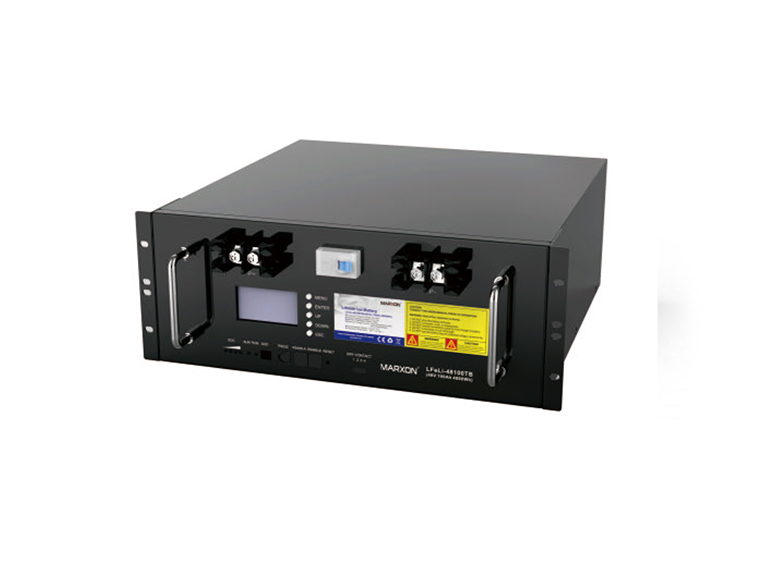

48V LiFePO4 Wall/Rack Dual use L4 series

Lithium Rack/Wall mount series

Product features

Features

More reliable and safety

Support gyroscope anti-theft and GPS anti-theft。

Advanced monitoring control

Optimized monitoring strategy through remote control and diagnosis.

Wide working temperature

Excellent high-temperature performance with a working environment temperature of -20-60Celsius degrees.

Easy operation

Friendly human-machine interface for esay operation.

More compatible to monitoring system.

Support RS232 and RS485 communication to be connected to the power environment

monitoring system.

Product parameters

Parameters

Model	MKS-HWR4850L4	MKS-HWR48100L4	MKS-HWR48150L4A	MKS-HWR48150L4B	MKS-HWR48200L4
Rated capacity(5HR)	50AH	100 Ah	150AH	150AH	200Ah
Nominal voltage	48.0 V	48.0V	48.0 V	48.0 V	48V
Discharge ending voltage	40.5V	40.5V	40.5V	40.5V	40.5V
Charging limited voltage	54.0V	54.0V	54.0V	54.0V	54V
Max. charging current	50.0A	100A	100A	100A	100A
Max. continue discharging current	50.0A	100A	100A	100A	100A
Weight	Approx. 32 Kg	Approx. 41 Kg	Approx. 65 Kg	Approx. 65 Kg	Approx.83 Kg
Display	With a LCD display screen	With a LCD display screen	Without a display screen	With a LCD display screen	With a LCD display screen
Parallel connection	Parallel connection is optional(up to 16P)	Parallel connection is optional(up to 16P)	Parallel connection is optional (up to 32P)		Parallel connection is optional(up to 16P)
Dimensions (WDH) mm	442442132	442450132	442520198		442550244
Containing cell	3.2V50Ah	3.2V 100Ah	3.2V150Ah		3.2V 200Ah
Design life	More than 15 years
Cycle life	More than 5000 cycles at 80% DOD
IP class	IP30
Outer package material	Black bake lacquer steel case (battery rack or cabinet is optional)
Operating temperature	Charging: 0℃ to +50℃; Discharging: -20℃ to +60℃; Storage: -20℃ to +60℃
