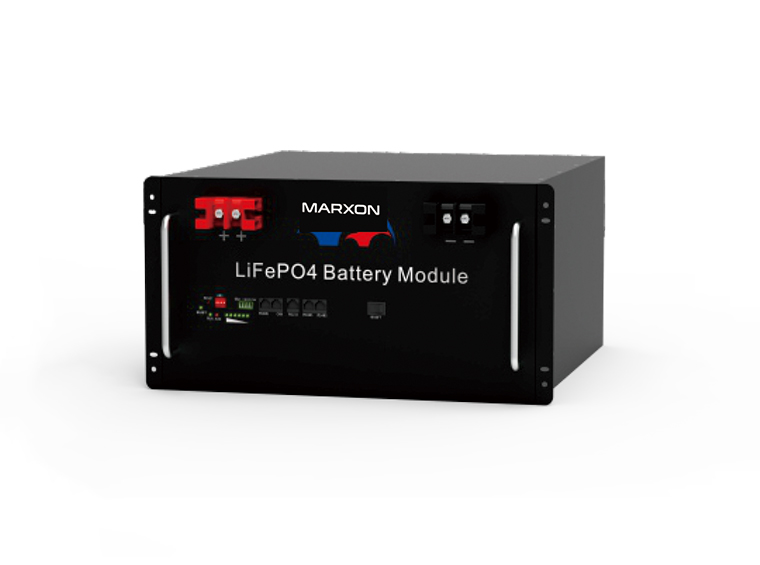

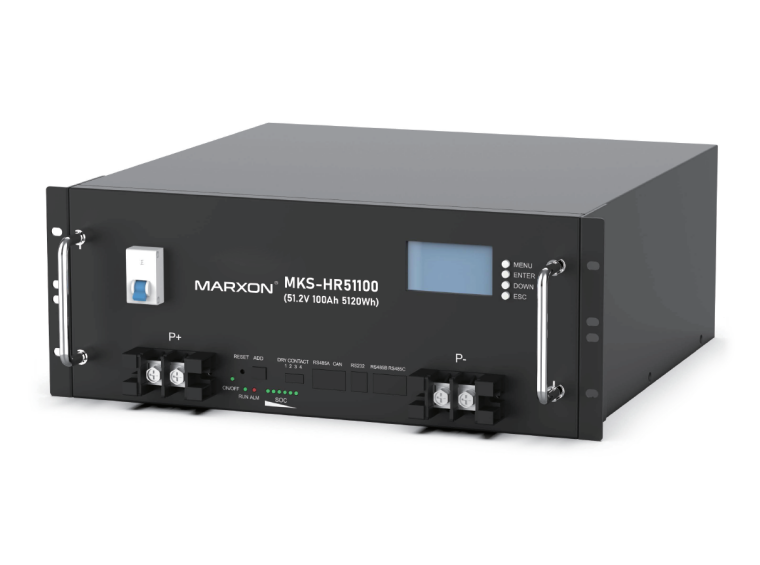

51.2V LiFeP04 Wall/Rack Dual use Y4 series
Energy storage cabinet Series
Product features
Features
Larger capacity supply equipment cabinet.
No active cooling system is required.
High operational reliability.
They live for more than 10 years at+25 °C.
Optimal management.
In line with the RoHS.
Product parameters
Parameters
| Model | MKS-HWR5150Y4 | MKS-HWR5180Y4 | MKS-HWR51100Y4 | MKS-HWR51120Y4 | MKS-HWR51150Y4 | MKS-HWR51200Y4 | |
| Electrical Characteristics | Rate voltage(Vdc) | 51.2 | 51.2 | 51.2 | 51.2 | 51.2 | 51.2 |
| Rate capacity(AH) | 50 | 80 | 100 | 120 | 150 | 200 | |
| Energy storage(KWH) | 2.5 | 4.0 | 5.0 | 6.0 | 7.5 | 10.0 | |
| Cycle life | ≥ 6000 cycles to 85% DOD | ||||||
| Months self discharge | ≤2% | ||||||
| Efficiency of charge | 100% at 0.2C | ||||||
| Efficiency of discharge | 96-99% at 1C | ||||||
| Standard Charge | Charge voltage | 58.4 | |||||
| Charge mode | 0.2C to 58.4V, then 58.4V,charge current to 0.02C(CC/CV) | ||||||
| Charge current(A) | 10 | 16 | 20 | 24 | 30 | 40 | |
| Max. charge current(A) | 50 | 80 | 100 | 120 | 120 | 200 | |
| Charge cut-o ffvoltage(VDC) | 58.4 | ||||||
| Standard Discharge | Contiunous current(A) | 50 | 80 | 100 | 120 | 120 | 200 |
| Discharge cut-o ffvoltage(VDC) | 44.8 | ||||||
| Charge temperature | 0℃ to 45℃ | ||||||
| Discharge temperature | -20℃ to 60℃ | ||||||
| Environmental | Storage temperature | 0℃ to 40℃ | |||||
| Mechanical | IP class | IP60 | |||||
| Material system | LiFePO4 | ||||||
| Case material | Metal | ||||||
| Case type | Rack/Wall mount | ||||||
| Pack dimensions L*W*H(mm) | 451*450(492)*177 | 465*440(482)*191490*440(482)*191 | 490*440(482)*191 | 490*442(484)*250 | 490*442*290 | ||
| Package dimension L*W*H(mm) | 545*525*255 | 560*515*265 | 585*515*345 | 585*515*345 | 575*515*325 | 600*600*325 | |
| Net weight(kg) | 39 | 39.9 | 67.8 | 72 | 79 | 79 | |
| Gross weight(kg) | 42 | 42.5 | 72 | 76 | 82 | 83.2 | |
| Terminal | M8 | ||||||
| Protocol(Optional) | CANBus/RS485/RS232 | ||||||
| SOC (Optional) | LED/LCD | ||||||
| The quality assurance period | 60 Months | ||||||
