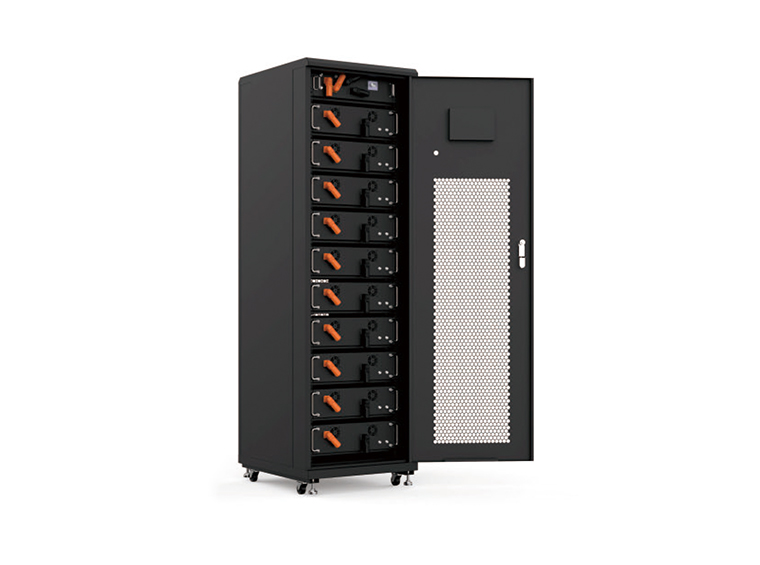

Energy storage cube High Voltage L5 Series
Energy storage cabinet Series
Product features
Features
Hospital, bank, airport, power plant and other systems.
Solar energy storage cabinet.
Long-last UPS battery.
Telephone switch, telecom room SMR, hospitals, Banks and large and medium-sized enterprises application distributed server room independent UPS.
Product parameters
Parameters
| Technical Specification | MKS-HC384100L5 | MKS-HC410100L5 | MKS-HC512100L5 | MKS-HC614100L5 | |
| Electrical Characteristics | Rate voltage(Vdc) | 384 | 409.6 | 512 | 614.4 |
| Rate capacity(AH) | 100 | 100 | 100 | 100 | |
| Energy storage(KWH) | 38.4 | 40.9 | 51.2 | 61.44 | |
| Cycle life | ≥4000 cycles to 85% DOD | ||||
| Months self discharge | ≤2% | ||||
| Efficiency of charge | 100% at 0.2C | ||||
| Efficiency of discharge | 96-99% at 1C | ||||
| Standard Charge | Charge voltage(Vdc) | 432 | 460.8 | 576 | 691.2 |
| Charge mode(Per cell) | CC/CV | ||||
| Recommend charge current(A) | 30 | 30 | 30 | 30 | |
| Max. charge current(A) | 100 | 100 | 100 | 100 | |
| Charge cut-offvoltage(VDC) | 432 | 460.8 | 576 | 691.2 | |
| Standard Discharge | Contiunous current(A) | 100 | 100 | 100 | 100 |
| Discharge cut-offvoltage(VDC) | 336 | 358.4 | 448 | 548.8 | |
| Environmental | Charge temperature | 0 ℃ to 45 ℃ | |||
| Discharge temperature | -20 C to 60 C | ||||
| Storage temperature | 0 ℃ to 40 ℃ | ||||
| IP class | IP60 | ||||
| Mechanical | Material system | LiFePO4 | |||
| Case material | Metal | ||||
| Case type | Rack mount | ||||
| Pack dimensions L*W*H(mm) | 600*650*1880 | 600*650*1880 | 600*650*2100 | 2*(600*650*1880) | |
| Package dimensions L*W*H(mm) | 620*670*2000 | 620*670*2000 | 620*670*2120 | 2*(620*670*2000) | |
| Net weight(kg) | 150 | 145 | 255 | 305 | |
| Gross weight(kg) | 153 | 193 | 305 | 385 | |
| Terminal | M8 | ||||
| Protocol(Optional) | CANBus/RS485/RS232 | ||||
| SOC(Optional) | LED/LCD | ||||
| The quality assurance period | 60 Months | ||||
