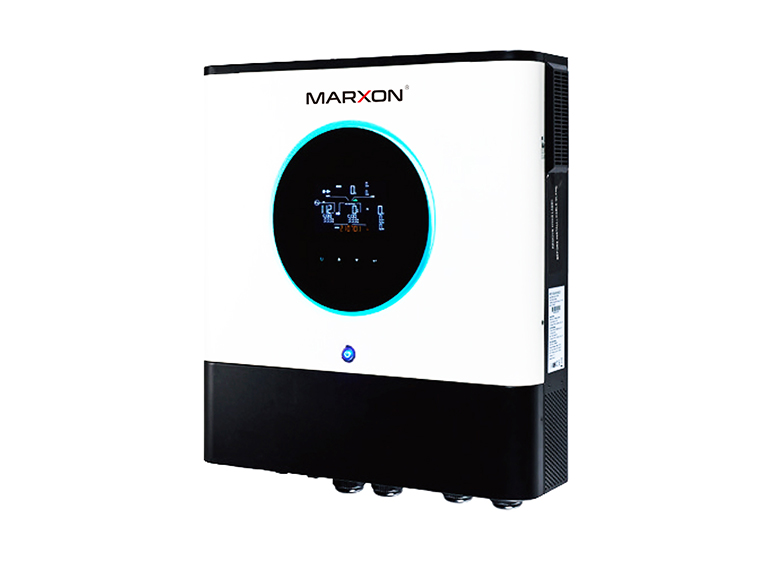

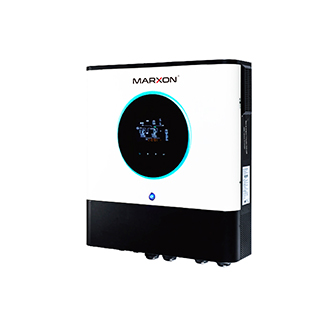

MKS VMA split-phase Series
Off Grid Inverter

  • Status indication with RGB lights

  • Built-in Wi-Fi for mobile monitoring (Android/i0s App is available)

  • Supports USB On-the-Go function

  • Reserved communication port for BMS

  • Replaceable fan design for ease of maintenance

  • Batteryindependent design

  • Configurable AC/PV output usage timer and prioritization

  • Selectable high power charging current

  • Selectable input voltage range for home appliances and personal computers

  • Compatible to utility mains or generator input

  • Built-in anti-dust kit

  • Parallel operation with 6 units


Product parameters
Parameters

Product Model

MKS-LW6K5-VMA

Rated output power

6.5KW

Parallel capability

YES, 6 units

Input

Voltage

120 VAC

Selectable voltage   range

90-140 VAC (For computers); 80- 140 VAC   (For home appliances)

Frequency range

50 Hz/60 Hz (Auto sensing)

Output

AC Voltage regulation(Batt.   mode)

120VAC ± 5%

Surge power

13000VA

Efficiency   (peak)

91%

Transfer time

10 ms (For personal computers), 20ms(For   home appliances)

Waveform

Pure sine wave

No load power   consumption

< 75W

DC voltage

12VDC±5%,100W

Battery

Battery voltage

48 VDC

Floating charge   voltage

54 VDC

Overcharge protection

66 VDC

Solar charger & AC charger

Solar charger type

MPPT

Maxlmum PV array   power

8000W (4000W x 2)

MPPT Range @Operating voltage

90~230VDC

Maximum PV array   open circuit voltage

250 VDC

Maximum solar charge current

120A

Maximum AC charge   current

120A

Maximum charge current

120A

Physical

Dimension, D x W x H (mm)

158.4 x 503.6 x 530.8

Net welght (kgs)

20

Communication intarface

USB/RS232/RS485/WiFi/Dry-contact

Operating   Enviroment

Humidity

5% to 95 % Relative humidity(Non-condensing)

Operating   temperature

-10° C to 50° C

Storage temperature

-15° C to 60° C

Standard


Compliance safaty

UL

Degree of   protection

IP20
