Home > Products > > MKS HES series On & Off Grid Inverter

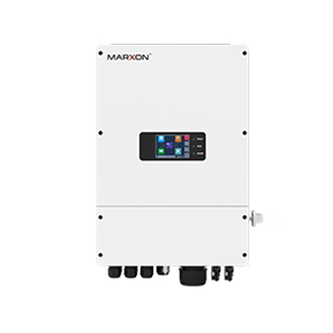

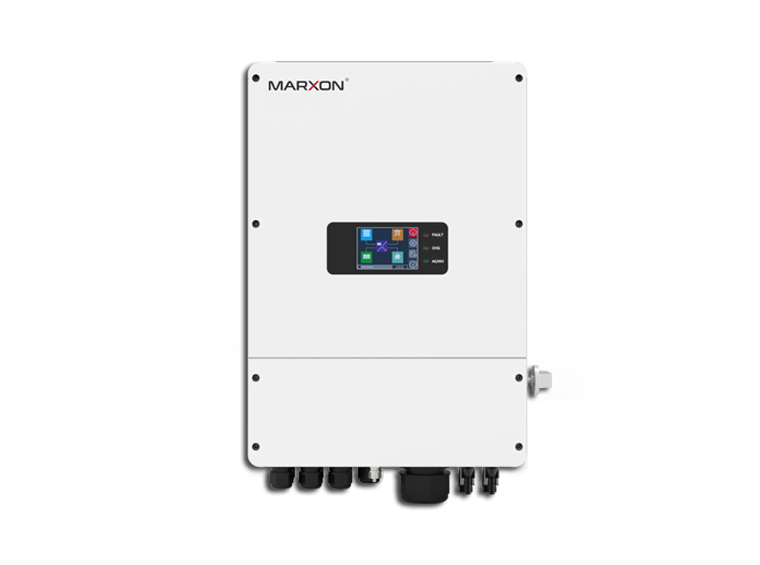

MKS HES series
On & Off Grid Inverter

IP65 Rated

Engineered to last with maximum flexibility.Suitable for outdoor installation


BMS

BMS Communication for lithium battery


Easy access

Accessible through a LcD touch screen andthrough the web.


5 Years Warranty

Supplied with a full manufacturers warranty


On-Grid and Off-Grid

MX-R HES series is suitable foron-grid and off-grid applications.


Remote Monitoring

Control and monitor your smart system on themove via our monitoring App and website.


Flexible Rate Tariff

Charge from the grid at off-peak timewhen energyis cheaper,and discharge atpeaktime when energy is more expensive.








Product parameters
Parameters
Technical   SpecificationMKS-HW6K-HES
Rated output power(Kw)6
INPUT(PV)
Max. power(kW)7.5
Max. DC voltage(V)550
MPPT voltage range(V)90~450
Max. short circuit current(A)30
MPPT number/Max. input strings   number1/2
AC OUTPUT
Grid voltage/range(V)230/176-270
Frequency(Hz)50/60
PF0.8lagging-0.8leading
THDi<3%
AC output topologyL+N+PE
BATTERY
Battery voltage range(V)40~58
Max. charging voltage(V)58
Max. charge/discharge   current(A)100/140
Battery typeLithium /Lead-acid
UPS OUTPUT
Rated power (kw)6
Rated output voltage(V)230
Rated output current(A)27
Rated frequency (Hz)50/60
Transfer Time(ms)<10
GENERAL PARAMTER
Efficiency(Peak)94%
Degree of protectionIP65
Operation temperature-25℃~ 60℃, >45℃ derating
Coolingsmart cooling
Relatve humidity0~95%(non-condensing)
Altitude(>2,000m Derating)
Dimensions Wx D x H (mm)360*195*660
Net weight(KG)22.5
Isolation transformerNo
Self-consumption(W)<5
InterfaceStandard:RS485,RS232,CAN, Optional: Lan, 4G,   Bluetooth, Wifi
Safety standardEN/IEC 62109-1，EN/IEC 62109-2



Download
MKS HES series
On & Off Grid Inverter
PDF
