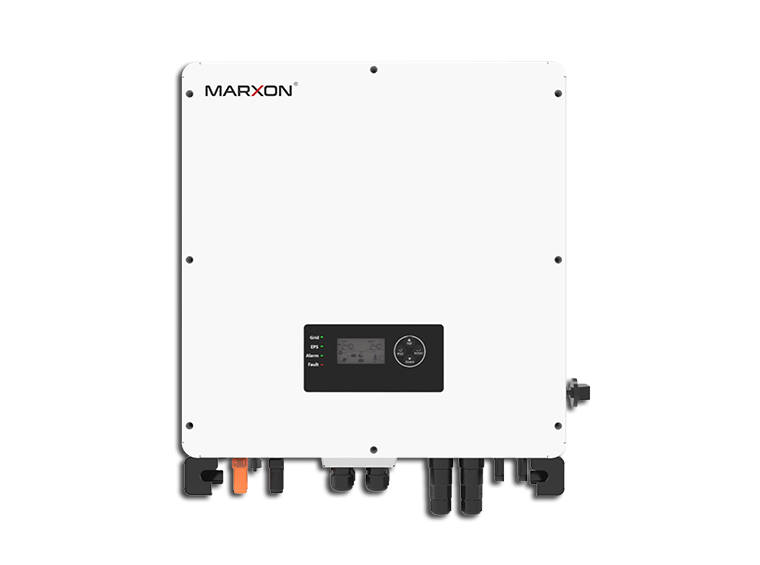

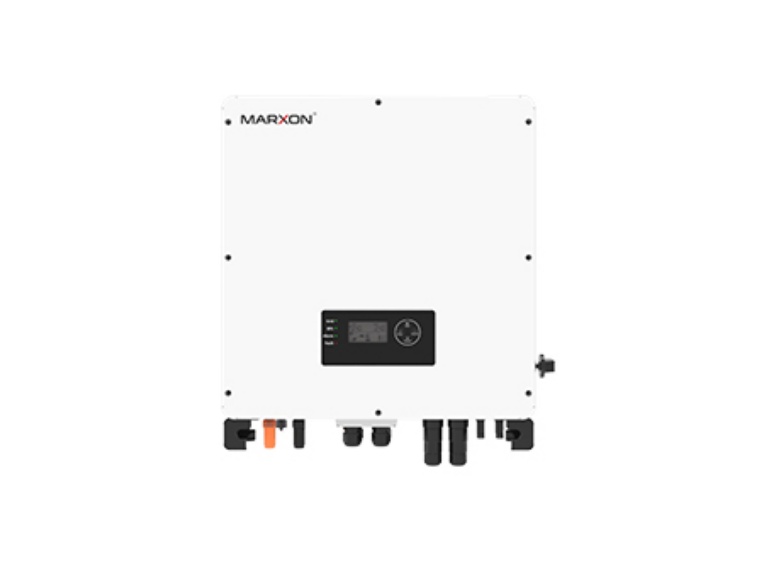

MKS SIE series
Hybrid Inverter

On-Grid and Off-Grid

  • Suitable for on-grid and off-grid applications.

Easy Access

  • Accessible via LCD touch screen and web.

  • Two outputs for smart load management.

BMS

  • BMS communication for lithium battery.

Flexible Rate Tariff

  • Charge from the grid at off-peak time (cheaper energy) and discharge at peak time (more expensive energy).

Remote Monitoring

  • Charge from the grid at off-peak time (cheaper energy) and discharge at peak time (more expensive energy).

Safe

  • Built-in anti-dust kit for harsh environments.

  • AC overcurrent, overvoltage, overtemperature protection.


Product parameters
Parameters

Product   Model

MKS-HW5K-SIE

MKS-HW6K-SIE

Rated   output power

5KW

6KW

Efficiency

DC   Max.efficiency

97.50%

Europe   efficiency

97%

Input(PV)

Max.power

8KW

9.6KW

Max.DC   voltage(V)

550

MPPT   voltage range(V)

90-500

Max.input current of single MPPT(A)

16/16

MPPT   tracker/strings

2/1

AC output

Max.output   current(A)

21.7

26

Grid voltage/range(V)

230/176-270

Frequency(Hz)

50 /60

PF

0.8lagging-0.8leading

THDi

<3%

AC   output topology

L+N+PE

Battery

Battery   voltage range(V)

40~58

Max.   charging voltage(V)

58

Max. charge/discharge current(A)

100/110

Battery   type

Lithium /Lead-acid

UPS output

Rated   power

5KW

6KW

Rated   output voltage(V)

230

Rated   output current(A)

21.7

26

Rated   frequency(Hz)

50/60

Transfer   time(ms)

<10

General Parameter

Degree   of protection

IP65

Operation   temperature

-25° C~ 60° C

Cooling

Natural

Relative   humidity

0~95%(Non-condensing)

Altitude

(>2,000m Derating)

DimensionsWxDxH(mm)

480*210*495

Net   Weight(kG)

25

25

lsolation   transformer

No

Self-consumption(W)

<5

Display and communication

Display

LCD

Interface

Standard:RS485,CAN,DRM;Optional:Lan,WiFi,4G,Bluetooth

Safety standard

CE-EMC/ENIEC   61000-6-3:2021,ENIEC61000-6-1:2019:CEVOCEC62109-1-   2010,1EC62109-2-2011,EC62477- 1:2022COCNDE4105:2018,VDE0124:2020:COC/CE10-

21:2022;COCTORTPeAB:2022,OVER25:2020;G98:2022,G99:2022

Degree   of protection

IP65
