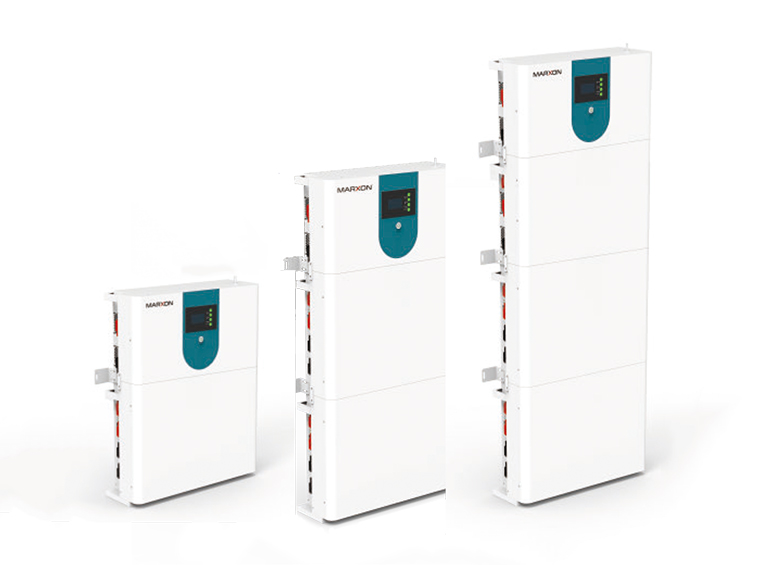

MKS PRO series
Stackable All in one Series
Product features
Features
High energy density
Excellent high and low temperature
performance
Certain energies are high
Good safety performance
Long cycle life
Rapid charge and discharge
Low self-discharge rate
Parallel connection,up to 15
Large capacity,long lite
Can be wall hanging , can be stacked
Product parameters
Parameters
| INVERTER MODULE | MKS-LW3K5-PRO/ MKS-HR24100X1 | MKS-LW5K5-PRO/ MKS-HR48100X2 | MKS-LW6K5-PRO/ MKS-HR48100X3 |
| Rated output power | 3.5KW | 5.5KW | 6.5KW |
| Rated battery voltage | 24V | 48V | |
| Max. charge/discharge current | 100A/150A | ||
| Max. input voltage | 500VDC | ||
| Rated input voltage | 360VDC | ||
| MPPT operating voltage range | 120~450VDC | ||
| Number of MPPT trackers | |||
| Max. input current per MPPT | 100A(Max) | ||
| Rated grid voltage | L/N/PE, 220V/230V/240V,50Hz/60Hz | ||
| Grid voltage range | 170Vac-280Vac (According to local standard) | ||
| Rated AC power | 3500W | 5500W | 6500W |
| Max. AC power output to utility grid | 3500VA | 5500VA | 6500VA |
| Rated voltage,Frequency(Off-grid) | 220V/230V, 50/60Hz | ||
| Max. apparent power(Off-grid) | 3500VA | 5500VA | 6500VA |
| Transfer time | <10ms | ||
| Max efficiency of solar inverter | 97.70% | 97.80% | |
| European efficiency of solar inverter | 97.00% | 97.10% | |
| Dimensions W x D x H (mm) | 640*200*350 | ||
| Net Weight(KG) | 22.5 | ||
| Degree of protection | IP20 | ||
| Display | LCD &APP+Bluetooh | ||
| Communication | RS485/Bluetooth/Ethernet, Optional: WiFi/4G/GPRS | ||
| BATTERY MODULE | MX24100X1 | MX48100X2 | MX48100X3 |
| Batteries materials | Lithium iron phosphate | ||
| Series parallel mode (S series, P parallel) | 8S1P | 16S1P | 16S1P |
| Rate voltage | 25.6V | 51.2V | 51.2V |
| Rate capacity | 100Ah | 200Ah | 300Ah |
| Size( mm ) | 588*430*195 (monomer) | 588*430*195 (monomer) | 588*430*195 (monomer) |
| Weight | 48kg (Battery pack) | 96kg(Battery pack) | 144kg (Battery pack) |
| Color | Optional | ||
| Charging way | CC/CV | ||
| Charging current | 0.2C(standard) | ||
| Maximum charging current | Max1C @25℃ | ||
| Charge cut-off voltage | 58.4V | ||
| Discharge way | CP/VP | ||
| Discharge current | 1C | ||
| Maximum discharge current | Max1C @25℃ | ||
| Discharge cut-off voltage | 44.8V | ||
| Communication interface | RS485/RS232/CAN | ||
| Charging operating temperature | charging:0~+50℃ | ||
| Dischargeoperating temperature | discharge:-20~+55℃ | ||
| The quality assurance period | 60 months | ||
| Degree of protection | IP20 | ||
