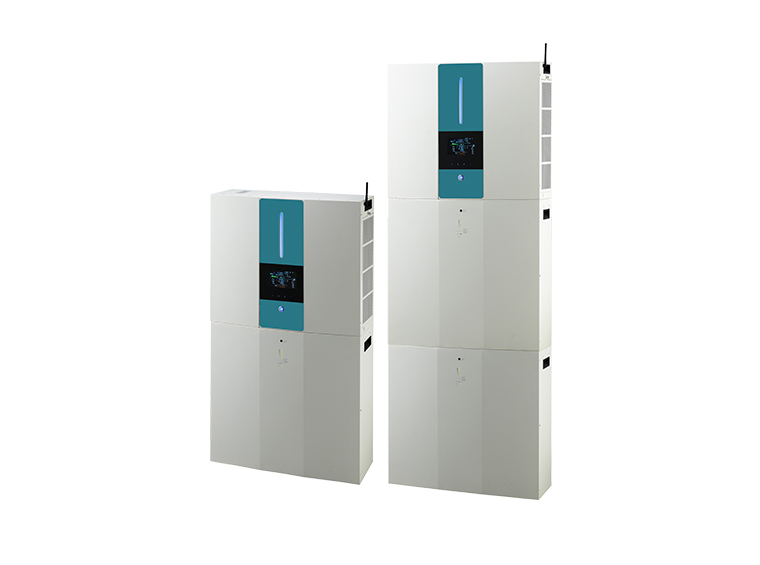

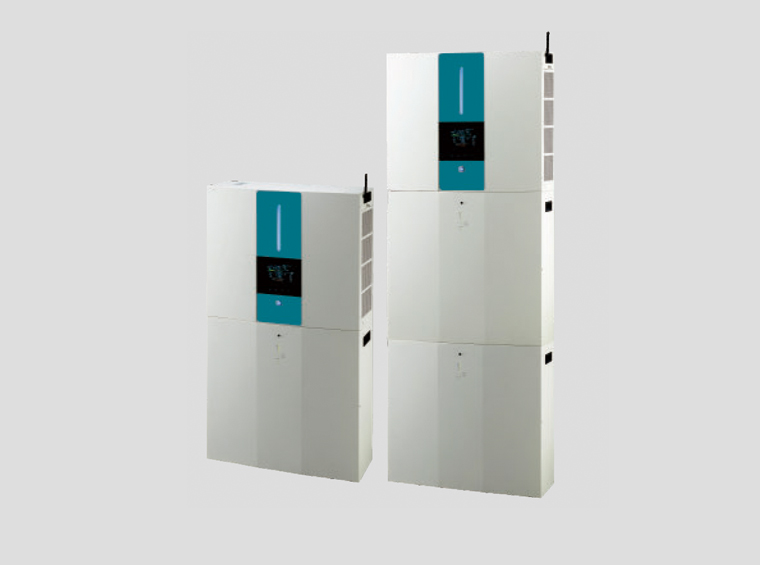

MKS PLUS series
Stackable All in one Series
Product features
Features
Integrated 5 5kw hybrid solar inverter and lithium-ion battery module.
Self-consumption and Feed-back to the Grid.
Programmable supply priority for PV , battery or Grid.
User-adjustable battery charging
current.
Programmable multiple operation
modes : Grid-tie ,off-grid and grid-tie with backup.
Built-in timer for various mode of on /off operation.
Multiple communication for USB ,
RS232 , Modbus ,SNMP . GPRS and Wi-Fi.
Monitoring software for real-time
status display and control.
Enhance AC / Solar charger to 100A Scalable Li-lon battery expansion Li-lon battery life cycle : 8000 cycles at 25 C.
High surge discharging current up to 3C.
IP 20.
Product parameters
Parameters
| Technical Specification | MKS-HW5K5-PLUS/MKS-HR48100X1 |
| Rated output power | 5500W |
| PV input (DC) | |
| Nominal DC voltage / maximum DC voltage | 360 VDC/ 500 VDC |
| Start-up voltage / initial feeding voltage | 116 VDC/150 VDC |
| MPP voltage range | 120 VDC ~450 VDC |
| Number of MPP trackers / maximum input current | 2/2×13A |
| Grid output | |
| Nominal output voltage | 208/220/230/240 VAC |
| Output voltage range | 184-264.5 VAC* |
| Max. output current | 23.9A* |
| Maximum conversion efficiency (DC/AC) | 96% |
| European efficiency @ vnominal | 95% |
| AC input | |
| AC start-up voltage / auto restart voltage | 120 - 140 VAC / 180 VAC |
| Acceptable input voltage range | 170-280 VAC |
| Maximum AC input current | 40A |
| Battery mode output (AC) | |
| Nominal output voltage | 208/220/230/240 VAC |
| Efficiency (DC to AC) | 93% |
| Battery charger | |
| Nominal DC voltage | 51.2 VDC |
| Maximum charging current | 100A |
| Physical | |
| Dimension, D x Wx H (mm) | 214×621×500 |
| Net weight (kgs) | 25 |
| Standard | |
| Compliance safety | IEC/EN 62109-1/-2， IEC 62040-1， EN 61000-6-4， EN IEC 61000-6-2， EN IEC 61000-3-11，EN 61000-3-12， IEC 61727， IEC 62116， G99, NRS 097-2-1，EN 50549-1 |
| BATTERY MODULE MKS-HR48100X1 | |
| Capacity | 5000Wh |
| Parameters | |
| Nominal voltage | 51.2VDC |
| Full charge voltage (FC) | 56V |
| Full discharge voltage (FD) | 42V |
| Typical capacity | 100Ah |
| Max continuous discharging current | 150A |
| Max discharging current | 192A at 1min |
| Protection | BMS, breaker |
| Charge voltage | 56V |
| Charge current | 20A(0.2C) |
| Maximum charge current | 50A(0.5C) |
| Dimension, D X WX H (mm) | 214×621×550 |
| Net weight (kgs) | 55 |
| Standard | |
| Compliance safety | IEC 62619， EN 61000-6-3， EN 61000-6-1， UKCA, UN38.3 |
| Degree of protection | IP20 |
