100W

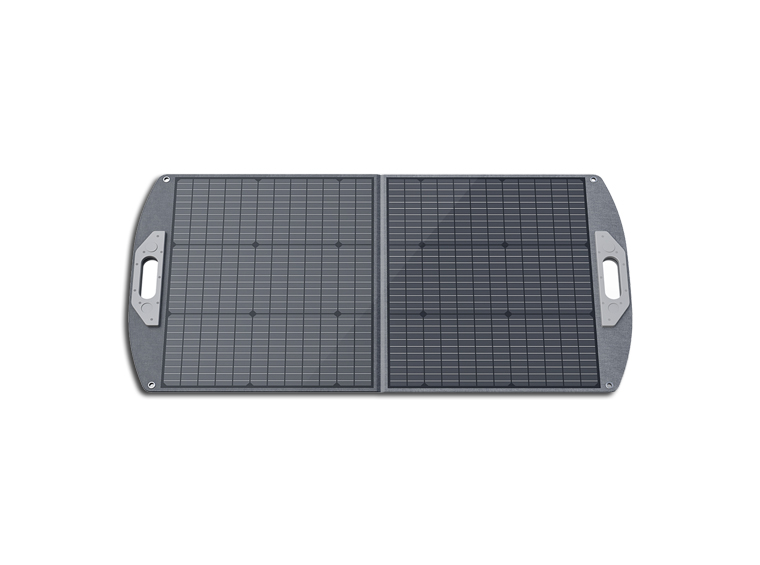

Solar Panel

The Marxon Solar Panel comes with a portable carry case that can be used as a sturdy stand to provide a flexible angle for instant set-up. For outdoor travel and camping, the recommended angle ensures maximum sunlight absorption.

Anderson solar port is compatible with Marxon G300 Portale Power Station and many others.


High Solar Conversion Efficiency: With an efficiency of up to 23.5%, the solar panel outperforms in converting more solar power under similar conditions.


Product features
Features

Up to 23.5% cutting-edge solar conversion rate, creating a higher charging efficiency system together with the built-in smart MPPT of all of Marxon's portable power stations to achieve full charge in the shortest possible time.

Maron 100W  Solar Panel comes with a foldable and compact design for convenient use while you are on the go. The ETFE coating is designed for high-level resistance, strong, and durable. The IP67 waterproof rating can withstand water splash, which is perfect for outdoor like camping, fishing, and hiking. With the rubber handle and  adjustable stens, it's super easy to carry and adjust the angle while you're on road.

The 100W solar panel can be connected to the Marxon Power Stations in three simple ways: directly, in series, and in parallel. While you're outdoors, it can totally cater to your basic power requirements.




Product features
Features


Up to 23.5% cutting-edge solar conversion rate, creating a higher charging efficiency system together with the built-in smart MPPT of all of Marxon's portable power stations to achieve full charge in the shortest possible time.

Maron 100W  Solar Panel comes with a foldable and compact design for convenient use while you are on the go. The ETFE coating is designed for high-level resistance, strong, and durable. The IP67 waterproof rating can withstand water splash, which is perfect for outdoor like camping, fishing, and hiking. With the rubber handle and  adjustable stens, it's super easy to carry and adjust the angle while you're on road.

The 100W solar panel can be connected to the Marxon Power Stations in three simple ways: directly, in series, and in parallel. While you're outdoors, it can totally cater to your basic power requirements.



Product parameters
Parameters
100W Technical Specifications
Product Model NO. PETC-S100
Peak Power100W
Tolerance±10%
Cell Type MONO
Conversion Efficiency21.5-23.5%
Power Voltage (Vmp)18V
Power Current (Imp)5.5A
Open Circuit Voltage (Voc)24.5V
Short Circuit Voltage (Isc)6.1A
Output PortMC4
Operating Temperature Range-10°C~65°C
Storage Ambient Temperature -20°C~60°C
Maximum Power Temperature   Coefficient=-0.45%/°C
Open Circuit Voltage   Temperature Coefficient=-0.35%/°C
Temperature Coefficient of Short Circuit Current =0.05%/°C
Total Transmittance97%
Moisture Permeability40°C/90%RH g/M² .Day
Water Absorption Rate 2.5%(24H)
Test Standard ConditionsAm1.5  25°C 1000W/m2
Folded Size582*577*50MM
Unfolded Size 1154*582*5.5MM
Net Weight 4.45KG
RemarksTesting Environment (STC):
Spectral Energy: 1KW/m2
Air Pressure: AM=1.5 The light conditions
are 38000W Lux (Lighting Unit)
Electronic Load Test: 38000W Lux
