200W

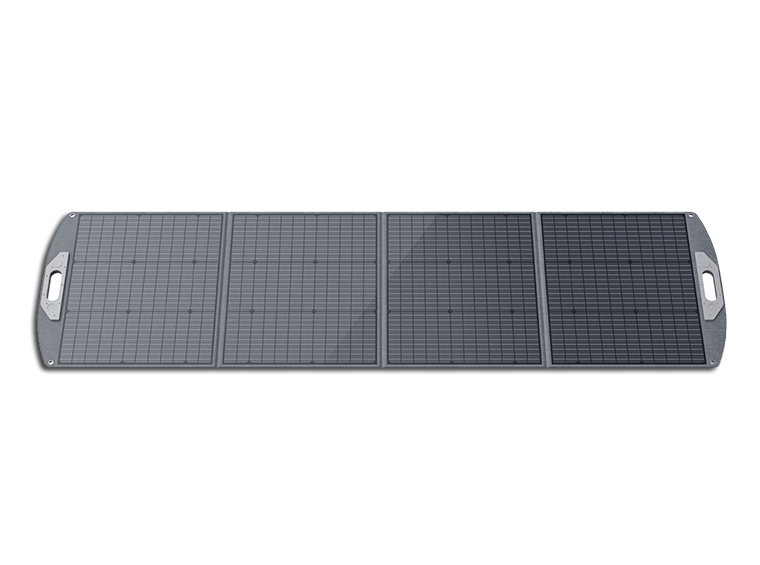

Solar Panel

The Marxon Solar Panel comes with a portable carry case that can be used as a sturdy stand to provide a flexible angle for instant set-up. For outdoor travel and camping, the recommended angle ensures maximum sunlight absorption.


Equipped with MC4 to Anderson Connection Cable, you can connect multiple 200W solar panels in series or parallel to gain maximum solar power.


With an efficiency of up to 23.5%, the solar panel outperforms in converting more solar power under similar conditions.


Anderson solar port is compatible with Marxon G300 Portale Power Station and many others.

Product features
Features

Up to 23.5% cutting-edge solar conversion rate, creating a higher charging efficiency system together with the built-in smart MPPT of all of Marxon's portable power stations to achieve full charge in the shortest possible time.
Marxon Solar Panel comes with a foldable and compact design for convenient use while you are on the go. The adjustable stents are for easy angle adjustment. The rubber and burry-free handle are for your comfortable carry.
The 200W solar panel can be connected to the Marxon Power Stations in three simple ways: directly, in series, and in parallel. While you're outdoors, it can totally cater to your basic power requirements.


Product features
Features


Up to 23.5% cutting-edge solar conversion rate, creating a higher charging efficiency system together with the built-in smart MPPT of all of Marxon's portable power stations to achieve full charge in the shortest possible time.
Marxon Solar Panel comes with a foldable and compact design for convenient use while you are on the go. The adjustable stents are for easy angle adjustment. The rubber and burry-free handle are for your comfortable carry.
The 200W solar panel can be connected to the Marxon Power Stations in three simple ways: directly, in series, and in parallel. While you're outdoors, it can totally cater to your basic power requirements.


Product parameters
Parameters
200W Technical Specifications
Product Model NO.PETC-S200
Peak Power200W
Tolerance±10%
Cell Type MONO
Conversion Efficiency21.5-23.5%
Power Voltage (Vmp)18V
Power Current (Imp)11.1A
Open Circuit Voltage (Voc)24.5V
Short Circuit Voltage (Isc)12.3A
Output PortMC4
Operating Temperature Range-10°C~65°C
Storage Ambient Temperature -10°C~65°C
Maximum Power Temperature   Coefficient-0.45%/°C
Open Circuit Voltage   Temperature Coefficient-0.35%/°C
Temperature Coefficient of Short Circuit Current+0.05%/°C
Total Transmittance 97%
Moisture Permeability40°C/90%RH g/M² .Day
Water Absorption Rate 2.5%(24H)
Test Standard ConditionsAm1.5   25°C 1000W/m2
Folded Size582*580*60MM
Unfolded Size 2167*582*5.5MM
Net Weight 8.16KG
RemarksTesting Environment (STC):
Spectral Energy: 1KW/m2
Air Pressure: AM=1.5 The light conditions
are 38000W Lux (Lighting Unit)
Electronic Load Test: 38000W Lux
