Home > Products > > Epoch All In One Battery Storage Cabinet
Epoch

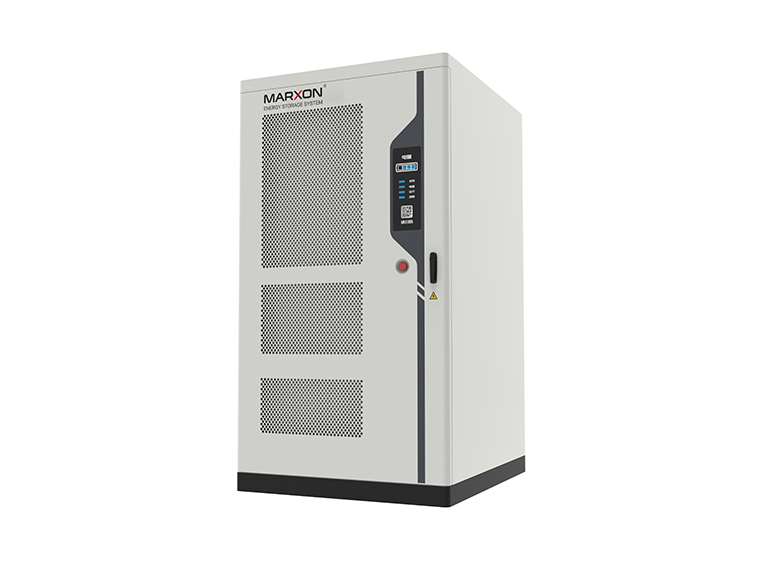

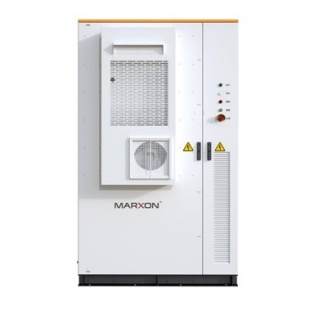

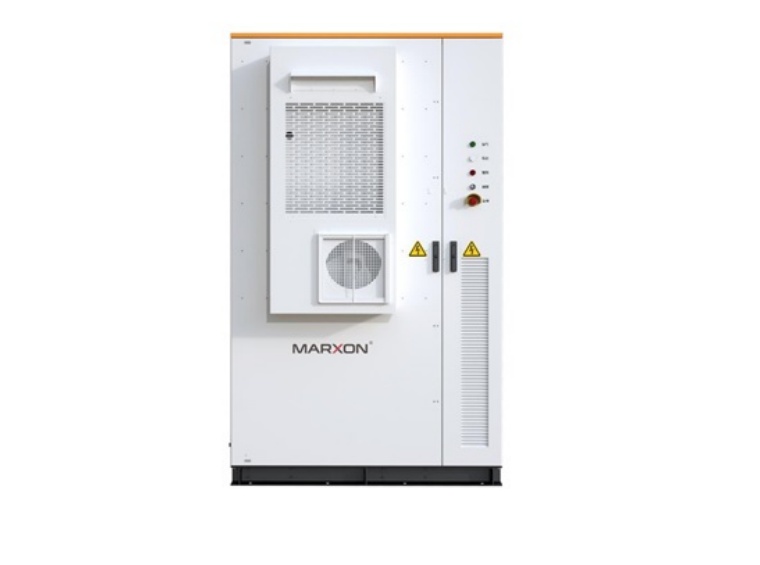

All In One Battery Storage Cabinet
Product features
Features

All-in-one Integrated design.


Multi -level fire protection design.


Provide multiple parallel .


Provide grid or off-grid.


Peak-load shifting, virtual power plant, intelligent switching of multi-mode energy control strategy.



Product features
Features


All-in-one Integrated design.


Multi -level fire protection design.


Provide multiple parallel .


Provide grid or off-grid.


Peak-load shifting, virtual power plant, intelligent switching of multi-mode energy control strategy.



Product parameters
Parameters
System modelEpoch-S100/215-WEpoch-S100/200-W
DC side parameters
Cell typeLFP280LFP280
Configuration1P16S 1P16S
Cluster configuration1P240S/15 modules1P224S/14 modules
System Configuration1*1P240S1*1P224S
Nominal capacity215.04kWh200.07kWh
Battery voltage range672~864Vdc627~804.4Vdc
Charge and discharge rate0.5C0.5C
AC side parameters
Rated power100kVA100kVA
AC voltage400Vac/360~440Vac400Vac/360~440Vac
Grid frequency50/60Hz±2Hz50/60Hz±2Hz
AC method3P4W+PE3P4W+PE
Power factor-1~1-1~1
Maximum THD＜3%(@rated power)＜3%(@rated power)
System parameters
Dimension(W*D*H)1600*1300*2350mm1600*1300*2350mm
Weight2.2t2.1t
IP levelIP54IP54
AltitudeNo derating below 2000mNo derating below 2000m
Operating temperature-20℃~55℃-20℃~55℃
Operating noise≤75dB(A)≤75dB(A)
Cooling modeAir coolingAir cooling
Fire Fighting SystemAerosols+PerfluorohexanoneAerosols+Perfluorohexanone
ProtocolModbus TCP/RTUModbus TCP/RTU
StandardsGB/T36276、GB/T34131、IEC62619
