100kW/215kWh&100kW/232kWh

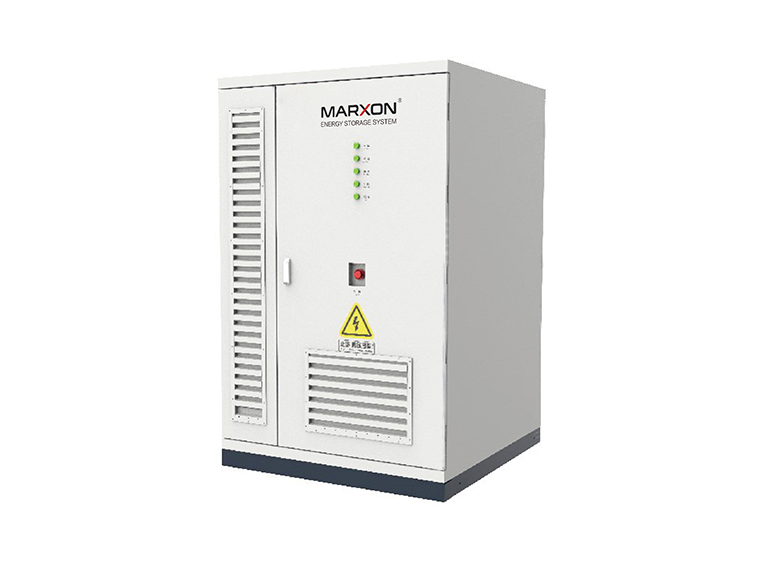

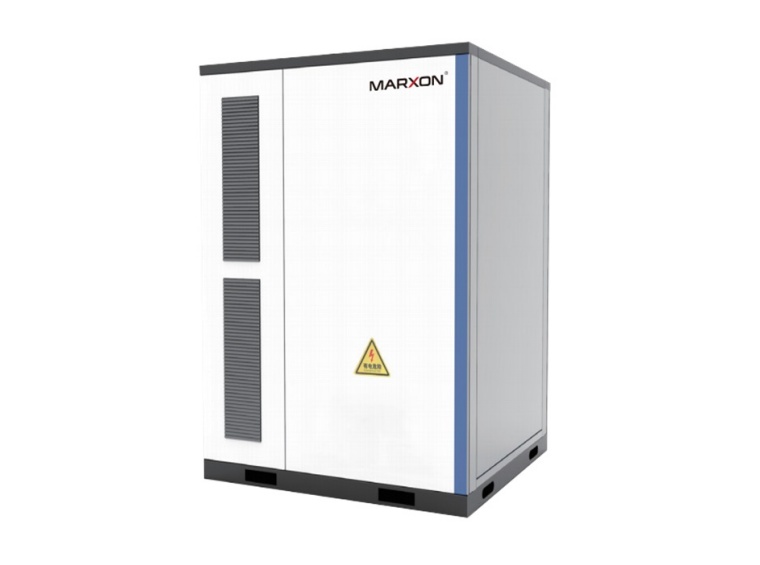

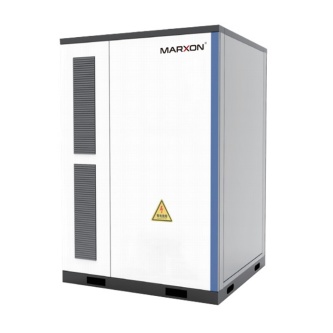

Outdoor Liquid Cooling Battery System
Product features
Features

All-in-one Design, high energy density.


Precise liquid cooling temperature control, temperature ≤ 3 ℃.


Local and cloud linkage, automatic inspection, fast diagnosis.


Peak-load shifting, virtual power plant, intelligent switching of multi-mode energy control strategy.


Product features
Features


All-in-one Design, high energy density.


Precise liquid cooling temperature control, temperature ≤ 3 ℃.


Local and cloud linkage, automatic inspection, fast diagnosis.


Peak-load shifting, virtual power plant, intelligent switching of multi-mode energy control strategy.


Product parameters
Parameters
System modelEpoch-S100/215-LEpoch-S100/232-L
DC side parameters
Cell typeLFP280LFP280
Configuration1P48S 1P52S
Cluster configuration1P240S/5 modules1P260S/5 modules
System Configuration1*1P240S1*1P260S
Nominal capacity215.04kWh232.96kWh
Battery voltage range672~864Vdc728~936Vdc
Charge and discharge rate0.5C0.5C
AC side parameters
Rated power100kVA100kVA
AC voltage400Vac/360~440Vac400Vac/360~440Vac
Grid frequency50/60Hz±2Hz50/60Hz±2Hz
AC method3P4W+PE3P4W+PE
Power factor-1~1-1~1
Maximum THD<3%(@rated power)<3%(@rated power)
System parameters
Dimension(W*D*H)1400*1400*2350mm1400*1400*2350mm
Weight2.2t2.4t
IP levelIP54IP54
AltitudeNo derating below 2000mNo derating below 2000m
Operating temperature-20℃~55℃-20℃~55℃
Operating noise≤75dB(A)≤75dB(A)
Cooling modeAir+Liquid Air+Liquid
Fire Fighting SystemGas Fire+Water FireGas Fire+Water Fire
ProtocolModbus TCP/RTUModbus TCP/RTU
StandardsGB/T36276、GB/T34131、IEC62619
