Home > Products > > 0.5MW/1.5MWh&1MW/2.15MWh&1.5MW/3.297MWh Containerized Air Cooling AC & DC Integrated Battery System

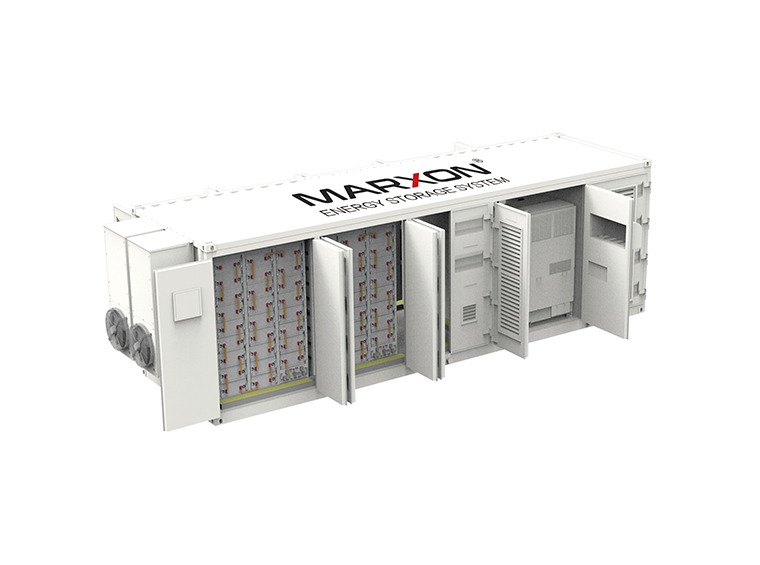

0.5MW/1.5MWh&1MW/2.15MWh&1.5MW/3.297MWh
Containerized Air Cooling AC & DC Integrated Battery System
Product features
Features

Safe and Reliable

• Advanced wind guide design of the battery module, the temperature difference between the battery cell in the cabin ≤5 ℃,Three -level fire protection system, classification prevention and control.


Operational Assurance

• BMS, PCS, EMS, 3S linkage monitoring, real -time data collection analysis, digital intelligent operation control and control.


Easy Operation and Maintenance

• Integrated design of AC and DC, layout of AC and DC compartments, easily installation, and convenient maintenance.


Strong Applicability

• High compatibility design, supporting on-demand expansion, meeting application scenarios such as industrial and commercial energy storage, substation energy storage, and microgrid.


Product features
Features

Safe and Reliable

• Advanced wind guide design of the battery module, the temperature difference between the battery cell in the cabin ≤5 ℃,Three -level fire protection system, classification prevention and control.


Operational Assurance

• BMS, PCS, EMS, 3S linkage monitoring, real -time data collection analysis, digital intelligent operation control and control.


Easy Operation and Maintenance

• Integrated design of AC and DC, layout of AC and DC compartments, easily installation, and convenient maintenance.


Strong Applicability

• High compatibility design, supporting on-demand expansion, meeting application scenarios such as industrial and commercial energy storage, substation energy storage, and microgrid.



Product parameters
Parameters
System modelEpoch-S500/1500-20WEpoch-S1000/2150-WEpoch-S1500/3297-W
DC side parameters
Cell typeLFP280LFP280LFP280
Configuration1P16S 1P16S 1P16S
Cluster configuration1P240S/15Modules1P240S/15Modules1P368S/23Modules
System Configuration7*1P240S10*1P240S10*1P368S
Nominal capacity1505kWh2150kWh3297kWh
Battery voltage range672~864Vdc672~864Vdc1030.4~1324.8Vdc
Charge and discharge rate0.5C0.5C0.5C
AC side parameters
Rated power500kVA1000kVA1500kVA
AC voltage400Vac/360~440Vac400Vac/360~440Vac690Vac/586~759Vac
Grid frequency50/60Hz±3Hz50/60Hz±3Hz50/60Hz±5Hz
AC method3P4W+PE3P4W+PE3P3W
Power factor-1~1-1~1-0.99~0.99
Maximum THD＜3%(@rated power)＜3%(@rated power)＜3%(@rated power)
System parameters
Dimension(W*D*H)6058*2438*28969144*2438*289612192*2438*2896
Weight26t33t45t
IP levelIP54IP54IP54
Anticorrosive levelNo derating below 2000m
Altitude-20℃~55℃-20℃~55℃-20℃~55℃
Operating temperature≤75dB(A)≤75dB(A)≤75dB(A)
Operating noiseAir coolingAir coolingAir cooling
Cooling modeAerosols+Perfluorohexanone+Water fire
ProtocolModbus/IEC61850/IEC104
StandardsGB/T36276、GB/T34131
