Home > Products > > 3.354MWh&5.017MWh Containerized Air Cooling Battery System

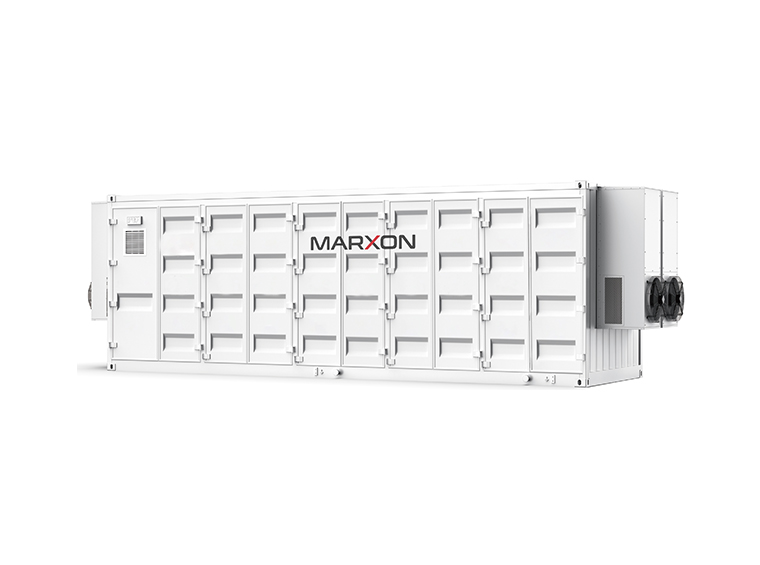

3.354MWh&5.017MWh
Containerized Air Cooling Battery System
Product features
Features

Safe and Reliable

• Advanced wind guide design for battery module, temperature ≤ 5 ℃

• Three level fire protection system, graded prevention and control.


Operational Assurance

• BMS, PCS, EMS, 3S linkage monitoring, real -time data collection analysis, digital intelligent operation control and control.


Easy Operation and Maintenance

• Module design, cluster -level control, plug-in, high and low voltage separation and power distribution, open door design, simple and convenient and safe maintenance.


Strong Applicability

• IP54 protection, C3 anticorrosive grade, various cabinet design to meet various complex application scenarios.


Product features
Features

Safe and Reliable

• Advanced wind guide design for battery module, temperature ≤ 5 ℃

• Three level fire protection system, graded prevention and control.


Operational Assurance

• BMS, PCS, EMS, 3S linkage monitoring, real -time data collection analysis, digital intelligent operation control and control.


Easy Operation and Maintenance

• Module design, cluster -level control, plug-in, high and low voltage separation and power distribution, open door design, simple and convenient and safe maintenance.


Strong Applicability

• IP54 protection, C3 anticorrosive grade, various cabinet design to meet various complex application scenarios.



Product parameters
Parameters
System modelEpoch-B3354-30WEpoch-B5017-45W
DC side parameters
Cell typeLFP280LFP280
Configuration1P16S 1P16S
Cluster configuration1P416S/26Modules1P400S/14Modules
System Configuration9*1P416S14*1P400S
Nominal capacity3354kWh5017kWh
Battery voltage range1164.8~1497.6Vdc1120~1440Vdc
Charge and discharge rate0.5C0.5C
DOD90%90%
System parameters
Dimension(W*D*H)9144*2438*2896mm13716*24380*2896mm
Weight35t45t
IP levelIP54IP54
Anticorrosive levelC3C3
AltitudeNo derating below 2000mNo derating below 2000m
Operating temperature-20℃~55℃-20℃~55℃
Operating noise≤75dB(A)≤75dB(A)
Cooling modeAir coolingAir cooling
Fire Fighting Systemaerosols+Perfluorohexanone+Water fireaerosols+Perfluorohexanone+Water fire
ProtocolIEC61850/Modbus/IEC104IEC61850/Modbus/IEC104
StandardsGB/T36276、GB/T34131
