Home > Products > > 3.354MWh&5.218MWh&6.708MWh Containerized Liquid Cooling Battery System

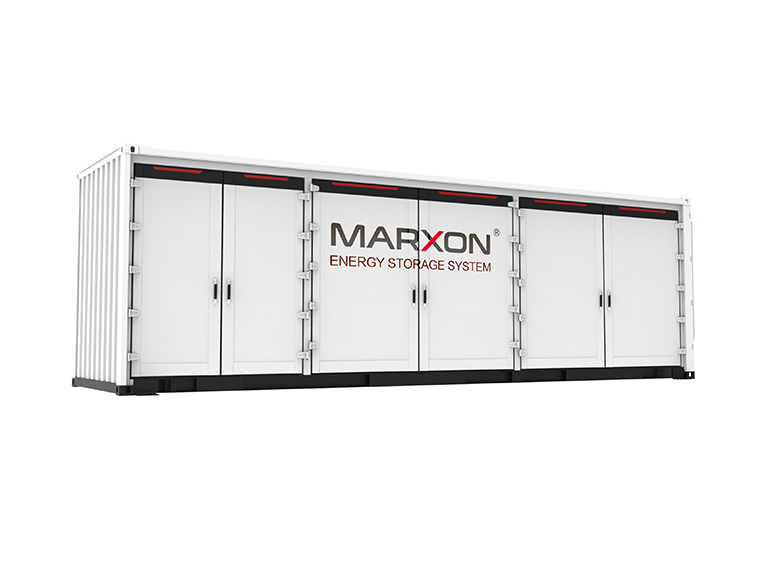

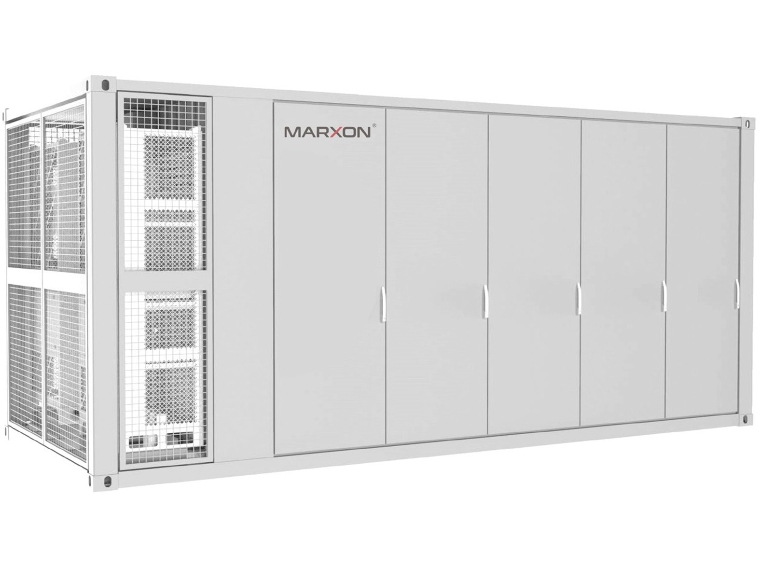

3.354MWh&5.218MWh&6.708MWh
Containerized Liquid Cooling Battery System
Product features
Features

Safe and Reliable

• Advanced wind guide design for battery module, temperature ≤ 5 ℃

• Three level fire protection system, graded prevention and control.


Operational Assurance

• BMS, PCS, EMS, 3S linkage monitoring, real -time data collection analysis, digital intelligent operation control and control.


Easy Operation and Maintenance

• Module design, cluster -level control, plug-in, high and low voltage separation and power distribution, open door design, simple and convenient and safe maintenance.


Strong Applicability

• IP54 protection, C3 anticorrosive grade, various cabinet design to meet various complex application scenarios.




Product features
Features


Safe and Reliable

• Advanced wind guide design for battery module, temperature ≤ 5 ℃

• Three level fire protection system, graded prevention and control.


Operational Assurance

• BMS, PCS, EMS, 3S linkage monitoring, real -time data collection analysis, digital intelligent operation control and control.


Easy Operation and Maintenance

• Module design, cluster -level control, plug-in, high and low voltage separation and power distribution, open door design, simple and convenient and safe maintenance.


Strong Applicability

• IP54 protection, C3 anticorrosive grade, various cabinet design to meet various complex application scenarios.


Product parameters
Parameters
System modelEpoch-B3354-20LEpoch-B5218-30LEpoch-B6708-40L
DC side parameters
Cell typeLFP280LFP280LFP280
Configuration1P52S 1P52S 1P52S
Cluster configuration1P416S/8Modules1P416S/8Modules1P416S/8Modules
System configuration9*1P416S14*1P416S18*1P400S
Nominal capacity3354kWh5218kWh6708kWh
Battery voltage range1164.8~1497.6Vdc1164.8~1497.6Vdc1164.8~1497.6Vdc
Charge and discharge rate0.5C0.5C0.5C
DOD90%90%90%
System parameters
Dimension(W*D*H)6058*2438*2896mm9144*2438*2896mm12192*2438*2896mm
Weight35t56t70t
IP levelIP54IP54IP54
Anticorrosive levelC3C3C3
AltitudeNo derating below 2000mNo derating below 2000mNo derating below 2000m
Operating temperature-20℃~55℃-20℃~55℃-20℃~55℃
Operating noise≤75dB(A)≤75dB(A)≤75dB(A)
Cooling modeLiquid coolingLiquid coolingLiquid cooling
Fire Fighting System gas fire+water fire gas fire+water fire gas fire+water fire
ProtocolIEC61850/Modbus/IEC104IEC61850/Modbus/IEC104IEC61850/Modbus/IEC104
StandardsGB/T36276、GB/T34131
