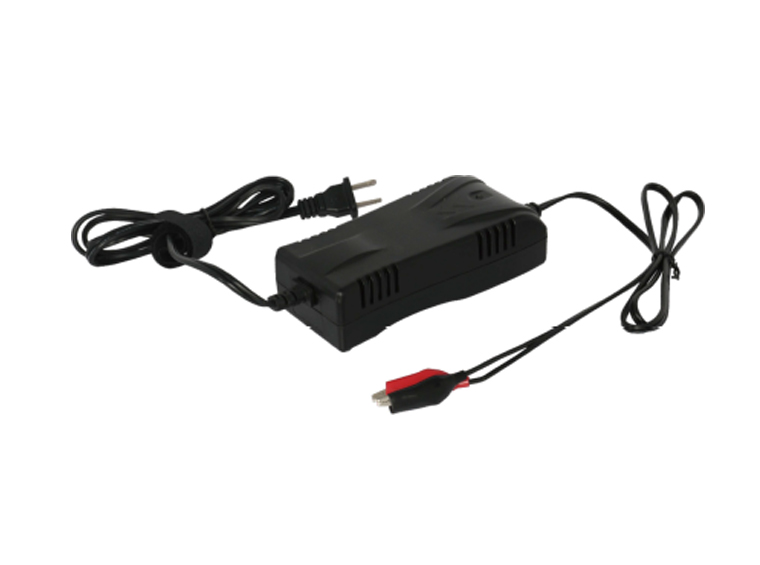

LC-2279
Desktop Charger Series

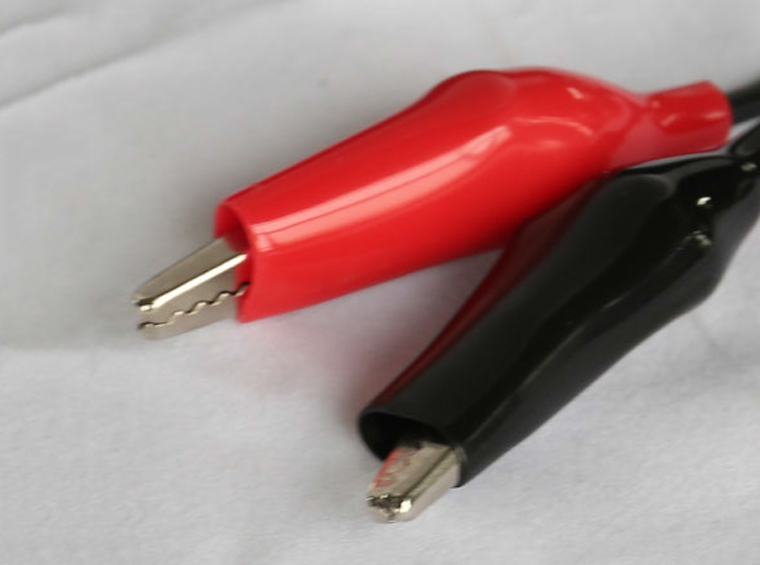

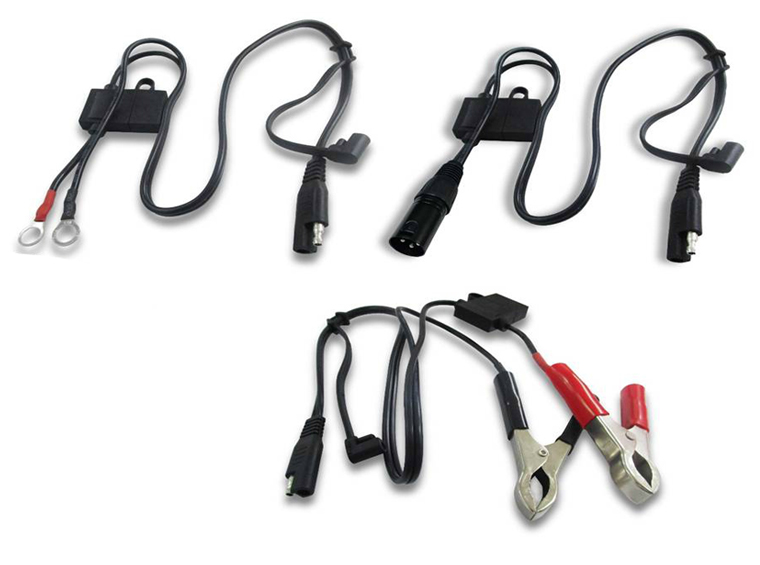

The charger can be equipped with various similar connectors.
Product parameters
Parameters
| Specifications | LC-2279 | LC-2280 | LC-2281 | LC-2282 | LC-2283 | LC-2284 |
| Input voltage | 100-240VAC | 100-240VAC | 100-240VAC | 100-240VAC | 100-240VAC | 100-240VAC |
| Input frequency | 50~60HZ | 50~60HZ | 50~60HZ | 50~60HZ | 50~60HZ | 50~60HZ |
| Output voltage | 24V | 24V | 12V | 12V | 12V | 12V |
| Output current | 1A | 2A | 1A | 2A | 3A | 4A |
| Battery type (Ah) | 3.4-10 | 6.7-20 | 3.3-10 | 6.7-20 | 10-30 | 13-40 |
| Light switching current | 200mA | 400mA | 200mA | 400mA | 600mA | 800mA |
| Overload protection | Yes | Yes | Yes | Yes | Yes | Yes |
| Short circuit protection | Yes | Yes | Yes | Yes | Yes | Yes |
| Reverse polarity protection | Yes | Yes | Yes | Yes | Yes | Yes |
| Charging status display | LED | LED | LED | LED | LED | LED |
| Dimension(mm) | 155*71*47 | 155*71*47 | 155*71*47 | 155*71*47 | 155*71*47 | 155*71*47 |
| Certification | CE/ETL | CE/ETL | CE/ETL | CE/ETL | CE/ETL | CE/ETL |
| QTY (pcs) | 50 | 50 | 50 | 50 | 50 | 50 |
| Carton measurement(mm) | 630*450*380 | 630*450*380 | 630*450*380 | 630*450*380 | 630*450*380 | 630*450*380 |
| Container 20gp (pcs) | 5600 | 5600 | 5600 | 5600 | 5600 | 5600 |
| Container 40gp (pcs) | 11200 | 11200 | 11200 | 11200 | 11200 | 11200 |
