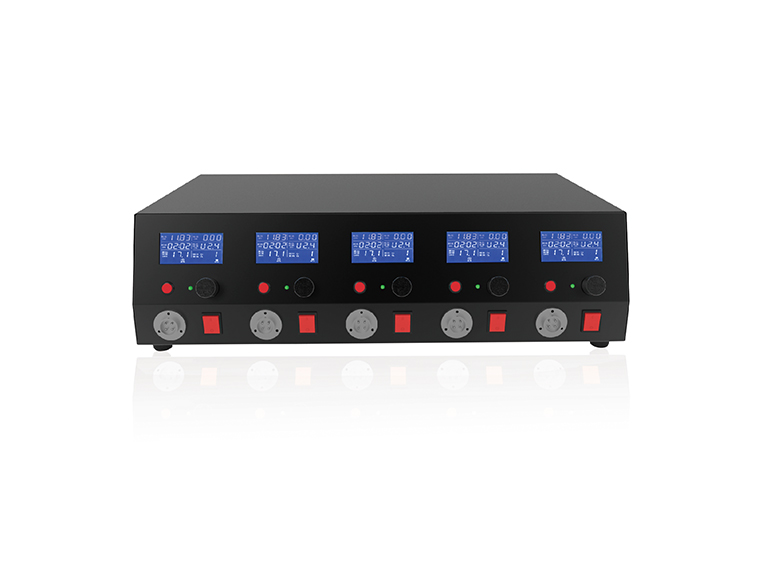

LC-2810 is a new generation of super charging and discharging integrated machine, which integrates high-precision capacity discharge test, ordinary three-stage charging, and water maintenance charging. The charging current reaches 20A, and the discharging current reaches 20A.
Two operation modes: simple mode and expert mode to meet different needs of users. Enhanced the optional cycle mode, the number of cycles is up to 50 times! 6 working modes are optional: discharge Mode, charge mode, and cycle mode; among them, the cycle mode has 4 options: start with discharge and end with discharge, start with charge and end with discharge, start with discharge and end with charge, and start with charge and end with charge.

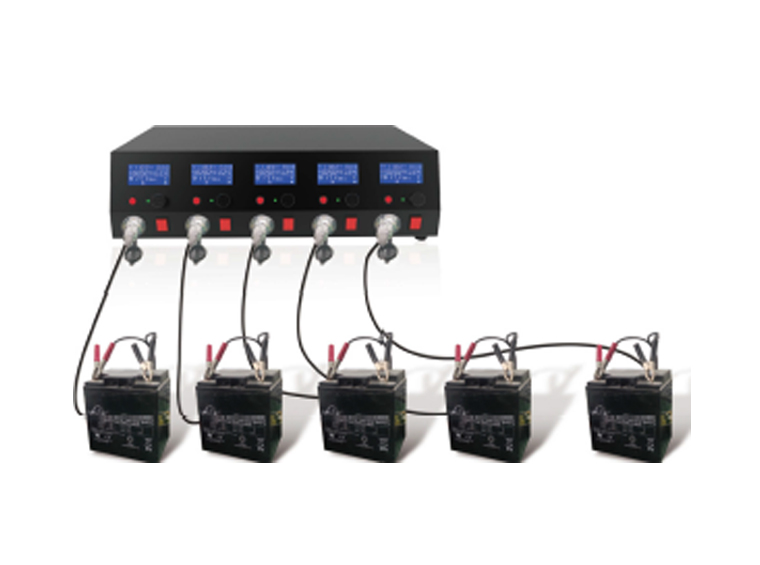

LC-2810 is a high-precision special instrument suitable for battery testing by battery manufacturers, after-sales service points and electric vehicle manufacturers and dealers.
Simple to set up and easy to understand.
Rich display content.
Low charging noise and low discharging power consumption.
Removable dust-proof filter net cover.
Quiet operation and long life.
Parameters are automatically saved.
| Specifications | LC-2810 |
| Maximum discharge power from five stations | 2000W |
| Maximum charge power from five stations | 2300W |
| Maximum sigle charge or discharge time | 90 hours |
| Maximum single test capacity | 999Ah |
| Discharge current accuracy | ±5% |
| Discharge voltage accuracy | ±0.1V |
| Discharge test termination voltage | 2V-20V |
| Discharge rated load current | 0.5-20A |
| Charge current accuracy | ±5% |
| Charging voltage accuracy | ±0.1V |
| Minimum charging voltage | 7.0V |
| Maximum charging voltage | 23V |
| Recharging current | 0.5~20A |
| Charge and float charge conversion conditions | Switch into float charge after 3.5 hours at constant voltage charging |
| Discharge current | 0.5A-20A constant current, current can be adjusted at 0.1A |
| Charging current | 0.5A~20A constant current, current can be adjusted at 0.1A |
| Number of cycles | 0~50 times(LC-2183 has this function) |
| Discharge termination voltage | Can be adjusted at 2V~20V, 0.1V can be adjusted at each level |
| Charging constant voltage | 7.0V-23V,can be adjusted at 0.1V at each level |
