The product is mainly used for supporting power supply of electronic devices such as wireless routers, set-top boxes, electronic scales, LCD displays, etc.

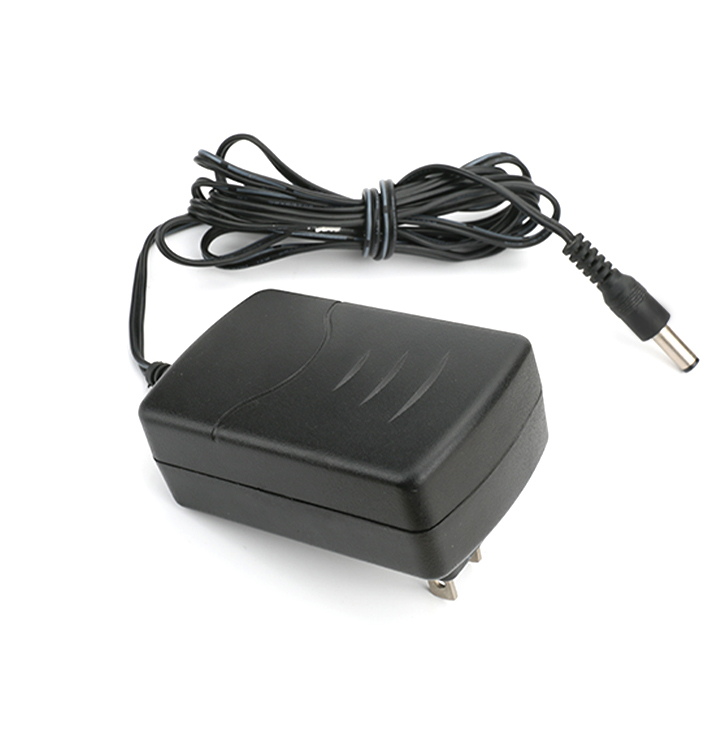

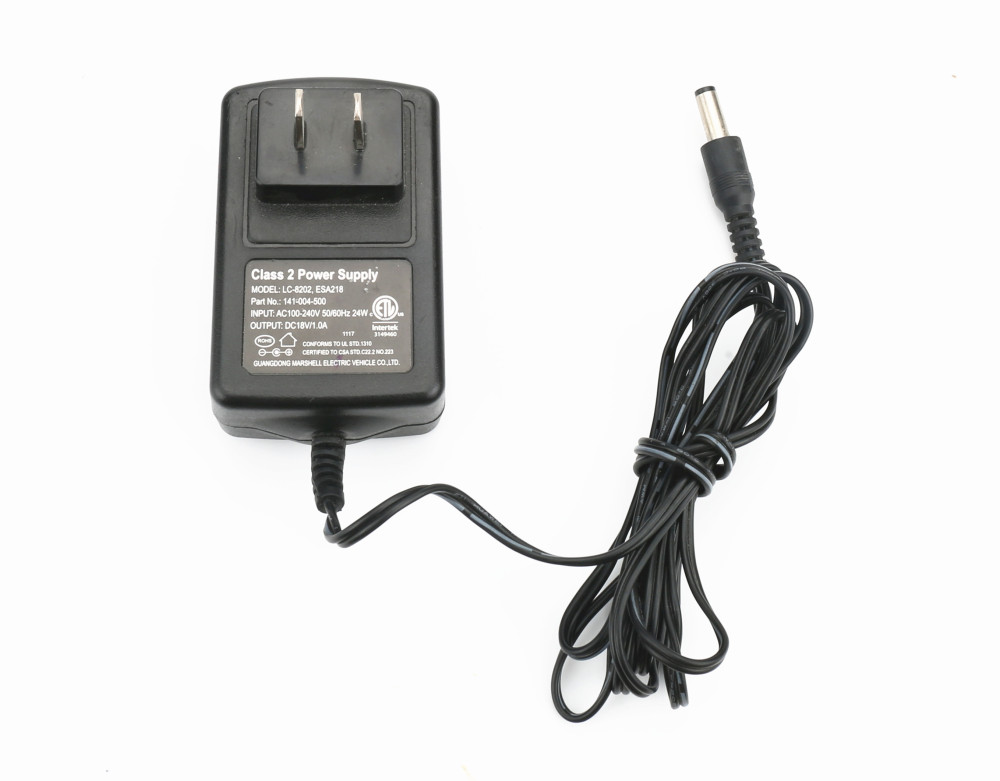

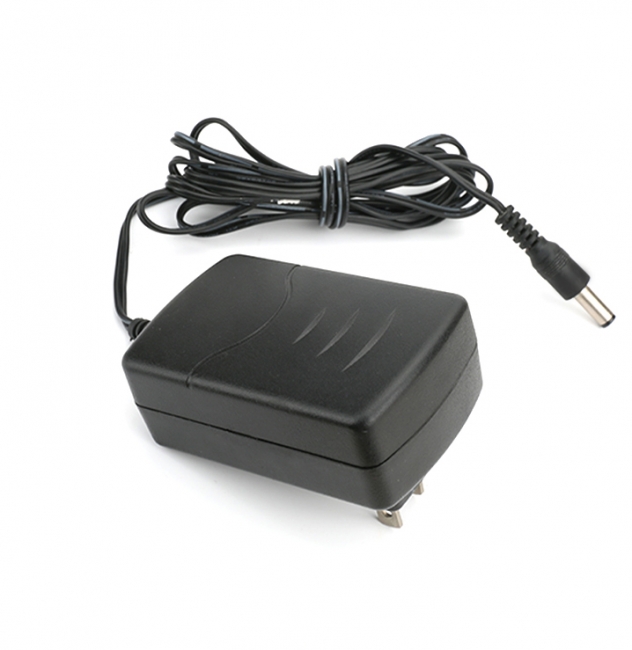

This series of products includes models: LC-8201/8202/8203 The model specifications are 15V1A, 18V1A, and 19V0.6V. The product adopts a strong plug-in shell design, and the appearance is light and easy to carry. The power shell is available in American, European, British, and Australian regulations.
Adopting a strong plug-in shell design, it is lightweight and convenient to carry. The power supply casing has American, European, British, and Australian standards to choose from.

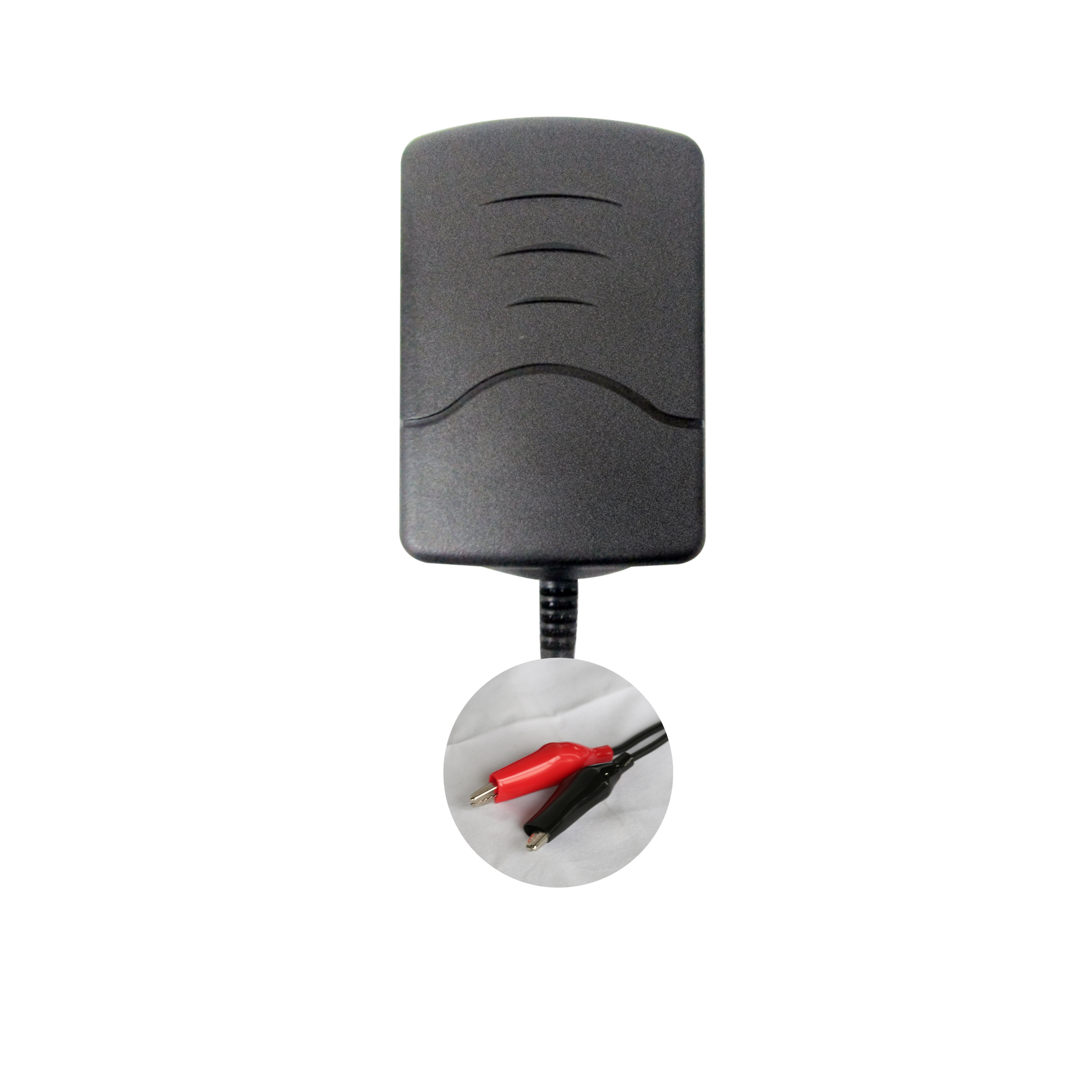

12V 6V battery charger; Charging status indicator light: Red indicates charging, while green is fully charged.
After the battery is fully charged, it automatically switches to float/hold voltage mode.
The product has short-circuit protection and overload protection. At the same time, it has passed ETL certification and FCC certification in terms of product safety.
| Specifications | LC-8201 | LC-8202 | LC-8203 |
| AC input voltage | 100Vac~240Vac | 100Vac~240Vac | 100Vac~240Vac |
| AC output voltage | 47Hz~63Hz | 47Hz~63Hz | 47Hz~63Hz |
| Output power | 20W | 25W | 16W |
| Output voltage | 15V | 18V | 19V |
| Output current | 1A | 1A | 0.6A |
| Average efficiency | ≥85% | ≥85% | 285% |
| Over current protection | Yes | Yes | Yes |
| Short circuit protection | Yes | Yes | Yes |
| Operation temperature | 0℃~40℃ | 0℃~40℃ | 0℃~40℃ |
| Certification | ETL, FCC | ETL, FCC | ETL, FCC |
| Dimension(mm) | 81.5*49.5*33mm | 81.5*49.5*33mm | 81.5*49.5*33mm |
