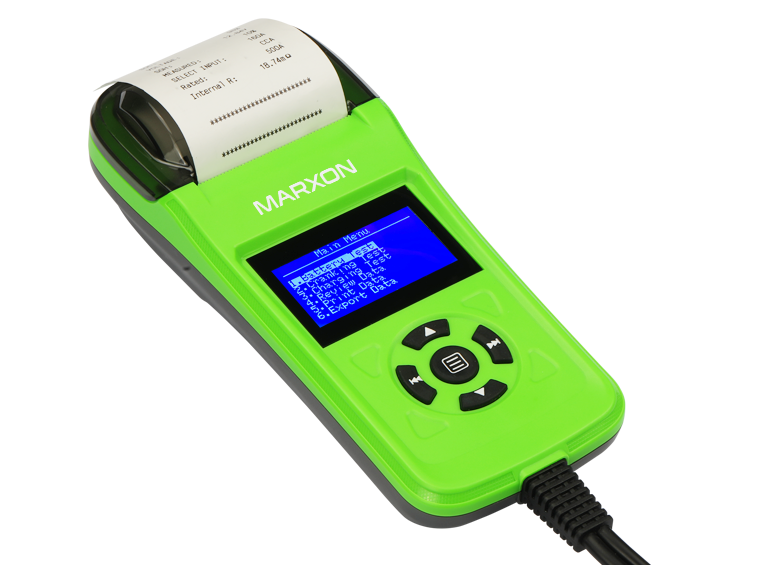

LC-8139
Battery Tester
Product features
Features
Designed for 12V lead-acid batteries to test battery voltage, CCA, internal resistance, rest battery capacity and battery lift, providing accurate battery status.

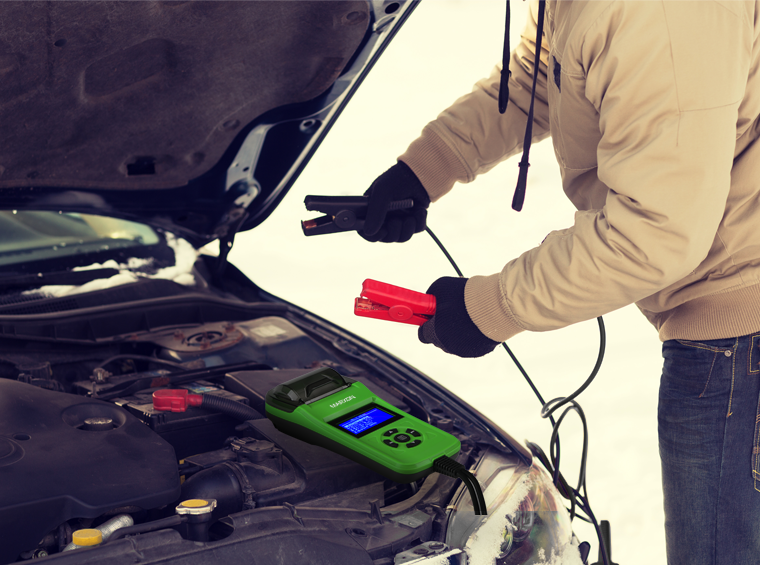

Suitable for testing starting system to check if the battery is good at starting and whether the battery is needed maintain. Suitable for car charging system to check if the charging system after starting and whether it will require maintain.
57mm thermal printer allows you to print the test result immediately and save the battery status
Languages can be in English and Chinese on the display.
Support different standards including CCA, DIN, JIS, EN, IEC, GB, SAE, CA.
Product parameters
Parameters
| Specifications | LC-8139 | ||
| Input voltage | DC8~15V | ||
| Battery type | 12V lead-acid battery | ||
| Voltage accuracy | ±0.1V | ||
| Battery internal resistance accuracy | ±10% | ||
| Standard | CCA | 100-2000 | ±10% |
| DIN | 100-1400 | ±10% | |
| JIS | 26A17-58815 | ±10% | |
| EN | 100-2000 | ±10% | |
| IEC | 100-1400 | ±10% | |
| GB | 30-220AH | ±10% | |
| SAE | 100-2000 | ±10% | |
| CA | 100-2000 | ±10% | |
| CA | @0℃ | ||
| CCA | @-18℃ | ||
| Test method | Conductivity test method | ||
| Test item | Internal resistance, CCA, life time, starting system and charging system | ||
| Operation temperature | -20℃-50℃ | ||
| Operation humidity | 20%-80% | ||
| Language | Chinese, English, Japanese and Korean | ||
| Dimension | 185*91*26mm | ||
| Weight | 0.5kg | ||
