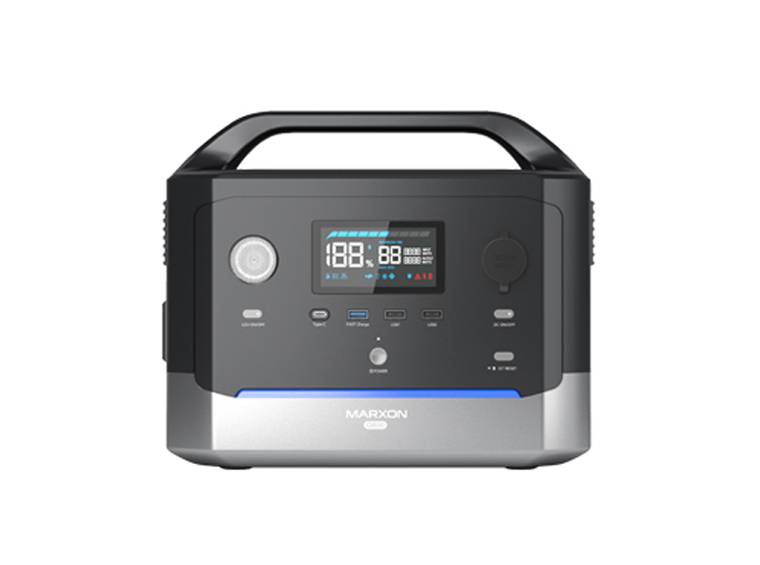

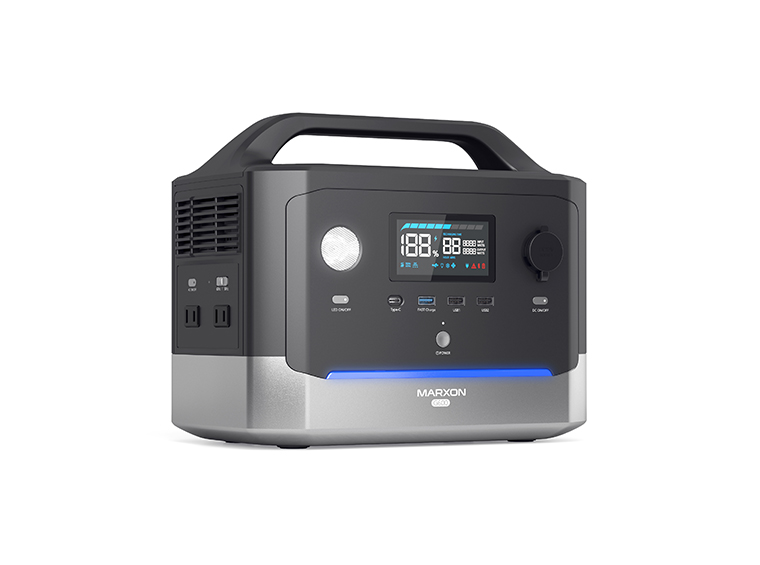

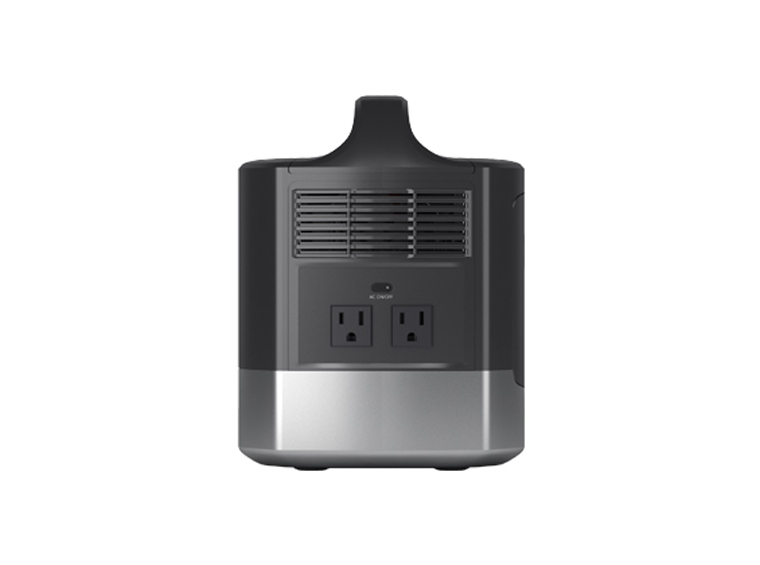

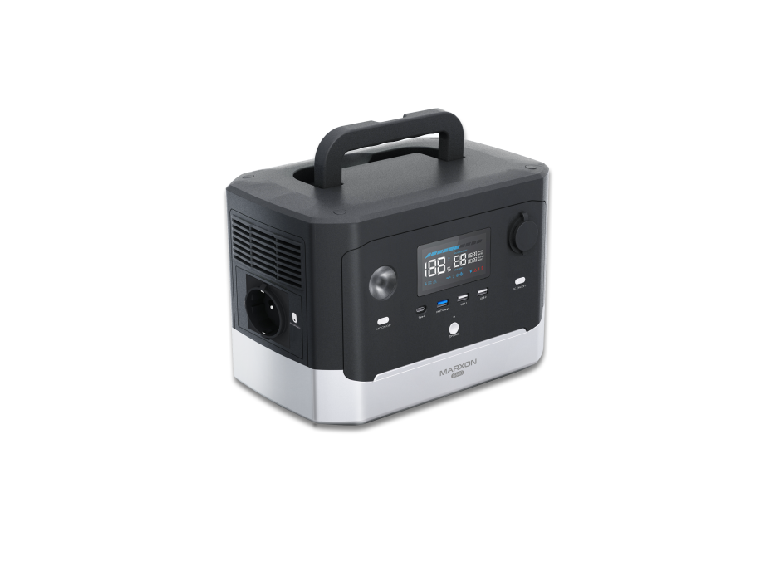

G600
Power Station

This product is an energy storage power product with built-in 25.2V24AH ternary lithium battery, integrated inverter power supply, multiple USB interfaces, and DC12V power output functions. The AC output is 110V/60Hz, and the total output power is 600W.


Supports solar charging, car charging, and built-in AC charger. Equipped with a multifunctional LCD display screen, it can display various working states of the product, making it an ideal energy storage power supply product.

Product parameters
Parameters
General Information
Cell ChemistryLithium-ion Cell
Cycle Life800 Cycles to 80%+ Capacity
Capacity25.2V 24AH (604.8Wh)
Dimensions300*194*247mm
Net WeightApproximately 17.5lbs (7.95Kg)
CertificationFCC
ProtectionOver Voltage Protection, Overload Protection,
Over Temperature Protection, Short Circuit Protection,
Low Temperature Protection, Low Voltage Protection,
Overcurrent Protection, Overcharge Protection,
Over Discharge Protection


Output Ports
AC (x2)Pure Sine Wave, 600W total (surge 1200W), 120V~, 60Hz
USB-A (x2)5V 2.4A, 12W, per port
USB-A Fast Charge (x1)20V 3A, 60W
USB-C (x1)20V 5A, 100W
DC Output12V 10A, 120W


Input Ports
AC Charge300W max, 60Hz, 108-132V~
Solar/Car Input200W max, 11-25V DC 8.5A max
Solar Drive ModeMPPT
Solar/Car Input Port TypeAnderson


Environmental Operating Temperature
Optimal Operation Temperature68℉-86℉
Storage Temperature-4℉-113℉
Charging Temperature32℉-113℉
Discharging Temperature-4℉-113℉
