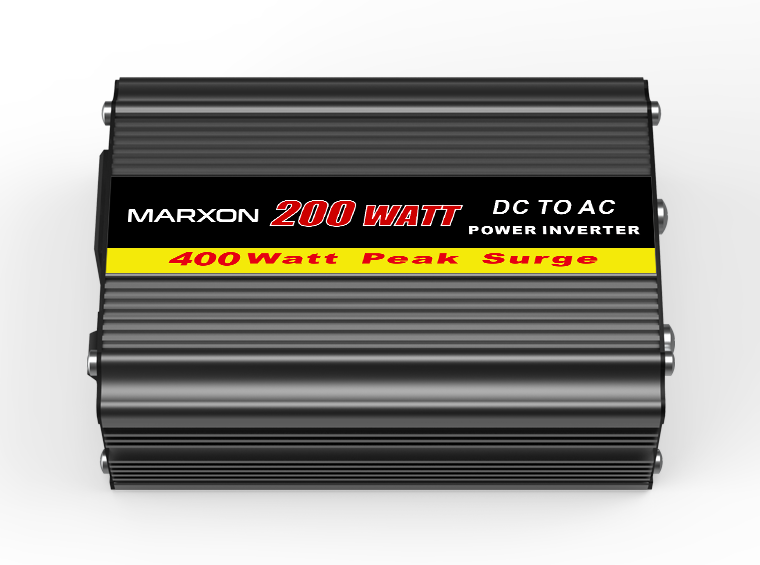

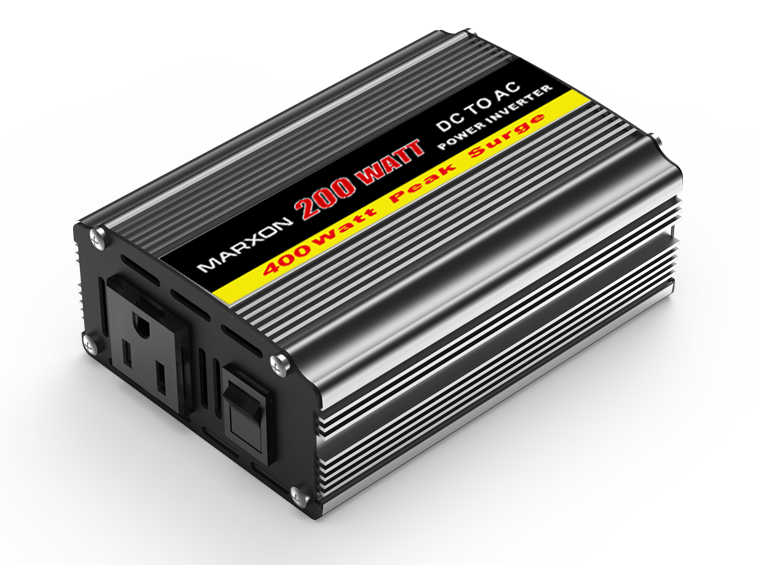

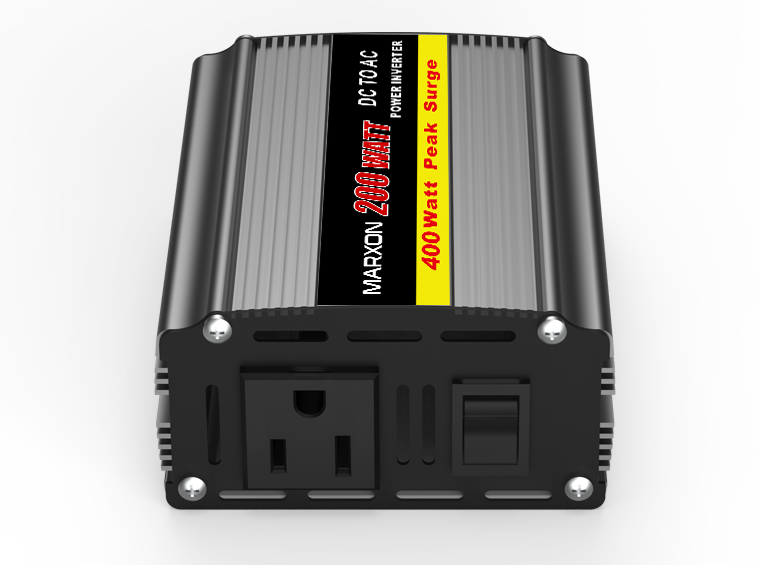

MSI-200
Modified Sine Wave Inverter

Power electrical appliances and electronics in power outage and outdoor activities!

Product features
Features

Input Voltage 12V /24V/48V DC optional.


Output Voltage 115V /230V AC optional.


Portable power for AC products, AC outlets for connecting multiple loads.


High surge capacity for products that require more power to start.


High efficiency converts virtually all of the battery's power to AC.


Mounting brackets for convenient installation.


Heavy duty stud-connection mounting.




Product parameters
Parameters
SpecificationsMSI-100MSI-150MSI-200MSI-300
Continuous output power   (Watt)100150200300
Output peak power (Watt)200300400600
Input voltage (DC)12V(11~15V) /   24V(21~30V)  / 48V(42~60V)
Output voltage (AC)100~120V / 220~240V
Frequency50Hz / 60Hz ±3Hz
Output waveformModified sine wave
Efficiency85~90%
Low battery voltage alarm   (Volt)10.5± 0.5V / 21±1V /   42±2V
Low battery voltage shutdown   (Volt)10± 0.5V / 20±1V /   40±2V
Over temperature shutdown<65℃
Available protectionOverload protection,   input reverse protection, short circuit protection
Cooling modeBy Fan
Replaceable fuse15A20A25A35A
AccessoryCigarette   lighter(included)

Dimension (L*W*H) mm95*70*46105*70*46125*90*46125*90*46
Weight (kg)0.350.360.50.55
QTY (pcs)30302020
Carton measurement (mm)535*250*296322*265*478455*295*405455*295*405
Container 20GP (pcs)15120151201008010080
Container 40GP (pcs)30240302402016020160
