Home > Products > > PSI-1500 Pure sine wave

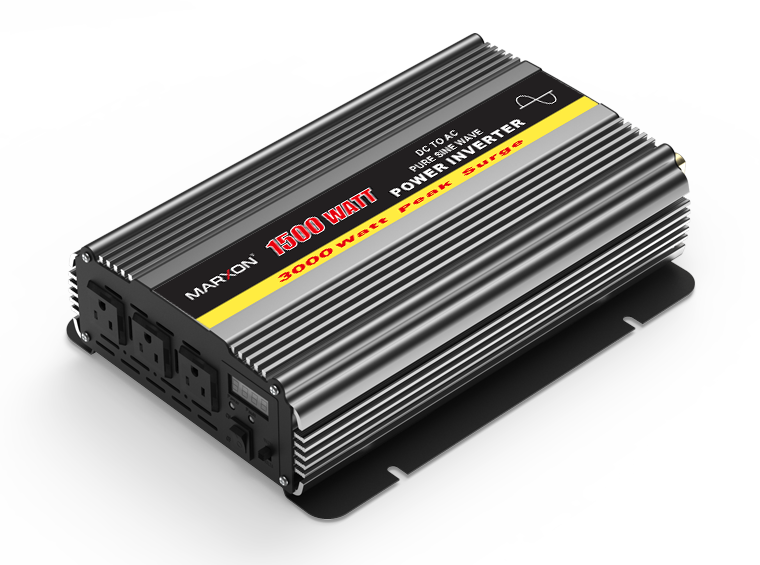

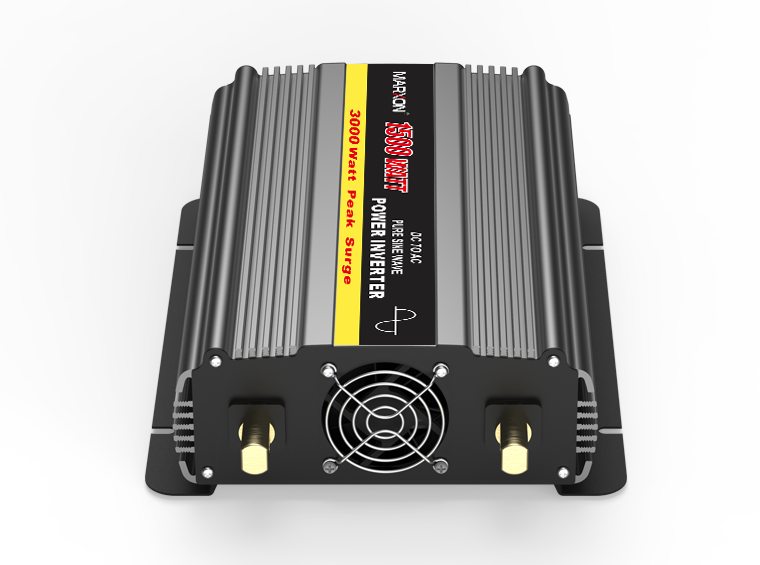

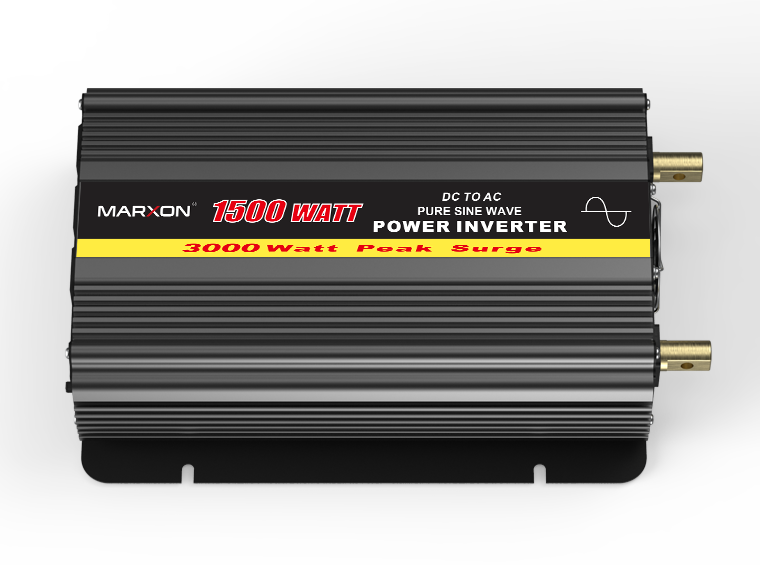

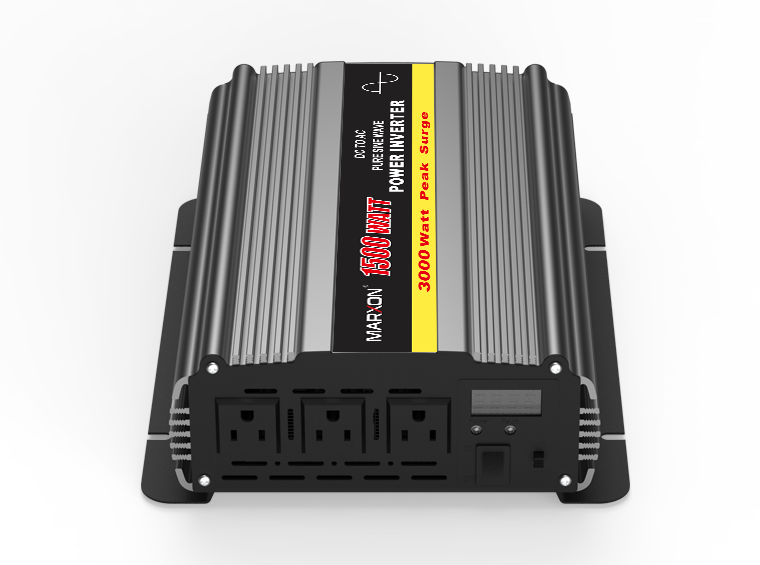

PSI-1500
Pure sine wave

Overload and over temperature shut down Low voltage and over voltage alarm

Low voltage and over voltage cut off Input reverse protection

Short circuit protection


Product features
Features

Input Voltage 12V /24V/48V DC optional


Output Voltage 115V /230V AC optional


Portable power for AC products, AC outlets for connecting multiple loads


High surge capacity for products that require more power to start


High efficiency converts virtually all of the battery's power to AC


Mounting brackets for convenient installation


Heavy duty stud-connection mounting



Product parameters
Parameters
SpecificationsPSI-500PSI-1000PSI-1500PSI-2000PSI-3000
Continuous output power   (Watt)5001000150020003000
Output peak power (Watt)10002000300040006000
Input voltage (DC)12V(11~15V) /   24V(21~30V) / 48V(42~60V)
Output voltage (AC)100~120V / 220~240V
Frequency50Hz / 60Hz ±3Hz
Output waveformPure sine wave
Efficiency85~90%
Low battery voltage alarm   (Volt)10.5± 0.5V / 21±1V /   42±2V
Low battery voltage shutdown   (Volt)10± 0.5V / 20±1V /   40±2V
Over temperature shutdown＜65℃
Available protectionOverload protection,   input reverse protection, short circuit protection
Cooling modeBy Fan
Replaceable fuse30A*230A*430A*625A*1225A*16
AccessoryClamp(optional)
Dimension (L*W*H) mm200*145*76275*220*78370*220*82380*260*92420*260*92
Weight (kg)1.852.53.74.56
QTY (pcs)104444
Carton measurement (mm)355*290*450532*365*275535*440*290635*470*330635*510*350
Container 20GP (pcs)336013441248672560
Container 40GP (pcs)67202688268813441120
