Home > Products > > PIC-3000 Inverter with Built-In Charger

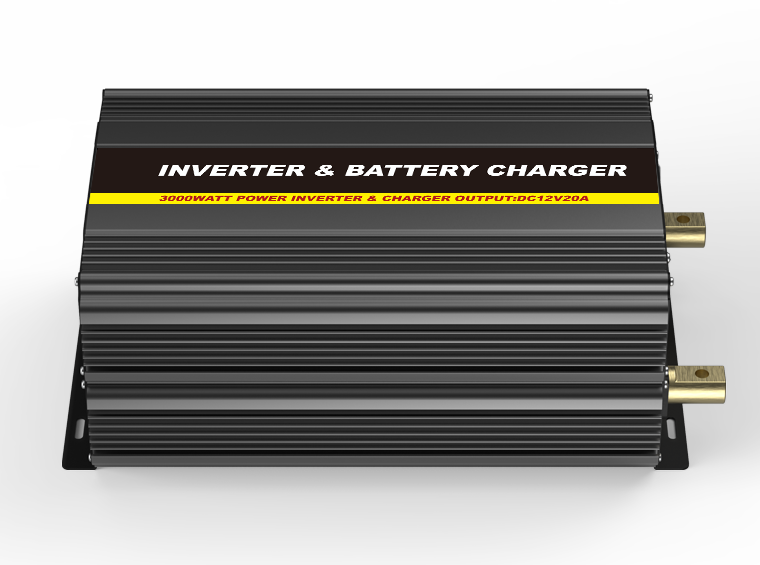

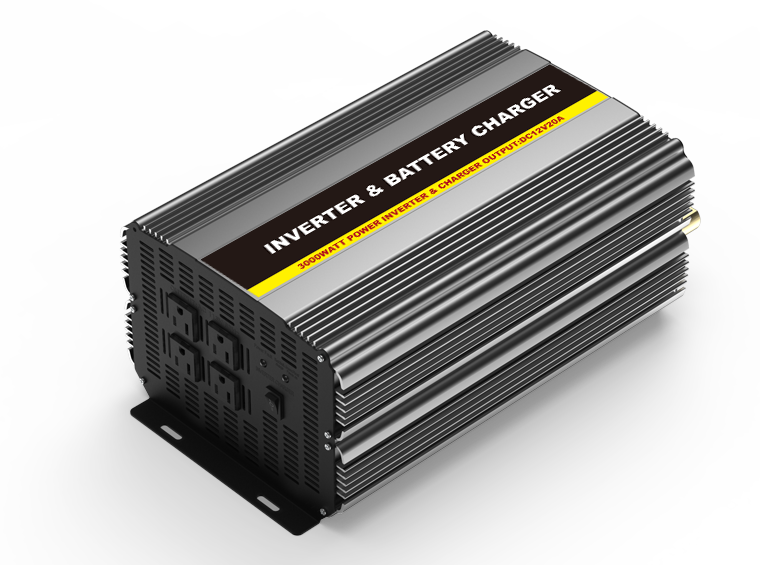

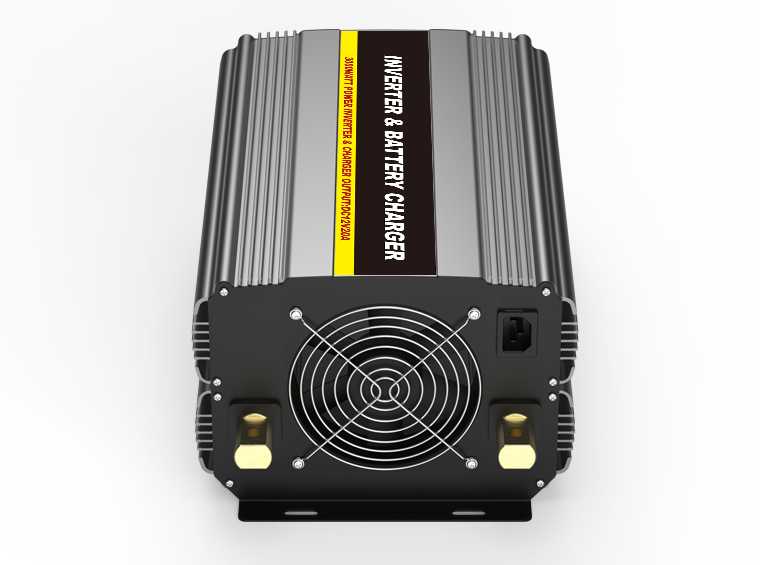

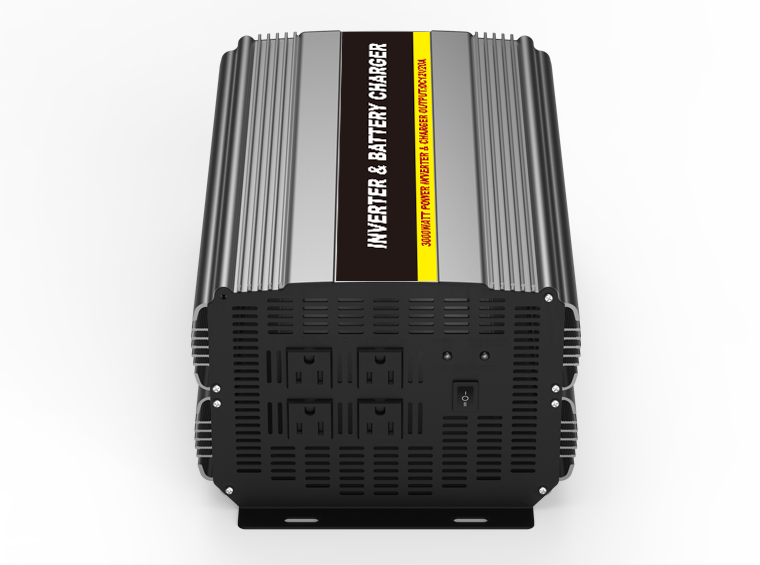

PIC-3000
Inverter with Built-In Charger
Product features
Features
SpecificationsPIC-1500PIC-2000PIC-3000PIC-5000PIC-6000
Invertercontinuous output   power15002000300050006000
Output peak power3000400060001000012000
Input voltage (DC)12V/24V
Output voltage (AC)100~120V/220~240V
Frequency50Hz/60Hz
Output waveformModified sine wave
Efficiency85~90%
Low battery voltage alarm10.5±0.5V/21±1V
Low battery voltage shutdown10±0.5V/20±1V
Overload protectionYesYesYesYesYes
Input reverse protectionYesYesYesYesYes
Short circuit protectionYesYesYesYesYes
Over temperature shutdown<65℃<65℃<65℃<65℃<65℃
Cooling modeBy Fan
AccessoriesClamp(optional)
Replaceable fuse25A*825A*1225A*1825A*3125A*34+30A*2
Chargerinput voltage12V/24V/48V
Input frequency50Hz/60Hz
Output voltage12V/24V/48V
Output current12V/24V/48V Lead-acid battery
Battery type20A/5A20A/10A20A/10A50A/25A50A/25A
Light switching current4A/1A4A/2A4A/2A10A/5A10A/5A
Efficiency≥80%≥80%≥80%≥80%≥80%
Overload protectionYesYesYesYesYes
Short circuit protectionYesYesYesYesYes
Reverse polarity protectionYesYesYesYesYes
Dimension (L*W*H) mm310*225*80390*260*93410*230*160605*230*160605*230*160
Net weight (kg)3.55.57.312.7512.75
QTY (pcs)22111
Carton measurement (mm)510*325*340510*325*340503*316*258715*326*258715*326*258
Container 20GP (pcs)448448420252252
Container 40GP (pcs)896896840504504
