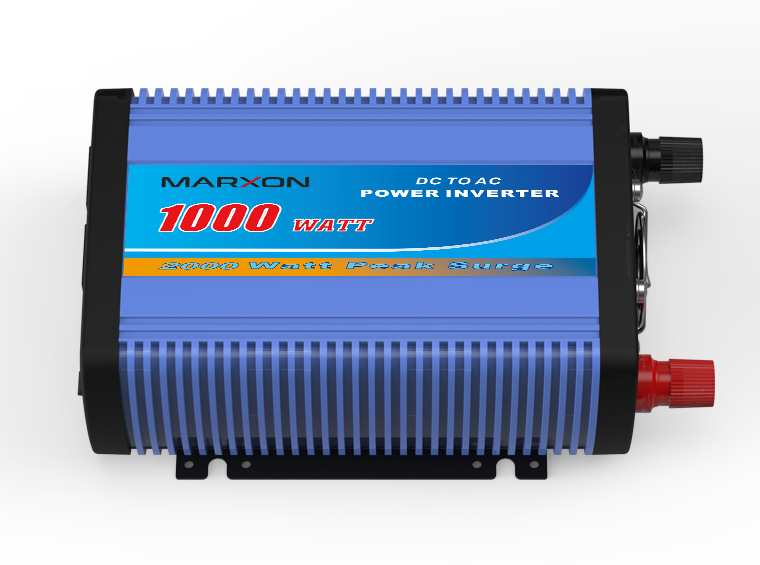

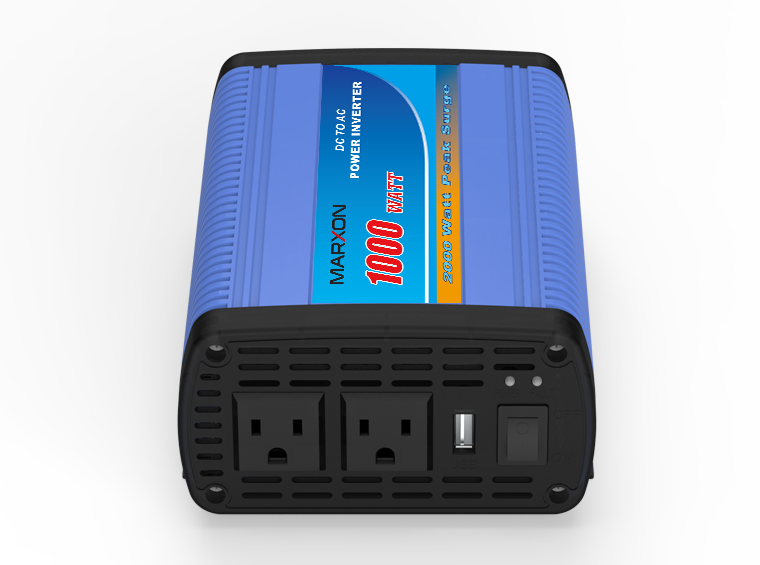

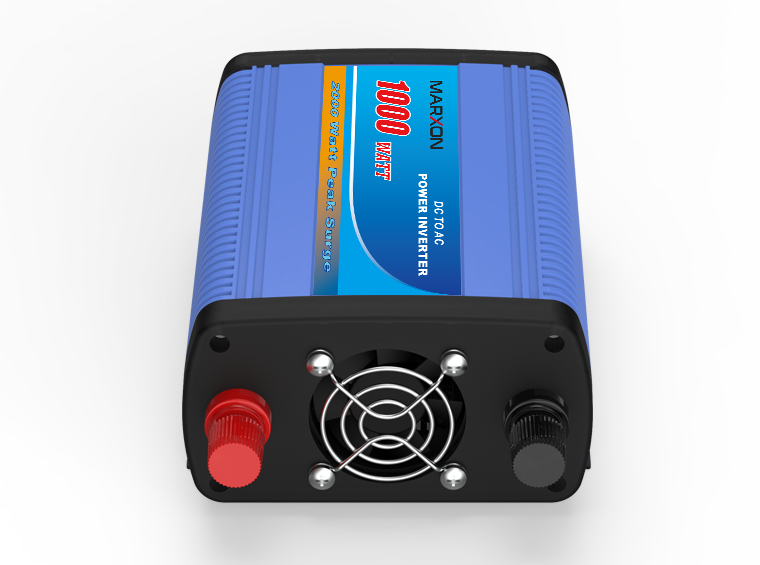

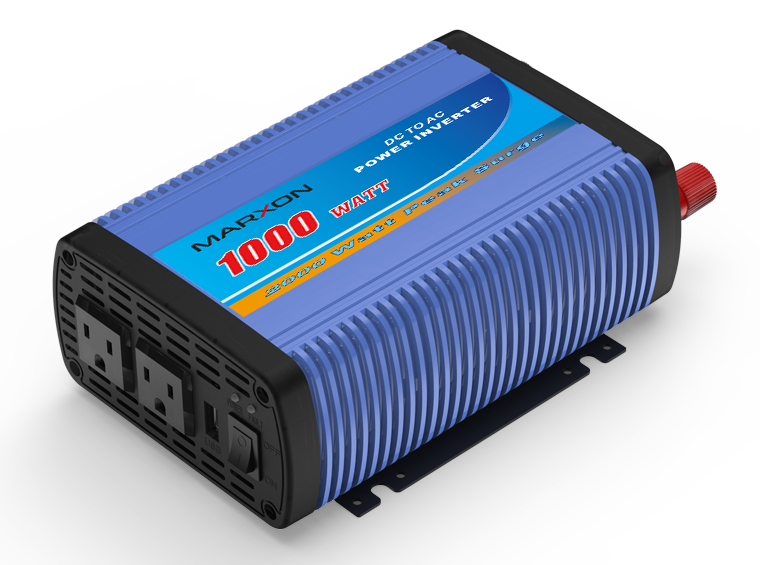

MSI-1000P
Plastic Version
Overload and over temperature shut down Low voltage and over voltage alarm
Low voltage and over voltage cut off Input reverse protection
Short circuit protection
Product features
Features
Input Voltage 12V /24V/48V DC optional
Output Voltage 115V /230V AC optional
Portable power for AC products, AC outlets for connecting multiple loads
High surge capacity for products that require more power to start
High efficiency converts virtually all of the battery's power to AC
Mounting brackets for convenient installation
Heavy duty stud-connection mounting
Product parameters
Parameters
| Specifications | MSI-600P | MSI-800P | MSI-1000P |
| Continuous output power (Watt) | 600 | 800 | 1000 |
| Output peak power (Watt) | 1200 | 1600 | 2000 |
| Input voltage (DC) | 12V(11~15V) / 24V(21~30V) | ||
| Output voltage (AC) | 100~120V / 220~240V | ||
| Frequency | 50Hz / 60Hz ±3Hz | ||
| Output waveform | Modified sine wave | ||
| Efficiency | 85~90% | ||
| Low battery voltage alarm (Volt) | 10.5± 0.5V / 21±1V | ||
| Low battery voltage shutdown (Volt) | 10± 0.5V / 20±1V | ||
| Over temperature shutdown | ＜65℃ | ||
| Available protection | Overload protection, input reverse protection, short circuit protection | ||
| Cooling mode | By Fan | ||
| Replaceable fuse | 32A*3 | 25A*4 | 30A *4 |
| Accessory | Clamp | ||
| Dimension (L*W*H) mm | 215*125*70 | 215*125*70 | 215*125*70 |
| Weight (kg) | 0.85 | 1.2 | 1.5 |
| QTY (pcs) | 10 | 10 | 10 |
| Carton measurement (mm) | 355*275*450 | 355*275*450 | 355*275*450 |
| Container 20GP (pcs) | 5040 | 5040 | 5040 |
| Container 40GP (pcs) | 10080 | 10080 | 10080 |
