Home > Products > > MSI-5000 Modified Sine Wave Inverter

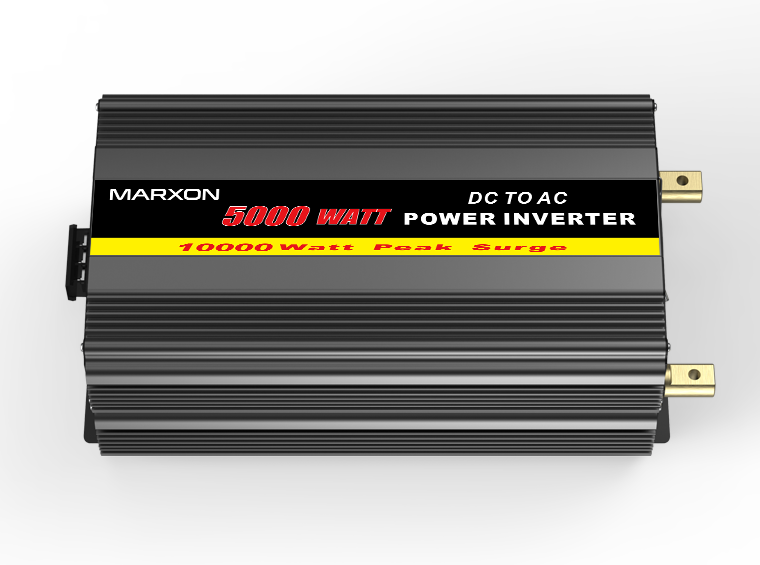

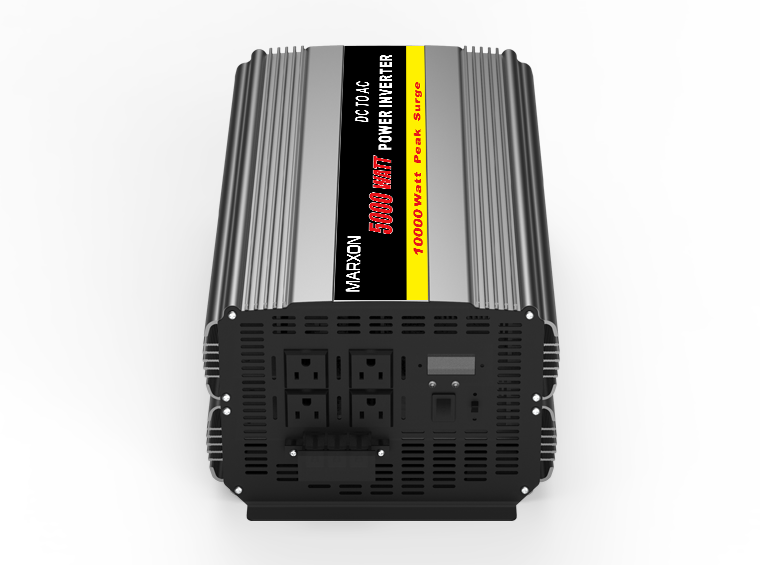

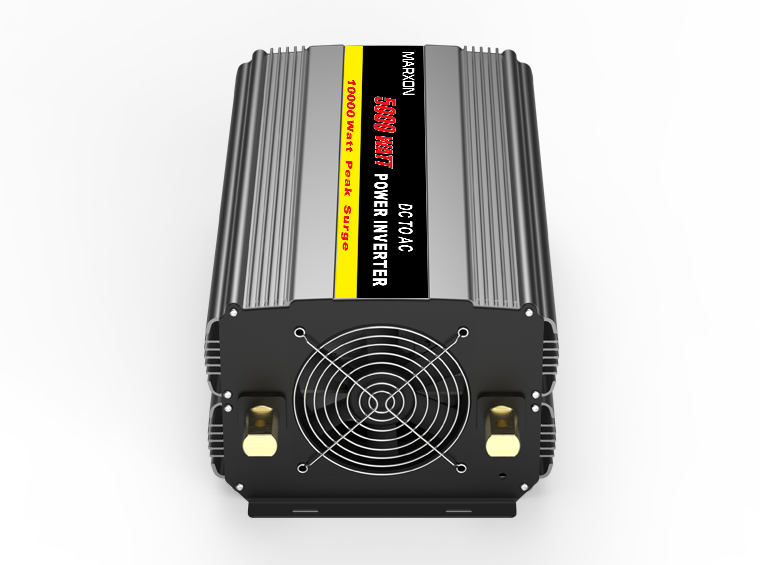

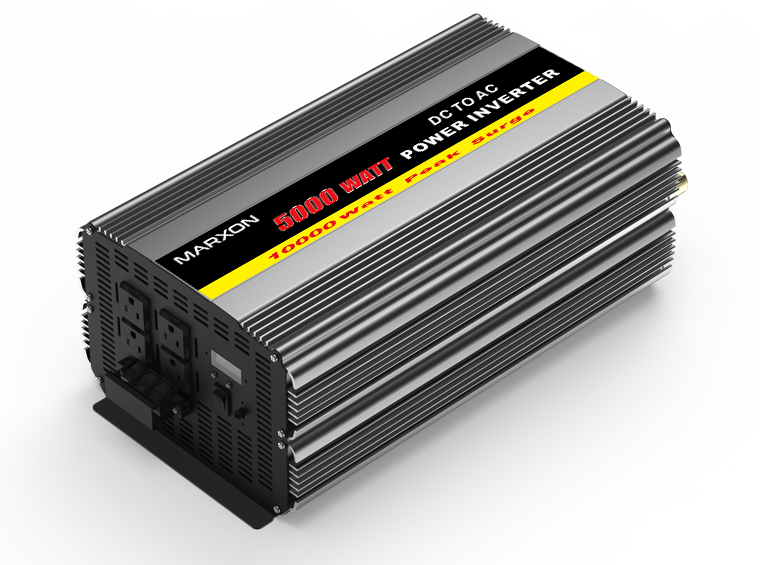

MSI-5000
Modified Sine Wave Inverter


Overload and over temperature shut down Low voltage and over voltage alarm;

Low voltage and over voltage cut off Input reverse protection;

Short circuit protection.


Product features
Features

Input Voltage 12V /24V/48V DC optional


Output Voltage 115V /230V AC optional


Portable power for AC products, AC outlets for connecting multiple loads.


High surge capacity for products that require more power to start.


High efficiency converts virtually all of the battery's power to AC.


Mounting brackets for convenient installation.



Heavy duty stud-connection mounting.



Product parameters
Parameters
SpecificationsMSI-3000MSI-5000MSI-6000
Continuous output power   (Watt)300050006000
Output peak power (Watt)60001000012000
Input voltage (DC)12V(11~15V) /   24V(21~30V) / 48V(42~60V)
Output voltage (AC)100~120V / 220~240V
Frequency50Hz / 60Hz ±3Hz
Output waveformModified sine wave
Efficiency85~90%
Low battery voltage alarm   (Volt)10.5± 0.5V / 21±1V /   42±2V
Low battery voltage shutdown   (Volt)10± 0.5V / 20±1V /   40±2V
Over temperature shutdown＜65℃
Available protectionOverload protection,   input reverse protection, short circuit protection
Cooling modeBy Fan
Replaceable fuse25A*1825A*3025A*36
AccessoryClamp(optional)
Dimension (L*W*H) mm381.5*206*92440*230*170440*230*170
Weight (kg)610.511.5
QTY (pcs)211
Carton measurement (mm)510*325*340543*316*258543*316*258
Container 20GP (pcs)448336336
Container 40GP (pcs)896672672
