Marxon

Specification	LC-2259
INPUT PROPERTY
AC input voltage range	90Vac~264Vac
AC input voltage rating	100~240Vac
AC input frequency	50/60Hz
AC input current	1.5A@120Vac
AC input power	180W
AC input static state current	0.1A
AC input wire	EP 2Pin Plug SPT-2 18AWG*2C L=1.8M
OUTPUT PROPERTY
Output voltage range	1~15.5Vdc
Output Current	10A@12Vdc/6Vd
Output power	150W
Soft start current	WET/AGM 3A@V<10V LiFePo4 1A@V<10V
Bulk charge voltage rating	12V WET 14.8 Vdc AGM 14.55 Vdc LIFE 14.4 Vdc
Battery repair voltage rating	12V 15.5Vdc
Float charge voltage rating	13.3Vdc
Light switching current	1A
Output wire	SPT-2 black 14AWG *2C L=1.3M with fast connector

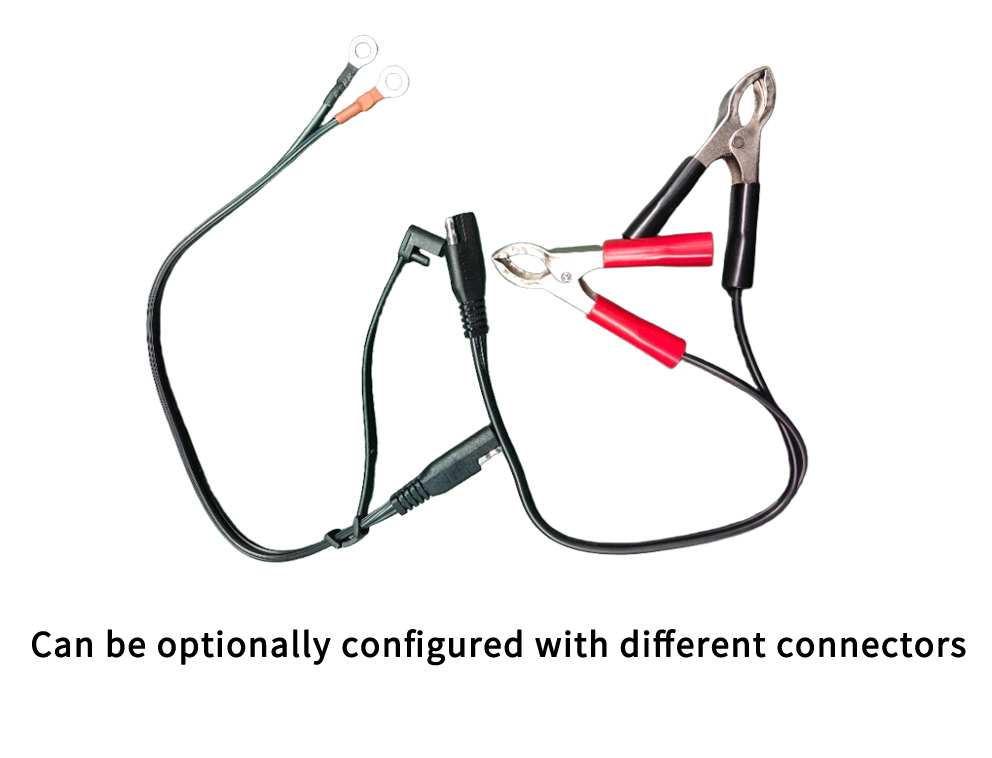

Accessories1	SPT-2 black 14AWG *2C L=0.5M M10 Terminal with circular ring
Accessories2	SPT-2 black 14AWG *2C L=0.5M with clamp (with 20A fuse)
SAFETY
Withstand Voltage (Hi-Pot)	3000Vac ≤10mA (60s)
Insulation Resistance	>100MΩ @500Vdc
Temperature Rise	<75℃
Safety Standard	ETL
EMI/RFI Standard	FCC Part 15 B
Energy Standard	DOE
IP Standard	IP65
