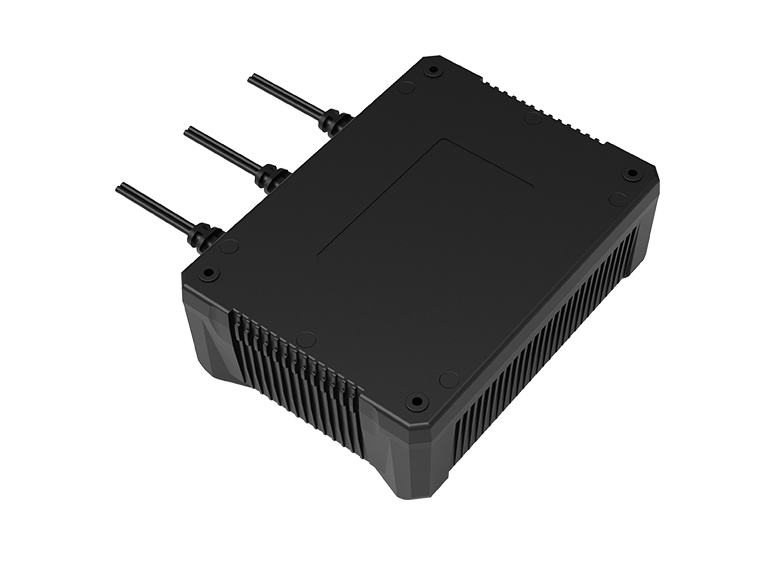

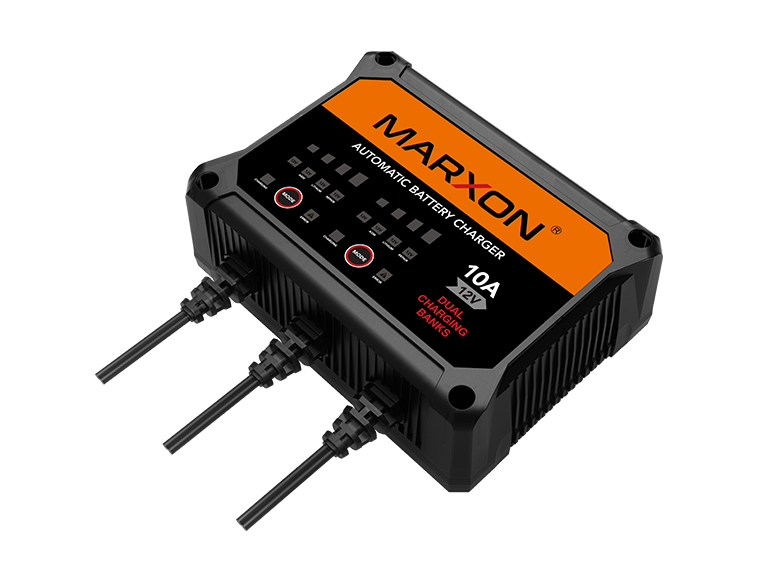

Marxon

Specification	LC-2183
INPUT PROPERTY
AC input voltage range	90Vac~264Vac
AC input voltage rating	100~240Vac
AC input frequency	50/60 Hz.
pfc	120V@>0.99 230V@>0.95
AC input current	3A@120Vac
AC input power	360W
AC input static state current	0.1A
AC input wire	EP 3Pin Plug SJTO-W 18AWG*3CL=l.8M
OUTPUT PROPERTY
Output voltage range	0-15.5V dc
Output Current	10A@12Vdc*2bank
Output power	300W
Soft start current	WET/AGM 3A@V<10V LiFePo4 1A@V<10V
Bulk charge voltage rating	12V WET 14.58Vdc AGM 14.82 Vdc LIFE 14.4 Vdc
Battery repair voltage rating	12V 15.5Vdc
Floatchargevoltage rating	13.3Vdc
Light s witching current	1A
Output wire	SPT-2 black 14AWG *2C L=1.3M with fast connector
Accessories 1	SPT-2 black 14AWG *2 C L=0.5M M10Terminal with circular ring
Accessories 2	SPT-2 black 14AWG *2C L=0.5M with clamp(with 20A fuse)
SAFETY
Withstand Voltage (Hi-Pot)	3000Vac≤100mA (60s)
Insulation Resistance	> 100MΩ @500Vdc
Temperature Rise	<75°C
Safety Standard	ETL/UL (ulr36)
EMI/RFI Standard	FCC Part 15B
Energy Standard	DOE
IP Standard	IP68
