JAM72S20-470/MR JAM72S30-550/MR

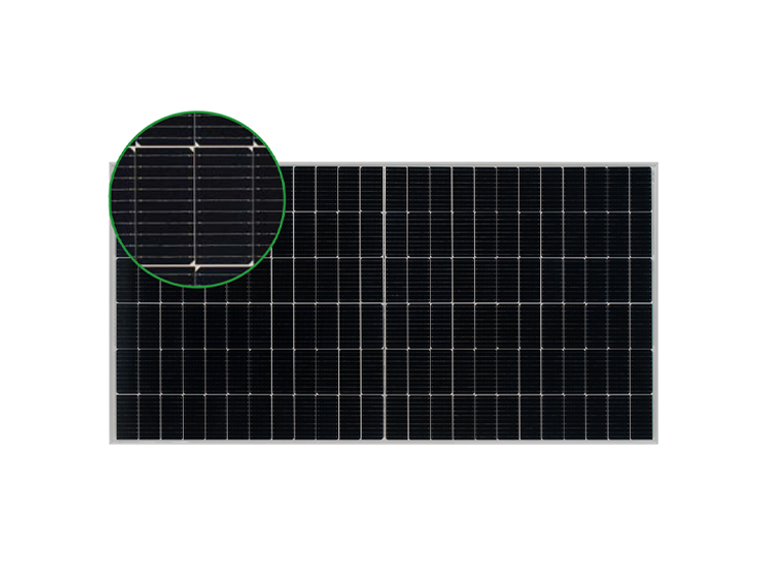

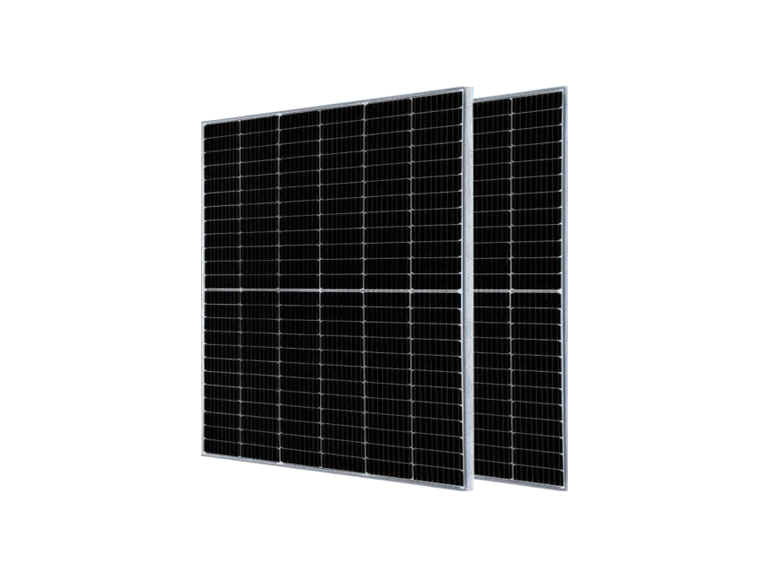

Solar Panel
Product parameters
Parameters
| type | JAM72S20-470/MR | JAM72S30-550/MR |
| Rated Max Power(W) | 470 | 550 |
| Open Circuit Voltage (V) | 50.31 | 49.9 |
| Max Power Voltage (V) | 42.69 | 41.96 |
| Short Circuit Current (A) | 11.53 | 14 |
| Max Power Current (A) | 11.01 | 13.11 |
| Module Efficiency (%) | 21.2 | 21.3 |
| Cell | Mono | Mono |
| Dimension (mm) | 2112*1052*35 | 2278*1134*30 |
| Weight (Kg) | 24.5 | 27.3 |
| Power Tolerance | 0-±5W | 0-±5W |
| Fire performance | UL Type 1 | UL Type 1 |
| Safety Class | Class II | Class II |
| Max System Voltage | 1000V/1500V DC | 1000V/1500V DC |
