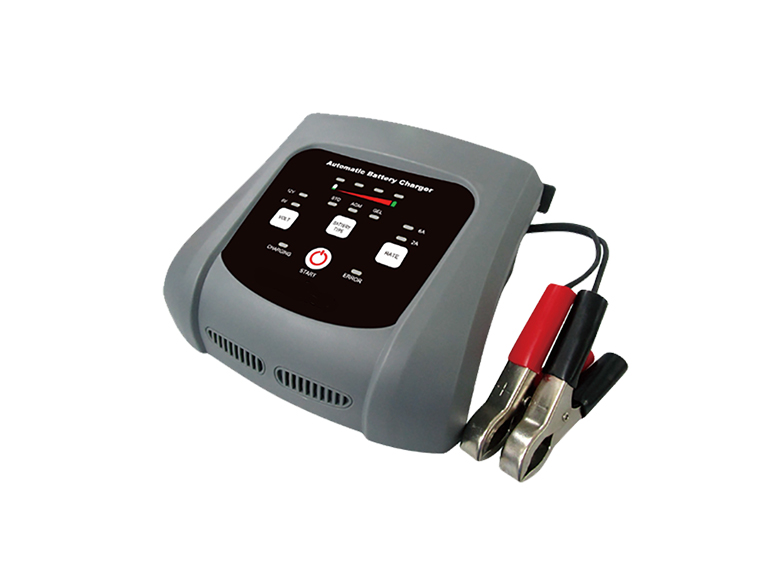

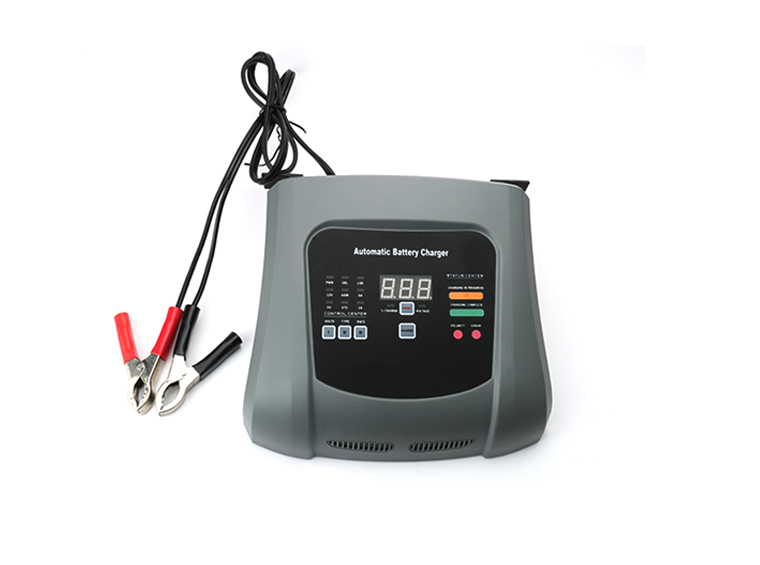

LC-2700
Smart Charger Series
Product features
Features

6V and 12V battery charger；


Advanced multi-stage charging process.


All battery types are suitable for charging.


The soft start mode is used for heavily drained batteries.


Enhanced maintenance (retention) mode, ideal for long-term storage.


Temperature compensation can charge more effectively.


Reverse polarity protection, battery failure detection.


Integrated & intelligent LED display.




Product parameters
Parameters
SpecificationsLC-2700LC-2701LC-2702LC-2703

6V Output12V Output6V Output12V Output6V Output12V Output6V Output12V Output
Output current2A/6A2A/6A/10A2A/6A/12A2A/10A/20A
Output power90W Max150W Max180W Max300W Max
Maximum charging voltageSTD 7.4V
    AGM 7.28V
    GEL 7.1V		STD 14.8V
    AGM14.55V
    GEL 14.2V		STD 7.4V
 AGM 7.28V
    GEL 7.1V		STD 14.8V
    AGM14.55V
    GEL 14.2V		STD 7.4V
    AGM 7.28V
    GEL 7.1V		STD 14.8V
    AGM14.55V
    GEL 14.2V		STD 8V
    AGM 7.35V
    GEL 7.1V		STD 16V
    AGM 14.7V
    GEL 14.2V
Battery repair voltage7.75V15.5V7.75V15.5V7.75V15.5V8V16V
Light switching current500mA500mA500mA1A
Input voltage90V AC~132V AC/185V AC~264V AC90V AC~132V AC/185V AC~264V AC
Input frequency50~60Hz50~60Hz
Operation temperature-20℃~45℃-20℃~45℃
Storage temperature-30℃~85℃-30℃~85℃
Working humidity8% ~ 90%8% ~ 90%
Storage humidity5% ~ 95%5% ~ 95%
Charging status displayGreen LED on =full   charge, Orange LED on = charging
    Red LED on= output short Red LED flash=output reverse
Protection functionOverload, short circuit,reversed polarity protection
QTY (pcs)1616
Carton Measurement (mm)455*375*425515*455*445
Container 20GP (pcs)1792
Container 40GP (pcs)3584
